Electrohydraulic Abs Cu

Lamborghini Murcielago

Find Your Part

Lamborghini Murcielago - ELECTROHYDRAULIC ABS CU

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

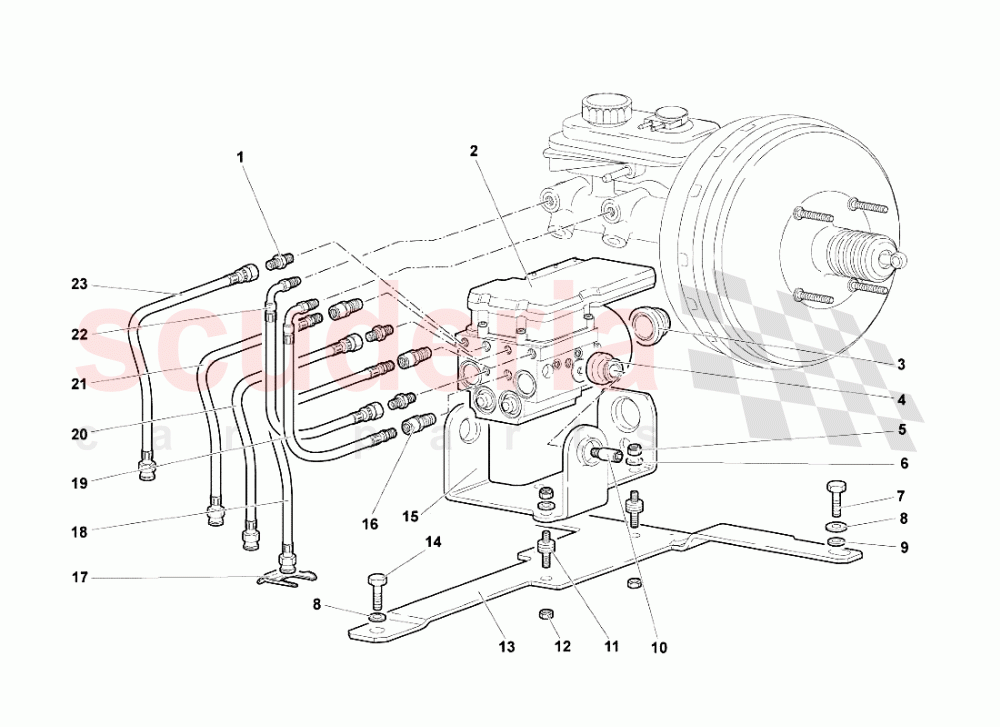

ELECTROHYDRAULIC ABS CU of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410614183
CONNECTOR 		$40.59 3
002 410614517
ABS CONTROL UNIT 		$5,869.10 1
003 410614128
FLEXIBLE SUPPORT 		$52.45 1
004 410614125
FLEXIBLE SUPPORT 		$13.12 2
005 N01100637
NUT M6
IN STOCK 		$0.30 (95.9% off) 3
006 WHT003213
WASHER 		$1.24 (82.7% off) 3
007 8700811
SCREW 		$0.44 2
008 N90179103
WASHER 18X8,4X2,5
IN STOCK 		$1.44 3
009 N0152785
WASHER
IN STOCK 		$0.44 2
010 410614187
JOURNAL 		$13.12 2
011 400972081A
FLEXIBLE SUPPORT 		$12.07 3
012 N01508213
HEXAGON COLLAR NUT
IN STOCK 		$0.19 3
013 413614138
SUPPORT 		$181.09 1
014 N10536103
SCREW M8X16
IN STOCK 		$1.75 (75.9% off) 1
015 410614143
BRACKET 		$107.64 1
016 410614185
CONNECTOR 		$41.03 1
017 400611949
PLATE 		$27.53 1
018 413611761
LEFT FRONT FLEXIBLE HOSE 		$157.34 1
019 413614739
HOSE
IN STOCK 		$165.76 (34.7% off) 1
020 413611762
RIGHT FRONT FLEXIBLE HOSE 		$107.04 1
021 413611763
LEFT REAR FLEXIBLE HOSE 		$156.11 1
022 413614740
HOSE 		$442.06 1
023 413611764A
RIGHT REAR FLEXIBLE HOSE 		$101.15 1
