FRONT BRAKES of Lamborghini Lamborghini Murcielago

View All

Lamborghini Murcielago - FRONT BRAKES

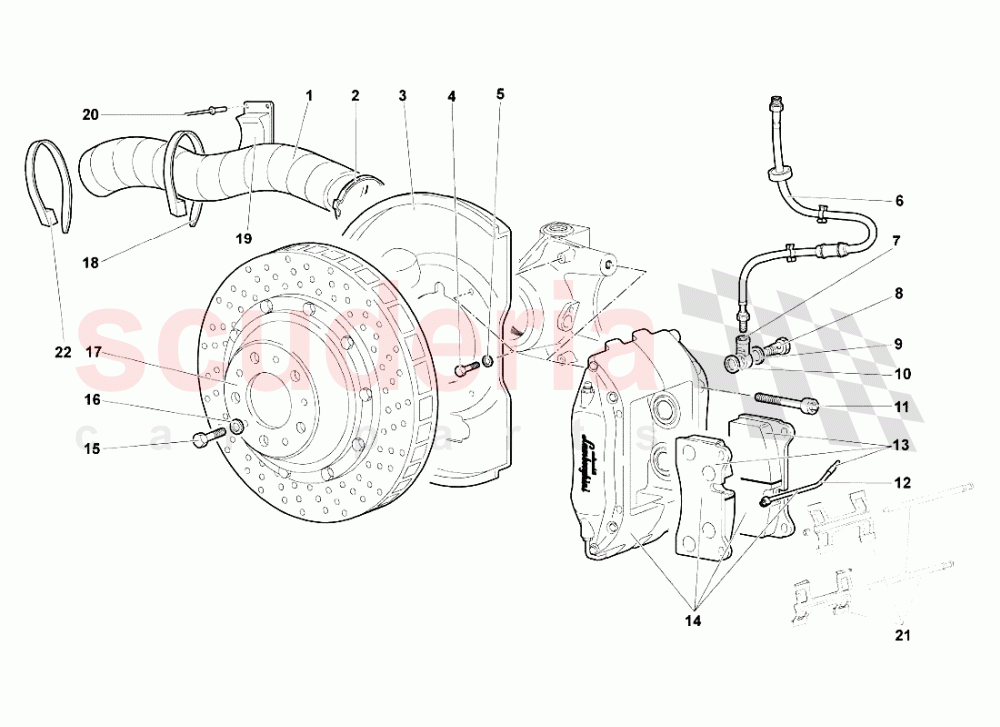

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	410611359	Front Brake Air Inlet Duct Pipe IN STOCK	410611359 Front Brake Air Inlet Duct Pipe IN STOCK	$282.36	2
002	8836001	CLAMP	8836001 CLAMP	$10.04	2
003	31017008	RH CONVEYOR	31017008 RH CONVEYOR	$654.55	1
003	31017009	LH CONVEYOR	31017009 LH CONVEYOR	$654.55	1
004	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 IN STOCK	$1.25 MSRP: ~~7.31~~ (82.9% off)	3
005	8410503	WASHER	8410503 WASHER	$0.18 MSRP: ~~7.37~~ (97.6% off)	3
006	410611775	HOSE	410611775 HOSE	$60.01	2
008	WHT003303	SCREW WITH HOLE	WHT003303 SCREW WITH HOLE	$12.12	2
009	WHT001191	WASHER IN STOCK	WHT001191 WASHER IN STOCK	$0.35 MSRP: ~~7.34~~ (95.2% off)	2
010	WHT001191	WASHER IN STOCK	WHT001191 WASHER IN STOCK	$0.35 MSRP: ~~7.34~~ (95.2% off)	2
011	WHT001330	SCREW	WHT001330 SCREW	$31.79	4
013	31016774	Brake Pad Set	31016774 Brake Pad Set	$1,140.34	1
014	410615106F	BLACK RH FRONT BRAKE CALIPER	410615106F BLACK RH FRONT BRAKE CALIPER	$2,175.98	1
014	410615105F	BLACK LH FRONT BRAKE CALIPER	410615105F BLACK LH FRONT BRAKE CALIPER	$2,175.98	1
014	410615106H	YELLOW RH FRONT BRAKE CALIPER	410615106H YELLOW RH FRONT BRAKE CALIPER	$2,175.98	1
014	410615105H	YELLOW LH FRONT BRAKE CALIPER	410615105H YELLOW LH FRONT BRAKE CALIPER	$2,175.98	1
014	410615105G	GREY LH FRONT BRAKE CALIPER	410615105G GREY LH FRONT BRAKE CALIPER	$2,175.98	1
014	410615106G	GREY RH FRONT BRAKE CALIPER	410615106G GREY RH FRONT BRAKE CALIPER	$2,175.98	1
015	N10572401	SCREW	N10572401 SCREW	$1.76 MSRP: ~~7.27~~ (75.8% off)	3
016	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.11	3
017	410615301	Brake Disc	410615301 Brake Disc (diameter 380 mm)	$2,094.00	2
018	410412177	CLAMP IN STOCK	410412177 CLAMP IN STOCK	$12.06	2
019	410805889	LEFT SUPPORT	410805889 LEFT SUPPORT	$505.45	1
019	410805890	RIGHT SUPPORT	410805890 RIGHT SUPPORT	$305.40	1
020	8953082	RIVET	8953082 RIVET	$0.15 MSRP: ~~7.37~~ (98% off)	8
021	400698135	JOURNAL AND CLIP	400698135 JOURNAL AND CLIP	$49.66	2
022	410616713	CLAMP IN STOCK	410616713 CLAMP IN STOCK	$3.95	2
