Front Brakes - Carboceramic

Lamborghini Murcielago

Find Your Part

Lamborghini Murcielago - FRONT BRAKES - CARBOCERAMIC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

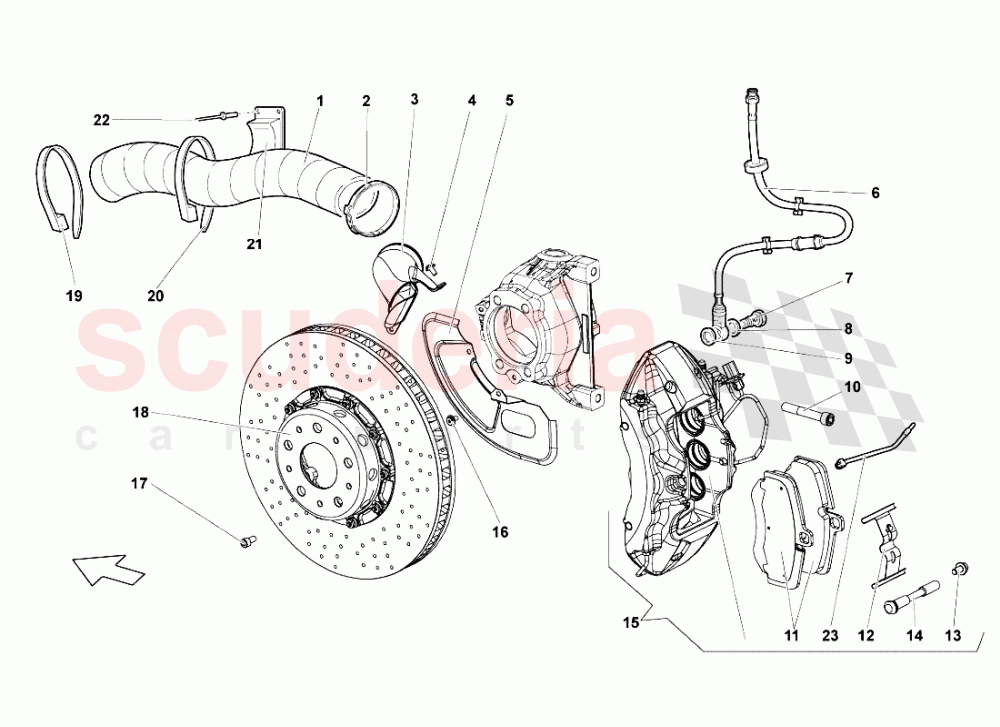

FRONT BRAKES - CARBOCERAMIC of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410611359
Front Brake Air Inlet Duct Pipe
IN STOCK 		$281.25 2
002 8836001
CLAMP 		$10.00 2
003 410615448
RH CONVEYOR 		$3,684.45 1
003 410615447
LH CONVEYOR 		$3,684.45 1
004 1Z0860505C
SCREW
IN STOCK 		$10.52 4
005 410407721A
LH PROTECTION 		$70.83 1
005 410407722A
RH PROTECTION 		$59.85 1
006 410611775
HOSE 		$59.78 2
007 WHT003303
SCREW WITH HOLE 		$12.07 2
008 WHT001191
WASHER
IN STOCK 		$0.35 (95.2% off) 2
009 WHT001191
WASHER
IN STOCK 		$0.35 (95.2% off) 2
010 WHT001330
SCREW 		$31.66 4
011 4S0698151AA
SET OF BRAKE PADS FOR DISC BRAKE
IN STOCK 		$771.83 1
015 410615105J
BLACK LH FRONT BRAKE CALIPER 		$3,716.50 1
015 410615106AB
YELLOW RH FRONT BRAKE CALIPER 		$3,716.50 1
015 410615106J
BLACK RH FRONT BRAKE CALIPER 		$3,716.50 1
015 410615105AB
YELLOW LH FRONT BRAKE CALIPER 		$3,716.50 1
015 410615105L
LH FRONT BRAKE CALIPER - SILVER 		$3,716.50 1
015 410615106L
RH FRONT BRAKE CALIPER - SILVER 		$3,716.50 1
016 1Z0860505C
SCREW
IN STOCK 		$10.52 4
017 N10572401
SCREW 		$1.75 (75.9% off) 6
018 410615301A
LH BRAKE DISC 		$7,870.23 1
018 410615302
RH BRAKE DISK 		$7,870.23 1
019 410616713
CLAMP 		$3.94 2
020 410412177
CLAMP
IN STOCK 		$12.01 2
021 410805890
RIGHT SUPPORT 		$304.20 1
021 410805889
LEFT SUPPORT 		$503.46 1
022 8953082
RIVET 		$0.15 (98% off) 8
023 400698317A
BRAKE PAD WEAR SENSOR 		- 2 Enquire
