Windows of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

Lamborghini Diablo VT (1993-1998) - Windows

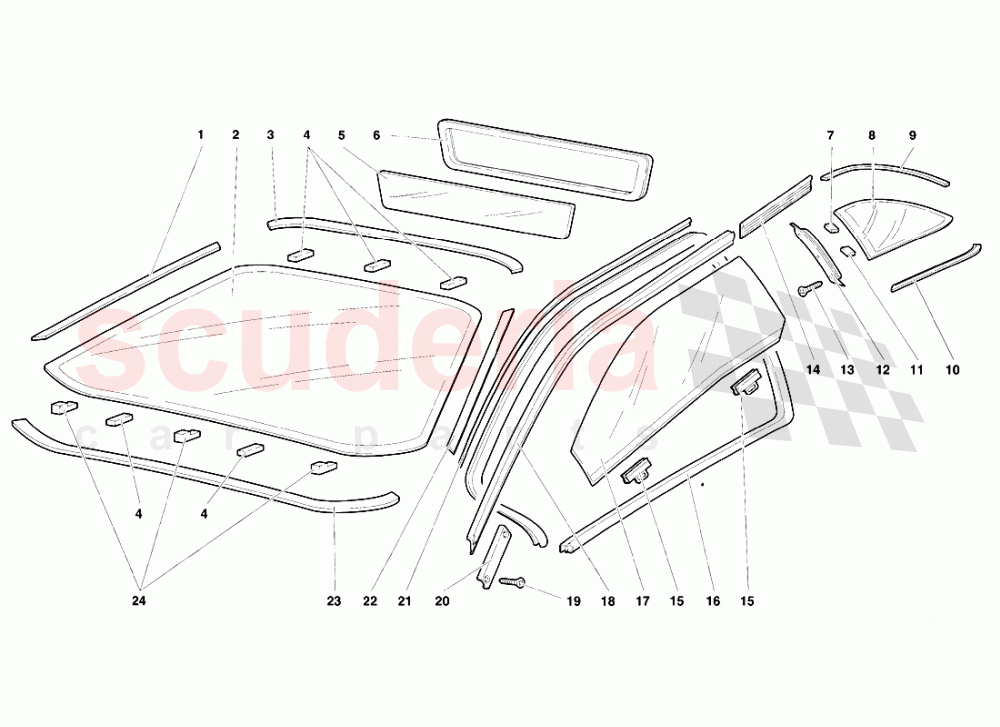

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9415204	RIGHT FRAME	9415204 RIGHT FRAME CORNICE DX	$386.16	1
002	9415107	FRONT GLASS	9415107 FRONT GLASS CRISTALLO ANTERIORE	$7,494.19	1
003	9415200	TOP FRAME	9415200 TOP FRAME CORNICE SUPERIORE	$492.43	1
004	410845235	WINDSHIELD SPACER IN STOCK	410845235 WINDSHIELD SPACER IN STOCK	$51.28	5
005	9418100	REAR GLASS	9418100 REAR GLASS CRISTALLO POSTERIORE	$789.99 MSRP: ~~889.00~~ (11.1% off)	1
006	9418103	GASKET	9418103 GASKET GUARNIZIONE	$561.65 MSRP: ~~611.00~~ (8.1% off)	1
007	400845633	QUARTER WINDOW GLASS SHIM	400845633 QUARTER WINDOW GLASS SHIM DISTANZIALE	$15.81	2
008	70004150	LEFT HAND GLASS	70004150 LEFT HAND GLASS CRISTALLO SX	$10,656.01	1
008	70004149	RIGHT HAND GLASS	70004149 RIGHT HAND GLASS CRISTALLO DX	$10,656.01	1
009	9417106	RIGHT FRAME	9417106 RIGHT FRAME CORNICE DX	$668.72	1
009	9417107	LEFT FRAME	9417107 LEFT FRAME CORNICE SX :	$341.75	1
010	9417102	RIGHT FRAME	9417102 RIGHT FRAME CORNICE DX	$258.33	1
010	9417103	LEFT FRAME	9417103 LEFT FRAME CORNICE SX	$219.14	1
011	410845626	SPACER	410845626 SPACER	$11.12	2
012	9417105	LEFT FRAME	9417105 LEFT FRAME CORNICE SX	$433.24	1
012	9417104	RIGHT FRAME	9417104 RIGHT FRAME CORNICE DX	$578.55	1
013	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) VITE IN STOCK	$1.24 MSRP: ~~7.18~~ (82.7% off)	6
014	9421733	GASKET	9421733 GASKET GUARNIZIONE	$38.21	2
015	9421607	BRACKET	9421607 BRACKET STAFFA	$55.09	4
016	72010206	LHS GASKET	72010206 LHS GASKET GUARNIZIONE	$817.65	1
016	72010205	RHS GASKET	72010205 RHS GASKET	$663.13	1
017	72004147	RIGHT DOOR GLASS	72004147 RIGHT DOOR GLASS	$4,607.18	1
017	72004148	LEFT DOOR GLASS	72004148 LEFT DOOR GLASS	$4,608.18	1
018	72001177	GASKET	72001177 GASKET	$504.56	2
019	8700211	BLACK SCREW	8700211 BLACK SCREW VITE	$0.07	4
020	9421718	PLATE	9421718 PLATE PIASTRINA	$31.63	2
021	9421708	RIGHT SUPPORT	9421708 RIGHT SUPPORT SUPPORTO DX	$358.68	1
021	9421709	LEFT SUPPORT	9421709 LEFT SUPPORT SUPPORTO SX	$348.47	1
022	9415205	LEFT FRAME	9415205 LEFT FRAME CORNICE SX	$488.41	1
023	9415201	BOTTOM FRAME	9415201 BOTTOM FRAME CORNICE INFERIORE	$439.95	1
024	9415101	SPACER	9415101 SPACER DISTANZIALE	$14.47	3
