Body Elements - Left Flank of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

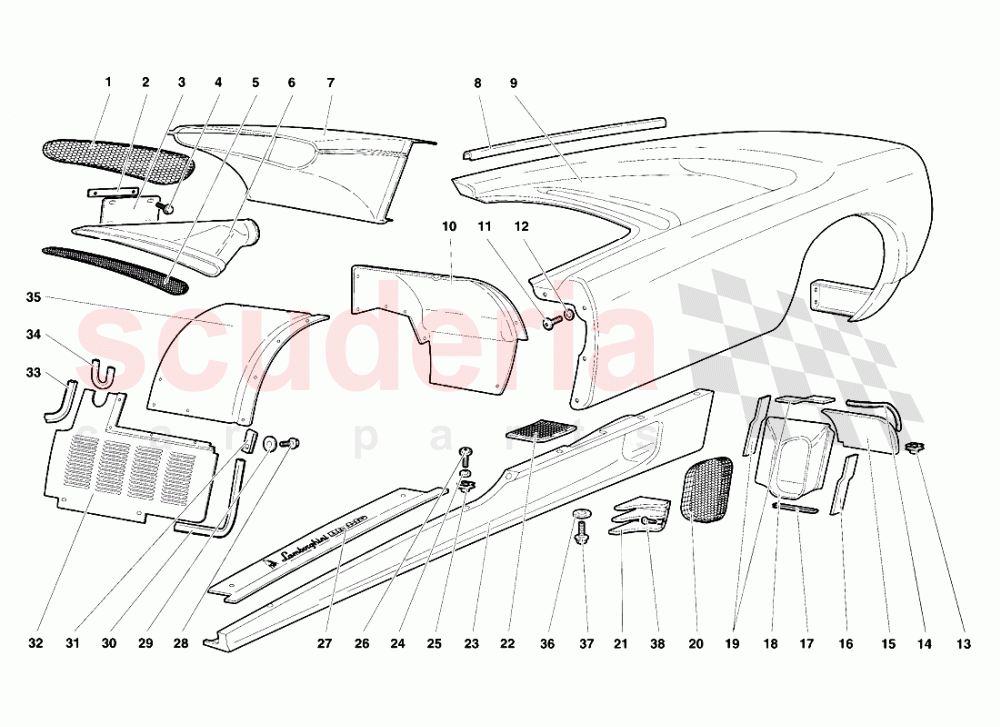

Lamborghini Diablo VT (1993-1998) - Body Elements - Left Flank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9430125	NET	9430125 NET RETE	$378.87	1
002	9453137	BRACKET	9453137 BRACKET STAFFA	$8.57 MSRP: ~~9.30~~ (7.8% off)	1
003	9453136	SUPPORT - SUPPORTO	9453136 SUPPORT - SUPPORTO O	$11.06 MSRP: ~~12.05~~ (8.2% off)	1
004	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.69	4
005	9430127	NET	9430127 NET RETE	$232.87	1
006	9453138	CONVEYOR	9453138 CONVEYOR CONVOGLIATORE	$431.07 MSRP: ~~467.00~~ (7.7% off)	1
007	9453101	CONVEYOR	9453101 CONVEYOR CONVOGLIATORE	$1,681.46	1
008	9490113	GASKET	9490113 GASKET GUARNIZIONE	$31.69 MSRP: ~~32.55~~ (2.6% off)	1
009	9410003	REAR MUDGUARD FEN.	9410003 REAR MUDGUARD FEN. PARAFANGO POST.	-	1	Enquire
010	9411506	REAR WHEELBOX	9411506 REAR WHEELBOX ELEMENTO PASSARUOTA POST.	$453.01	1
011	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.96	11
012	8400624	WASHER	8400624 WASHER RONDELLA	$4.46	11
013	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT MOLLETTA IN STOCK	$1.23	2
014	9490200	GASKET IN STOCK	9490200 GASKET GUARNIZIONE IN STOCK	$127.12	1
015	9453142	CONVEYOR	9453142 CONVEYOR CONVOGLIATORE	$101.12 MSRP: ~~113.50~~ (10.9% off)	1
016	9453126	GASKET	9453126 GASKET GUARNIZIONE	$3.75 MSRP: ~~4.15~~ (9.6% off)	1
017	9411512	GASKET	9411512 GASKET GUARNIZIONE	$63.38	1
018	9453141	CONVEYOR	9453141 CONVEYOR CONVOGLIATORE	$488.07	1
019	9453125	GASKET	9453125 GASKET GUARNIZIONE	$4.97 MSRP: ~~5.45~~ (8.8% off)	2
020	9430140	NET	9430140 NET RETE	$129.43 MSRP: ~~140.00~~ (7.6% off)	1
021	9430006	GRILLE	9430006 GRILLE GRIGLIA	$384.83 MSRP: ~~430.00~~ (10.5% off)	1
022	9430143	NET	9430143 NET RETE	$499.25	1
023	9410305	SIDE PANEL	9410305 SIDE PANEL BRANCARDO	$4,218.07 MSRP: ~~4,735.00~~ (10.9% off)	1
024	8400624	WASHER	8400624 WASHER RONDELLA	$4.46	3
025	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT MOLLETTA IN STOCK	$1.23	6
026	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.96	3
027	9458308	DOORSILL MOULDING	9458308 DOORSILL MOULDING BATTICALCAGNO	$3,518.92	1
028	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.78 MSRP: ~~7.37~~ (62.3% off)	22
029	N91109201	WASHER IN STOCK	N91109201 WASHER RONDELLA IN STOCK	$1.62 MSRP: ~~5.85~~ (72.3% off)	22
030	9411511	GASKET	9411511 GASKET GUARNIZIONE	$102.28	1
031	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$14.48	22
032	9411504	PROTECTION	9411504 PROTECTION PARASASSI	$643.68	1
033	9411512	GASKET	9411512 GASKET GUARNIZIONE	$63.38	1
034	9411513	GASKET	9411513 GASKET GUARNIZIONE	$170.56	1
035	9411505	REAR WHEELBOX	9411505 REAR WHEELBOX PASSARUOTA POST.	$469.19	1
036	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	3
037	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.69	8
038	N91049601	OVAL HEAD PANEL SCREW (COMBI) IN STOCK	N91049601 OVAL HEAD PANEL SCREW (COMBI) VITE IN STOCK	$0.95 MSRP: ~~7.31~~ (87% off)	8
