Lights

Lamborghini Diablo VT (1993-1998)

Find Your Part

Lamborghini Diablo VT (1993-1998) - Lights

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

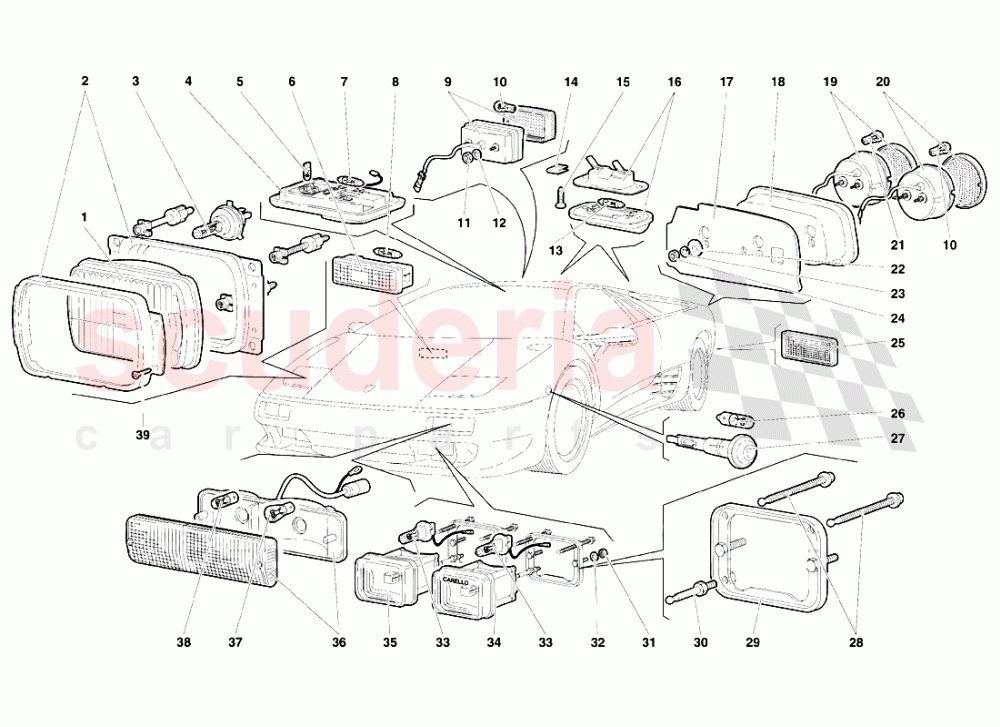

Lights of Lamborghini Lamborghini Diablo VT (1993-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 6331753
HEADLAMP
PROIETTORE 		$193.01 2
002 6331631
FRAME
CORNICE 		$91.78 2
003 6329694
BULB
LAMPADA 		$50.86 2
004 6334454
CEILING LAMP
PLAFONIERA 		$2,206.20 1
005 N0177522
LAMP 12V/3W
LAMPADA
IN STOCK 		$1.93 (72.8% off) 1
006 6329700
CEILING LAMP
PLAFONIERA BAULE 		- 1 Enquire
007 6617095
LAMP SV8,5-8 5W
LAMPADA 		$8.88 (1.3% off) 1
008 6329698
BULB
LAMPADA 		$7.21 (8.2% off) 1
009 9430136
GRILLE
RETRONEBBIA (SX) 		$355.16 1
009 63001281
REVERSE LAMP
FANALE RETROMARCIA (DX) 		$80.98 1
010 6617094
LAMP BA 15S 21W
LAMPADA 		$7.90 (2.5% off) 4
011 N0211963
NUT
DADO
IN STOCK 		$0.72 4
012 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System)
RONDELLA 		$7.06 4
013 6617095
LAMP SV8,5-8 5W
LAMPADA 		$8.88 (1.3% off) 2
014 WHT003424
CLIP
MOLLETTA
IN STOCK 		$0.83 (88.6% off) 4
015 8700445
SCREW
VITE 		$0.64 (91.3% off) 4
016 6328344
LICENCE PLATE LAMP
FANALE TARGA 		$42.27 (7.7% off) 2
017 9411301
LEFT LINING
ISOLAMENTO SX 		$320.55 1
017 9411300
RIGHT LINING
ISOLAMENTO DX 		$320.55 1
018 9444002
RIGHT FRAME
CORNICE DX 		- 1 Enquire
018 9444003
LEFT FRAME
CORNICE SX 		- 1 Enquire
019 6329828
TAIL LAMP / BRAKE L.
FANALE POST. (POSIZIONE E STOP) 		$132.03 2
020 6329829
TURNING LIGHT
INDICATORE Dl DIREZIONE 		$71.50 (7.7% off) 2
021 6617091
LAMP 15D 32220 5/21W
LAMPADA 		$10.84 (1.9% off) 2
022 WHT002961
WASHER
RONDELLA
IN STOCK 		$0.39 8
023 WHT002963
WASHER
RONDELLA
IN STOCK 		$0.12 (98.4% off) 8
024 N01100632
NUT M6
DADO 		$4.20 (42.7% off) 8
025 6319022
REFLEX/REFLECTOR
CATADIOTTRO 		$155.40 2
026 6329897
BULB
LAMPADA
IN STOCK 		$2.37 (7.1% off) 2
027 R1050004
KIT 2 DIRECTION INDICATORS
use (0R1050004 - sets of 2 pieces) 		$162.60 (10.7% off) 2
028 9444202
ADJ/SCREW
VITE REGISTRO 		$10.73 (8.3% off) 8
029 9444152
FRAME
CORNICE 		$127.14 4
030 9444201
ADJ/SCREW
VITE REGISTRO 		$10.26 (8.4% off) 4
031 N01118312
HEXAGON NUT, SELF-LOCKING
DADO
IN STOCK 		$2.07 8
032 N01152427
WASHER
RONDELLA
IN STOCK 		$0.28 8
033 6329695
BULB
LAMPADA 		$15.44 (8.1% off) 4
034 6329688
FOG LAMP
FENDINEBBIA 		$445.08 (8.2% off) 2
035 6329689
FLASH LIGHT
FLASH DIURNO 		$427.79 (8% off) 2
036 6331780
RIGHT FRONT LAMP
LUCE POSIZIONE - INDIC. DIREZ. DX 		$100.47 1
036 6331779
LEFT FRONT LAMP
LUCE POSIZIONE - INDIC. DIREZ. SX 		$100.47 1
037 6617094
LAMP BA 15S 21W
LAMPADA 		$7.90 (2.5% off) 2
038 6329696
BULB
LAMPADA 		$2.65 (10.2% off) 2
039 8700304
SCREW
VITE 		$0.06 (99.2% off) 8
