Climate Control 2 of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

Lamborghini Diablo VT (1993-1998) - Climate Control 2

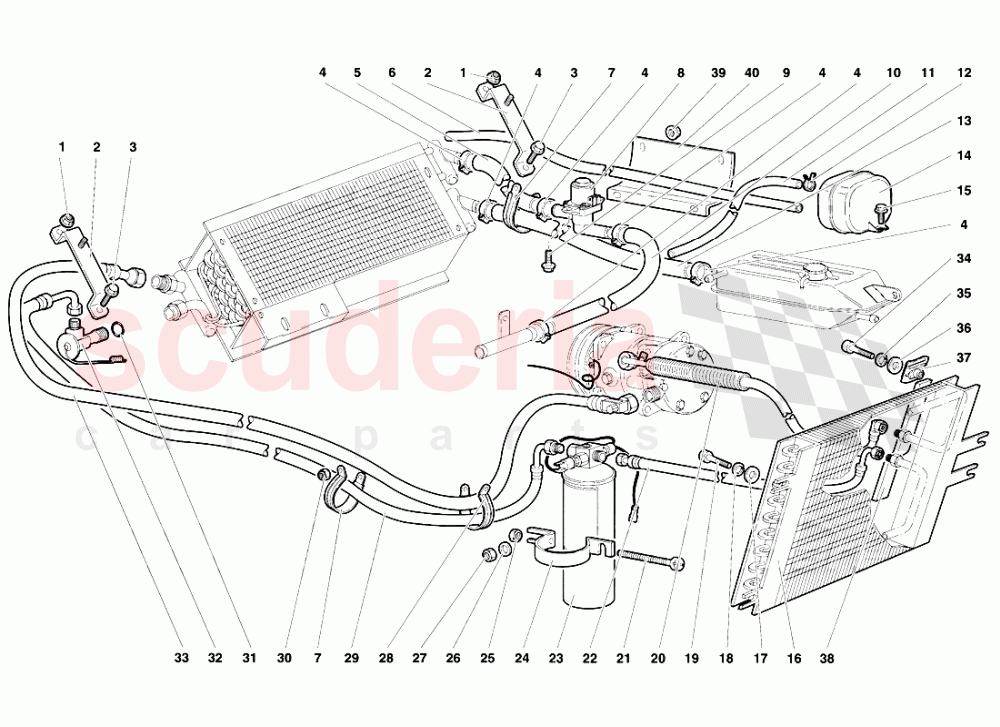

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	2
002	4131338	STRAP	4131338 STRAP FASCETTA	$38.51	2
003	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	2
004	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$40.96	6
005	4734346	PIPE	4734346 PIPE TUBO	$188.88	1
006	9414600	PIPE	9414600 PIPE TUBO	$36.08 MSRP: ~~39.15~~ (7.8% off)	1
007	8834003	CLAMP	8834003 CLAMP FASCETTA	$8.99	7
008	6031658	ELECTRO-VALVE	6031658 ELECTRO-VALVE ELETTROVALVOLA	$280.32	1
009	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	2
010	4734347	PIPE	4734347 PIPE TUBO	$184.86	1
011	6231411	PIPE	6231411 PIPE TUBO	$11.54 MSRP: ~~12.60~~ (8.4% off)	1
012	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.43	2
013	1733231	PIPE	1733231 PIPE TUBO	$196.33	1
014	1323406	VACUUM TANK	1323406 VACUUM TANK SERBATOIO A DEPRESSIONE	$42.25 MSRP: ~~45.90~~ (8% off)	1
015	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	2
016	4531594	A/C CONDENSER	4531594 A/C CONDENSER CONDENSATORE CONDIZIONATORE	$360.38	1
017	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	4
018	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	4
019	8700614	SCREW	8700614 SCREW VITE	$0.25	4
020	4530164	PIPE	4530164 PIPE TUBO	$723.43	1
021	8700542	SCREW	8700542 SCREW VITE	$0.63 MSRP: ~~7.26~~ (91.3% off)	1
022	4530165	PIPE	4530165 PIPE TUBO	$226.59	1
023	4535411	FILTER	4535411 FILTER FILTRO DEIDRATORE	$501.46	1
024	4531395	STRAP	4531395 STRAP FASCETTA	$8.32 MSRP: ~~9.30~~ (10.5% off)	1
025	8200580	NUT	8200580 NUT DADO	-	1	Enquire
026	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	2
027	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	2
028	8834401	CLAMP	8834401 CLAMP FASCETTA	$12.06 MSRP: ~~13.50~~ (10.7% off)	1
029	4530166	PIPE	4530166 PIPE TUBO	$379.21	1
030	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	7
031	8601103	SEAL	8601103 SEAL ANELLOTENUTA	$9.80	1
032	4530261	VALVE	4530261 VALVE VALVOLA Dl ESPANSIONE	$298.52	1
033	4530167	PIPE	4530167 PIPE TUBO	$352.68	1
034	8700614	SCREW	8700614 SCREW VITE	$0.25	2
035	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	2
036	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	2
037	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT MOLLETTA IN STOCK	$1.23	2
038	4531592	GASKET	4531592 GASKET GUARNIZIONE	$8.65 MSRP: ~~9.45~~ (8.5% off)	2
039	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.19	4
040	4133297	SHIELD	4133297 SHIELD PROTEZIONE	-	1	Enquire
