Engine Oil Breathing System of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

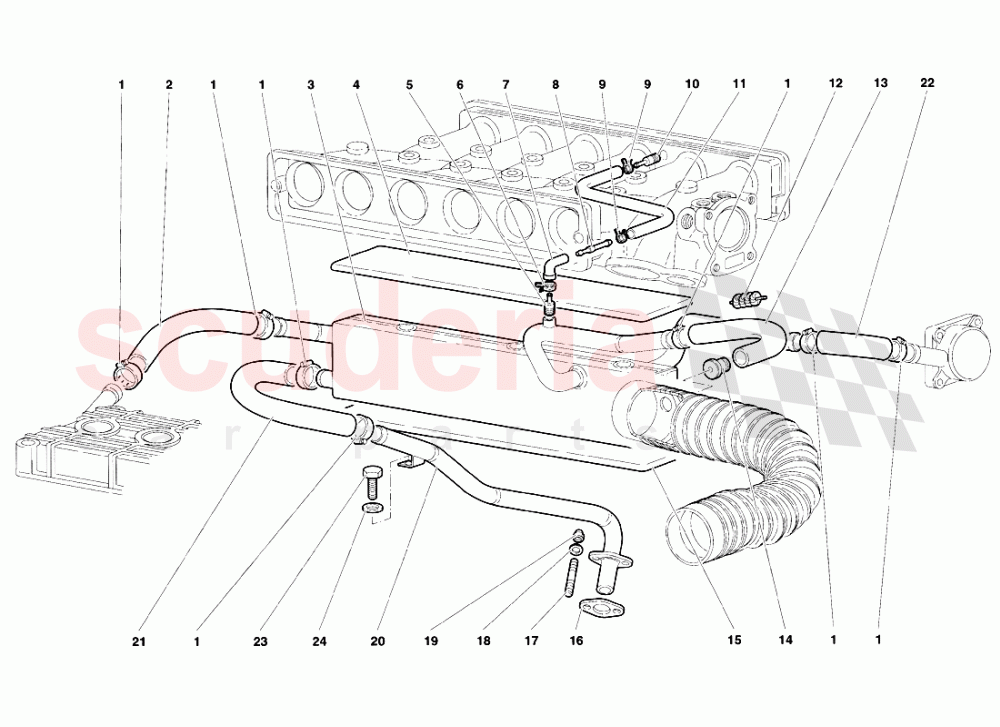

Lamborghini Diablo VT (1993-1998) - Engine Oil Breathing System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$40.99	7
002	1533391	PIPE	1533391 PIPE TUBO	$108.73	1
003	1533385	TANK	1533385 TANK SERBATOIO	$540.92	1
004	1533448	INSULATOR	1533448 INSULATOR ISOLANTE	$33.57 MSRP: ~~36.45~~ (7.9% off)	1
005	1333446	CONNECTION	1333446 CONNECTION RACCORDO	$64.25	1
006	8830122	CLAMP	8830122 CLAMP FASCETTA	$0.32 MSRP: ~~7.33~~ (95.6% off)	1
007	7L131756	CONNECTOR	7L131756 CONNECTOR RACCORDO 90 -	$26.57	1
008	1329319	ADAPTER	1329319 ADAPTER RACCORDO	$1.09 MSRP: ~~7.18~~ (84.8% off)	1
009	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.43	2
010	1333446	CONNECTION	1333446 CONNECTION RACCORDO	$64.25	1
011	1333445	PIPE	1333445 PIPE TUBO	$14.40	1
012	1532768	FLAME TRAP	1532768 FLAME TRAP SPEGNIFIAMMA	$22.79 MSRP: ~~24.80~~ (8.1% off)	1
013	1533775	PIPE	1533775 PIPE TUBO	$113.44	1
014	1333773	CONNECTION	1333773 CONNECTION RACCORDO	$22.43 MSRP: ~~24.40~~ (8.1% off)	1
015	1533447	INSULATOR	1533447 INSULATOR ISOLANTE	$72.99 MSRP: ~~79.30~~ (8% off)	1
016	1831058	GASKET	1831058 GASKET GUARNIZIONE	$21.46	1
017	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$22.88 MSRP: ~~25.65~~ (10.8% off)	2
018	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
019	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	2
020	1532643	PIPE	1532643 PIPE TUBO	$68.53 MSRP: ~~74.40~~ (7.9% off)	1
021	1532654	PIPE	1532654 PIPE TUBO	$74.97	1
022	1533390	PIPE	1533390 PIPE TUBO	$144.66	1
023	8100601	SCREW	8100601 SCREW VITE	$0.25	1
024	WHT003053	WASHER	WHT003053 WASHER RONDELLA	$3.07	1
