Water Cooling System of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

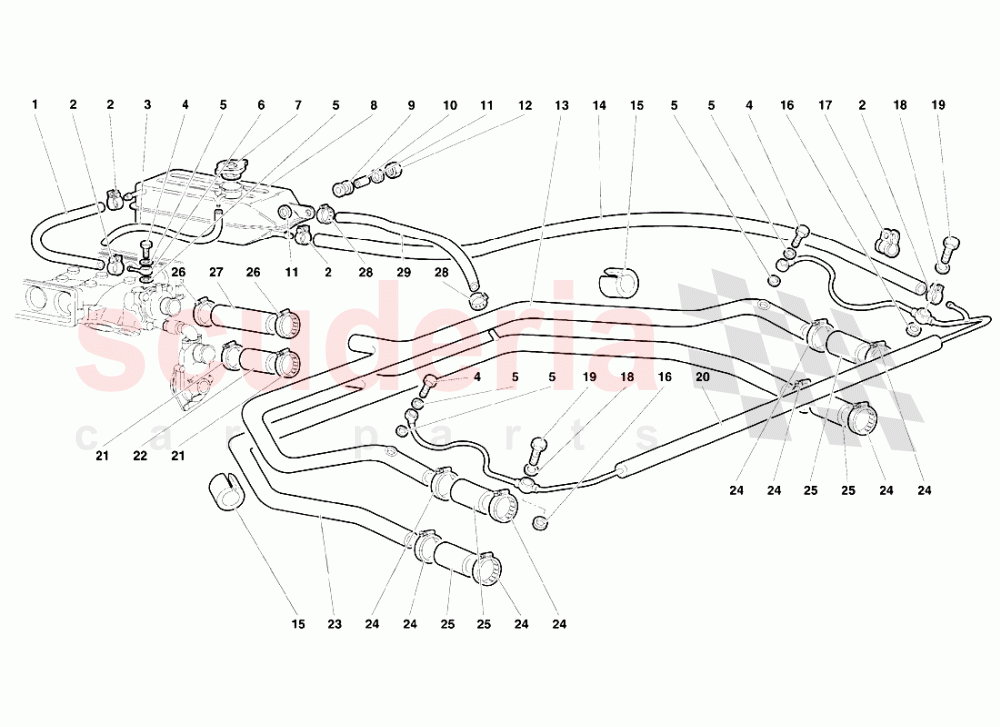

Lamborghini Diablo VT (1993-1998) - Water Cooling System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1733713	PIPE	1733713 PIPE TUBO	-	1	Enquire
002	8830817	CLAMP	8830817 CLAMP FASCETTA	$2.04	4
003	1731993	PIPE IN STOCK	1731993 PIPE TUBO IN STOCK	$12.46 MSRP: ~~13.50~~ (7.7% off)	1
004	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	$26.11	3
005	8400818	WASHER	8400818 WASHER RONDELLA	-	6	Enquire
006	1733714	CONNECTION	1733714 CONNECTION RACCORDO	$25.91 MSRP: ~~28.15~~ (8% off)	1
007	1734185	TANK CAP	1734185 TANK CAP TAPPO SERBATOIO	$129.10	1
008	1733712	RESERVOIR	1733712 RESERVOIR SERBATOIO	$1,488.37 MSRP: ~~1,665.00~~ (10.6% off)	1
009	8610903	RUBBER BUSHING	8610903 RUBBER BUSHING BOCCOLA GOMMA	$15.31	1
010	8800602	BUSHING	8800602 BUSHING BOCCOLA	$30.01 MSRP: ~~33.60~~ (10.7% off)	1
011	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	2
012	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	1
013	1732809	PIPE	1732809 PIPE TUBO	$681.13	1
014	1733426	PIPE	1733426 PIPE TUBO	$18.00	1
015	7L121199	PROTECTION	7L121199 PROTECTION PROTEZIONE IN GOMMA	$18.76	4
016	1733425	WASHER	1733425 WASHER RONDELLA	$22.05	2
017	8831515	CLAMP	8831515 CLAMP FASCETTA	$9.31	1
018	8401022	WASHER	8401022 WASHER RONDELLA	$0.25 MSRP: ~~7.35~~ (96.6% off)	2
019	1733424	VENT SCREW	1733424 VENT SCREW VITE Dl SFIATO	$113.88	2
020	1733417	VENT PIPE	1733417 VENT PIPE TUBO Dl SFIATO	$4,897.77	1
021	8834501	STRAP	8834501 STRAP FASCETTA	-	2	Enquire
022	7M121057	PIPE	7M121057 PIPE	$92.85	1
023	1730569	PIPE	1730569 PIPE TUBO	$871.10	1
024	8833001	STRAP	8833001 STRAP FASCETTA	$9.37 MSRP: ~~10.40~~ (9.9% off)	8
025	1730574	PIPE	1730574 PIPE TUBO	-	4	Enquire
026	N0245022	CLAMP	N0245022 CLAMP FASCETTA	$5.26	2
027	1732812	PIPE	1732812 PIPE TUBO	$115.23	1
028	8831524	STRAP	8831524 STRAP FASCETTA	-	2	Enquire
029	1731848	PIPE	1731848 PIPE TUBO	$127.61	1
