Oil Sump of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

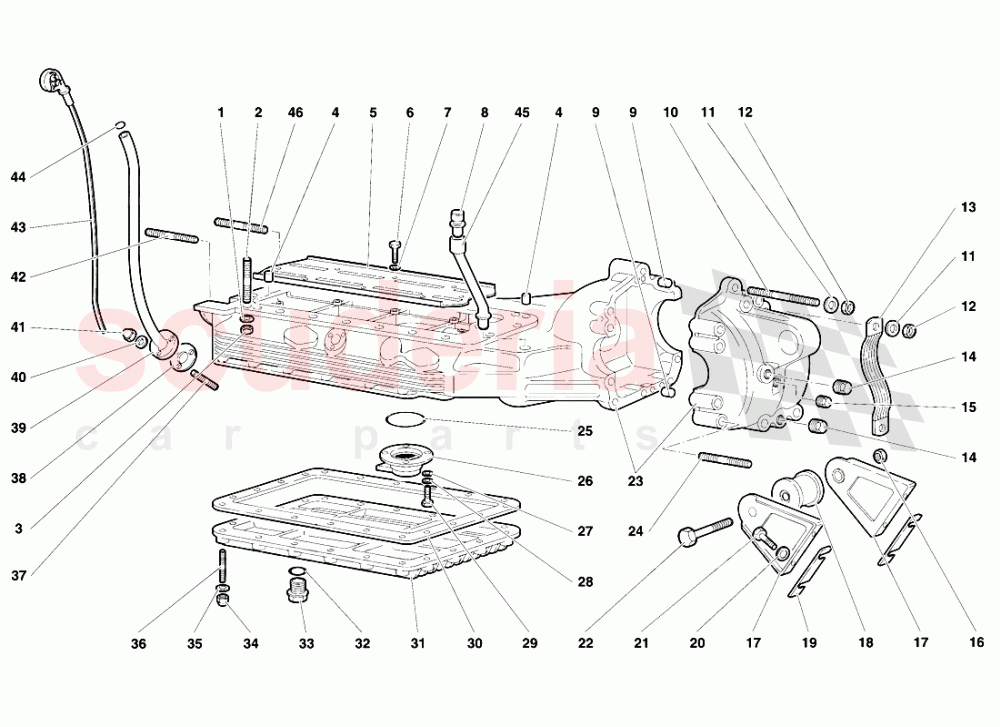

Lamborghini Diablo VT (1993-1998) - Oil Sump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$23.22 MSRP: ~~64.00~~ (63.7% off)	18
002	8300806	STUD	8300806 STUD PRIGIONIERO 70 MM	$5.20 MSRP: ~~5.70~~ (8.8% off)	6
002	WHT003031	STUD BOLT	WHT003031 STUD BOLT PRIGIONIERO28MM	$9.08	8
002	8300897	STUD	8300897 STUD PRIGIONIERO106MM	$13.88 MSRP: ~~15.50~~ (10.5% off)	4
003	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.94	18
004	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
005	1827775	PLATE	1827775 PLATE PARATIA ANTISBATTIMENTO	$79.58 MSRP: ~~86.40~~ (7.9% off)	1
006	8100604	SCREW	8100604 SCREW VITE	$2.38	8
007	WHT003053	WASHER	WHT003053 WASHER RONDELLA	$3.07	8
008	B9507141	OIL BREATHER PIPE	B9507141 OIL BREATHER PIPE SFIATO OLIO DIFFERENZIALE	$64.91	1
009	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
010	8301002	STUD	8301002 STUD PRIGIONIERO	$30.77	1
011	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.83 MSRP: ~~7.28~~ (74.9% off)	10
012	N10155210	NUT IN STOCK	N10155210 NUT DADO IN STOCK	$2.01 MSRP: ~~7.24~~ (72.2% off)	10
013	1604328	GROUND CABLE	1604328 GROUND CABLE CAVOMASSA	-	2	Enquire
014	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	$34.92	2
015	8931802	MAGNETIC PLUG	8931802 MAGNETIC PLUG TAPPO	$202.72	1
016	8201416	NUT	8201416 NUT DADO	$1.62	1
017	4126765	BRACKET	4126765 BRACKET STAFFA	$255.21 MSRP: ~~287.00~~ (11.1% off)	2
018	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$187.04 MSRP: ~~190.50~~ (1.8% off)	1
019	4126766	SPACER	4126766 SPACER SPESSORE Dl REGISTRO	-	1	Enquire
020	8410801	WASHER	8410801 WASHER RONDELLA	$0.58	4
021	8100803	SCREW M8X1,25X25	8100803 SCREW M8X1,25X25 VITE	$0.47 MSRP: ~~7.31~~ (93.6% off)	4
022	8101430	SCREW	8101430 SCREW VITE	$3.29 MSRP: ~~3.65~~ (9.9% off)	1
023	453400100	OIL SUMP	453400100 OIL SUMP COPPAOLIO	-	1	Enquire
024	8301033	STUD	8301033 STUD PRIGIONIERO	$34.02	9
025	WHT002222	SEAL RING	WHT002222 SEAL RING	$12.33	1
026	1832017	FLANGE	1832017 FLANGE FLANGIA	$304.85 MSRP: ~~330.00~~ (7.6% off)	1
027	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	4
028	WHT003053	WASHER	WHT003053 WASHER RONDELLA	$3.07	4
029	8100604	SCREW	8100604 SCREW VITE	$2.38	4
030	1826521	GASKET	1826521 GASKET GUARNIZIONE	$116.04	1
031	1831852	LOWER COVER	1831852 LOWER COVER COPERCHIO INFERIORE	$515.96	1
032	8602002	SEAL IN STOCK	8602002 SEAL ANELLO TENUTA IN STOCK	$23.73	1
033	8932206	DRAIN PLUG	8932206 DRAIN PLUG TAPPO Dl SCARICO	-	1	Enquire
034	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	20
035	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.76	20
036	8300615	STUD	8300615 STUD PRIGIONIERO	$18.83 MSRP: ~~21.05~~ (10.5% off)	20
037	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	$8.02	3
038	1830006	GASKET	1830006 GASKET GUARNIZIONE	$7.83	1
039	1831138	PIPE	1831138 PIPE TUBO PORTA ASTA	$579.68	1
040	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	3
041	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	3
042	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$5.66	2
043	1831041	OIL LEVEL ROD	1831041 OIL LEVEL ROD ASTA LIVELLO OLIO	$322.66	1
044	WHT003057	SEAL RING IN STOCK	WHT003057 SEAL RING ANELLO TENUTA IN STOCK	$2.07 MSRP: ~~7.29~~ (71.6% off)	1
045	2334402	PIPE	2334402 PIPE TUBO	$254.03	1
046	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.76	1
