Intake Manifold of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

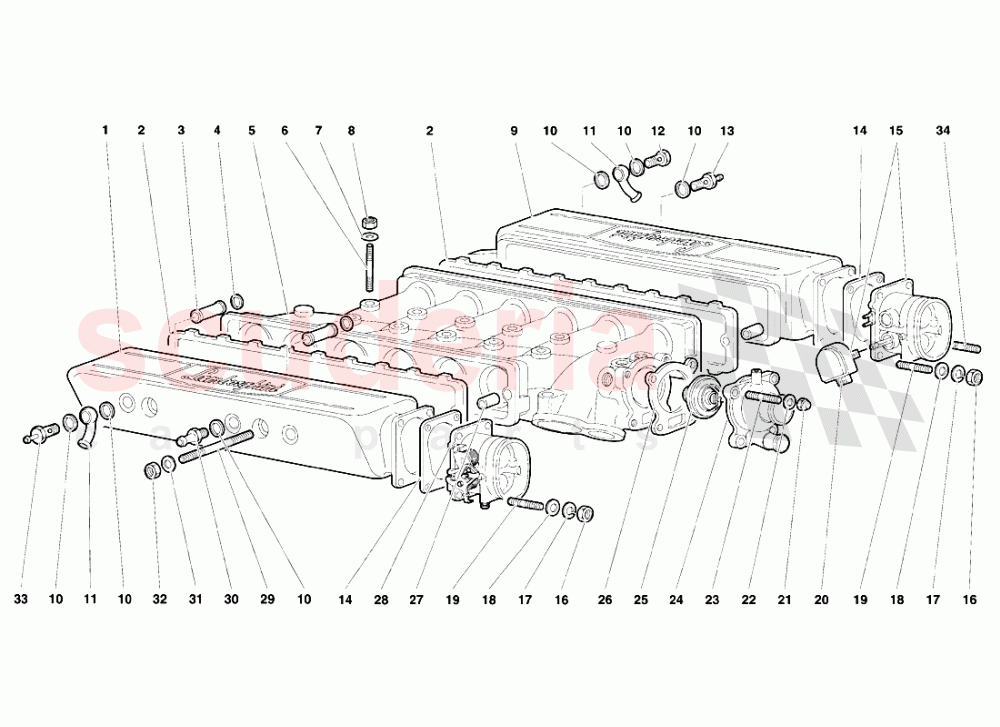

Lamborghini Diablo VT (1993-1998) - Intake Manifold

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1326315	COVER	1326315 COVER COPERCHIO DESTRO	-	1	Enquire
002	1323717	Gasket	1323717 Gasket GUARNIZIONE	$53.87	2
003	1322163	SPACER	1322163 SPACER DISTANZIALE	-	4	Enquire
004	8401025	WASHER	8401025 WASHER RONDELLA	$30.91	4
005	1332813	INLET MANIFOLD	1332813 INLET MANIFOLD COLLETTORE ASPIRAZIONE	-	1	Enquire
006	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$22.84 MSRP: ~~25.65~~ (11% off)	10
007	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	6
008	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.84	10
009	1326316	COVER	1326316 COVER COPERCHIO SINISTRO	$1,510.52	1
010	3101513	WASHER IN STOCK	3101513 WASHER RONDELLA IN STOCK	$1.34 MSRP: ~~7.32~~ (81.7% off)	6
011	1328002	CONNECTION	1328002 CONNECTION RACCORDO	$54.51	2
012	3101941	SCREW	3101941 SCREW RACCORDO	$4.36	1
013	1330455	CONNECTION	1330455 CONNECTION RACCORDO	$30.75 MSRP: ~~33.45~~ (8.1% off)	1
014	1326311	GASKET	1326311 GASKET GUARNIZIONE	$68.03	2
015	1326293	THROTTLE HOLDER	1326293 THROTTLE HOLDER CORPO FARF. SX CON POTENZIOMET.	$1,318.04 MSRP: ~~1,485.00~~ (11.2% off)	1
016	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	8
017	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	8
018	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	8
019	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.69	7
020	1327641	POTENTIOMETER	1327641 POTENTIOMETER POTENZIOMETRO	$158.87 MSRP: ~~173.50~~ (8.4% off)	1
021	8200816	NUT	8200816 NUT DADO	$4.77	4
022	7M109203	Guide IN STOCK	7M109203 Guide GUIDA IN STOCK	$1,901.35	1
022	8410803	WASHER	8410803 WASHER RONDELLA	$0.07	4
023	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
023	8300803	STUD BOLT	8300803 STUD BOLT PRIGIONIERO	$12.57	4
024	1732806	COVER	1732806 COVER COPERCHIO	$996.88 MSRP: ~~1,125.00~~ (11.4% off)	1
025	17006576	THERMOSTAT	17006576 THERMOSTAT TERMOSTATO ACQUA	$503.63	1
026	1732808	GASKET	1732808 GASKET GUARNIZIONE	$27.23	1
027	WHT003577	DOWEL	WHT003577 DOWEL GRAND	$1.67 MSRP: ~~7.03~~ (76.2% off)	4
028	1326181	THROTTLE HOLDER	1326181 THROTTLE HOLDER CORPO FARFALLATO DESTRO	$1,211.39	1
029	8301030	STUD	8301030 STUD PRIGIONIERO	$32.46	4
030	1330882	CONNECTION	1330882 CONNECTION RACCORDO	-	1	Enquire
031	8401022	WASHER	8401022 WASHER RONDELLA	$0.25 MSRP: ~~7.35~~ (96.6% off)	4
032	8201006	NUT	8201006 NUT DADO	$7.03	4
033	1328722	CONNECTION	1328722 CONNECTION RACCORDO	$150.23	1
034	8300913	STUD	8300913 STUD PRIGIONIERO	$44.04	1
