Timing System 1 of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

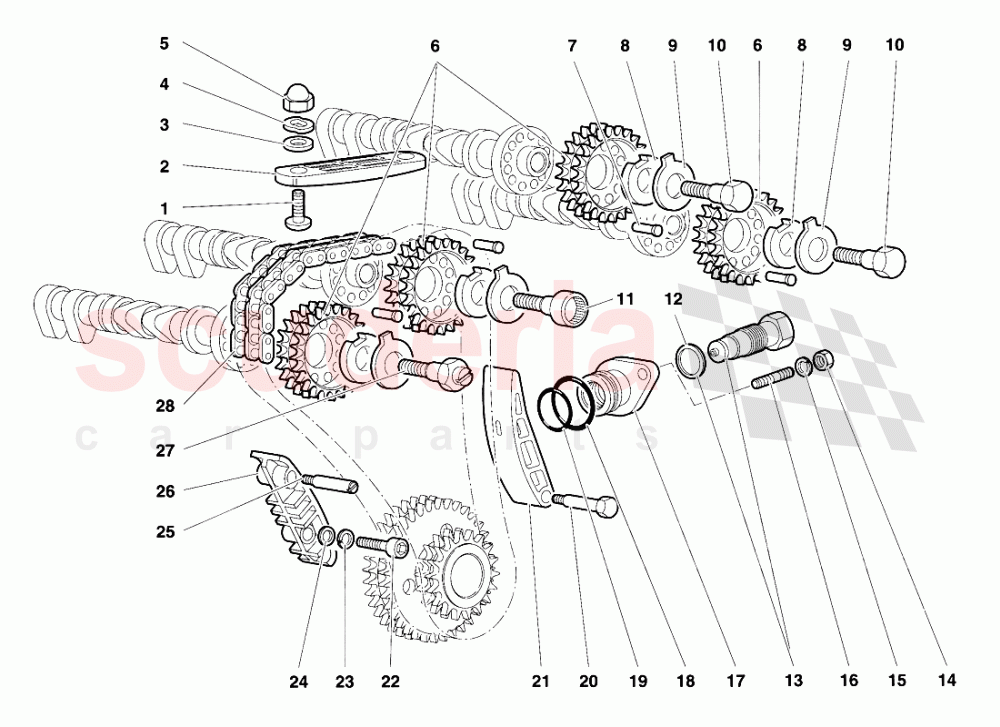

Lamborghini Diablo VT (1993-1998) - Timing System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1132953	SCREW	1132953 SCREW VITE	$100.72	4
002	7M109513	SHOE	7M109513 SHOE GUIDA	$723.52	2
003	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.83 MSRP: ~~7.31~~ (88.6% off)	4
004	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	4
005	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	4
006	1232198	GEAR	1232198 GEAR INGRANAGGIO	$549.91 MSRP: ~~596.00~~ (7.7% off)	4
007	1201964	DOWEL	1201964 DOWEL GRANO	$77.36	4
008	1219761	WASHER	1219761 WASHER RONDELLA	$86.60 MSRP: ~~97.00~~ (10.7% off)	4
009	1219762	LOCKPLATE	1219762 LOCKPLATE PIASTRINA SICUREZZA	$41.05 MSRP: ~~44.35~~ (7.4% off)	4
010	1220990	SCREW	1220990 SCREW VITE	$32.76	2
011	1233314	SCREW	1233314 SCREW VITE	$848.58	1
012	WHT003048	WASHER 22 X 28 X 1.5 IN STOCK	WHT003048 WASHER 22 X 28 X 1.5 RONDELLA IN STOCK	$3.42	2
013	7M109255	Chain Tightener IN STOCK	7M109255 Chain Tightener TENDICATENA IN STOCK	$799.98	2
014	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	4
015	WHT003213	WASHER	WHT003213 WASHER RONDELLA	$1.25 MSRP: ~~7.15~~ (82.5% off)	4
016	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$22.97 MSRP: ~~25.65~~ (10.4% off)	4
017	1132218	FLANGE	1132218 FLANGE FLANGIA	$398.24 MSRP: ~~431.00~~ (7.6% off)	2
018	8603702	SEAL IN STOCK	8603702 SEAL ANELLO TENUTA IN STOCK	$0.78 MSRP: ~~7.35~~ (89.4% off)	2
019	8602602	SEAL IN STOCK	8602602 SEAL IN STOCK	$0.30 MSRP: ~~7.35~~ (95.9% off)	2
020	1232851	PIN	1232851 PIN PERNO	-	2	Enquire
021	7M109508	Shoe IN STOCK	7M109508 Shoe GUIDA IN STOCK	$222.59	2
022	8700848	SCREW	8700848 SCREW VITE	-	2	Enquire
023	8410820	WASHER	8410820 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	2
024	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	2
025	1232837	PIN	1232837 PIN PERNO	-	2	Enquire
026	7M109469	SHOE	7M109469 SHOE GUIDA	$46.90	2
027	1233315	SCREW	1233315 SCREW VITE	$113.35 MSRP: ~~123.00~~ (7.8% off)	1
028	7M109231C	UPPER TIMING CHAIN IN STOCK	7M109231C UPPER TIMING CHAIN CATENA SUPERIORE DISTRIBUZIONE IN STOCK	$478.98	2
