Crankgears of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

Lamborghini Diablo VT (1993-1998) - Crankgears

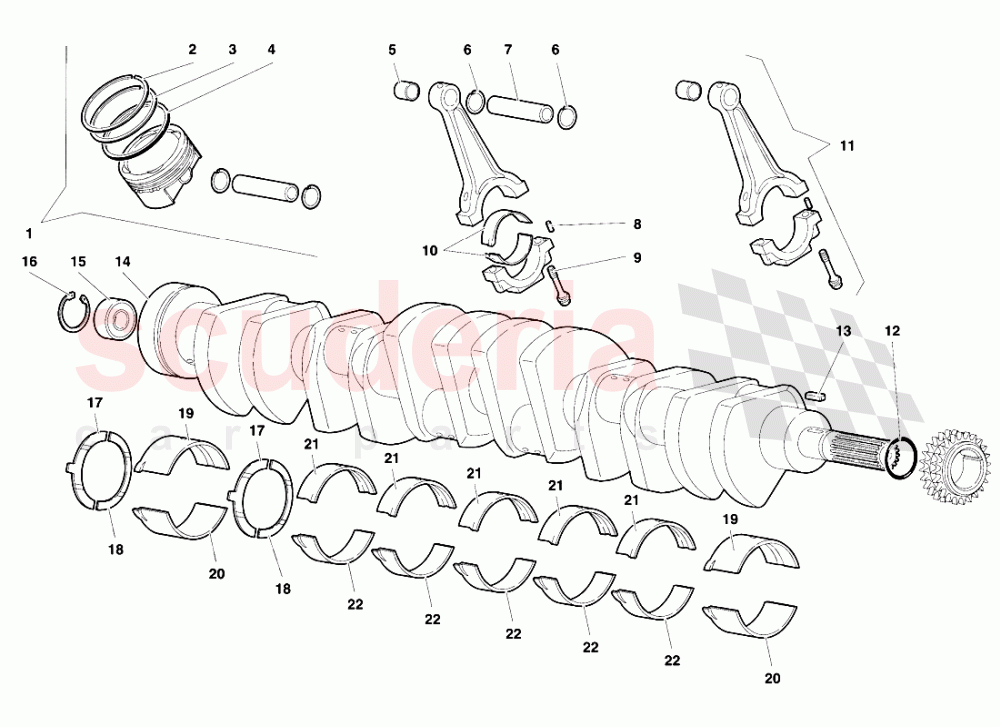

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1433968	PISTON - PISTONE COMPLETO	1433968 PISTON - PISTONE COMPLETO E COMPLETO	$1,274.03	12
002	7M107311	PISTON RING IN STOCK	7M107311 PISTON RING SEGMENTO IN STOCK	$321.14	12
003	7M107313	PISTON RING IN STOCK	7M107313 PISTON RING SEGMENTO IN STOCK	$321.14	12
004	7M107321	PISTON RING IN STOCK	7M107321 PISTON RING SEGMENTO IN STOCK	$844.26	12
005	1430768	BUSHING	1430768 BUSHING BOCCOLA	$51.79	12
006	1430537	RETAINER RING	1430537 RETAINER RING ANELLO RITEGNO	$1.10 MSRP: ~~7.16~~ (84.6% off)	24
007	1430536	PISTON PIN	1430536 PISTON PIN SPINOTTO	$391.87	12
008	8900308	DOWEL	8900308 DOWEL GRANO	-	24	Enquire
009	1422563	CON. ROD BOLT	1422563 CON. ROD BOLT BULLONE PER BIELLA	$76.20	24
010	7M105701	Brass IN STOCK	7M105701 Brass BRONZINA IN STOCK	$90.94	24
011	1429577	CON ROD ASSY	1429577 CON ROD ASSY	$668.31 MSRP: ~~723.00~~ (7.6% off)	12
012	WHT003062	SEAL RING	WHT003062 SEAL RING ANELLO TENUTA	$6.21	1
013	8860506	KEY	8860506 KEY CHIAVETTA	-	1	Enquire
014	423400200	CRANKSHAFT	423400200 CRANKSHAFT ALBERO MOTORE	-	1	Enquire
015	410109264	BEARING IN STOCK	410109264 BEARING CUSCINETTO IN STOCK	$27.46	1
016	7M109381	RETAINING RING IN STOCK	7M109381 RETAINING RING ANELLO RITEGNO IN STOCK	$1.57 MSRP: ~~7.14~~ (78% off)	1
017	7M105531A	AXIAL HALF BEARING	7M105531A AXIAL HALF BEARING SEMICUSCINETTO ASSIALE	$38.02	2
018	7M105532	THRUST WASHER (PRICE EACH)	7M105532 THRUST WASHER (PRICE EACH) use:2x 07M105531A & 2x 07M105532	$303.01	2
019	7M105707	HALF BEARING IN STOCK	7M105707 HALF BEARING SEMICUSCINETTO IN STOCK	$461.75	2
020	7M105707A	HALF BEARING	7M105707A HALF BEARING SEMICUSCINETTO	$100.24	2
021	7M105707B	HALF BEARING	7M105707B HALF BEARING SEMICUSCINETTO	$237.73	5
022	7M105707C	HALF BEARING	7M105707C HALF BEARING SEMICUSCINETTO	$96.74	5
