Windscreen Wiper 2 of Lamborghini Lamborghini Diablo SV (1999)

View All

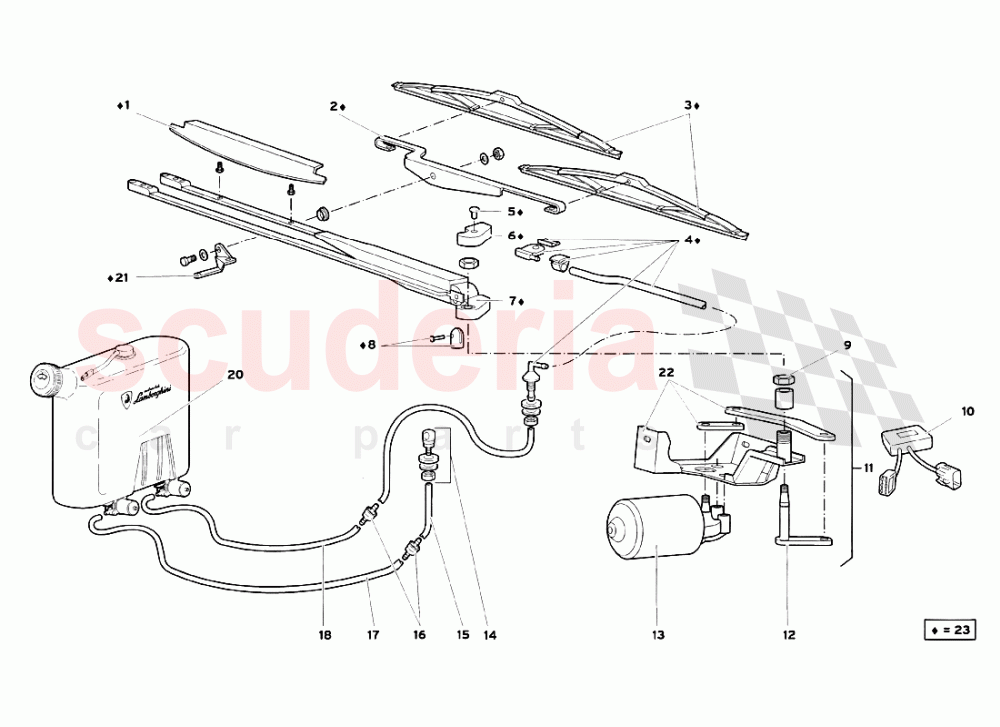

Lamborghini Diablo SV (1999) - Windscreen Wiper 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	71003279	FIN	71003279 FIN (Two brush system) ALETTA	$33.85	1
002	71003213	FORK	71003213 FORK (Two brush system) FORCELLA	-	1	Enquire
003	71003278	WIPER BRUSH	71003278 WIPER BRUSH (Two brush system) SPAZZOLA TERGICRISTALLO	$32.41	2
004	418955215	WINDSCREEN WASHER	418955215 WINDSCREEN WASHER (Two brush system) LAVAPARABREZZA	$127.39	1
005	WHT003302	SCREW M4X6 IN STOCK	WHT003302 SCREW M4X6 IN STOCK	$1.68 MSRP: ~~7.10~~ (76.3% off)	1
006	9420137	SHIELD	9420137 SHIELD (Two brush system) PROTEZIONE	-	1	Enquire
007	71003277	WIPER ARM	71003277 WIPER ARM (Two brush system) BRACCIO TERGITORE	$999.24	1
008	71003938	COUPLING	71003938 COUPLING (Two brush system) TESTA SNODATA	-	1	Enquire
009	8200828	NUT	8200828 NUT (Two brush system) DADO	-	1	Enquire
010	6138108	INTERMITTENCE	6138108 INTERMITTENCE (Two brush system) INTERMITTENZA	$742.37 MSRP: ~~835.00~~ (11.1% off)	1
011	71003921	WIPER GEAR MOTOR	71003921 WIPER GEAR MOTOR (Two brush system) MOTORIDUTTORE TERGI COMPL.	$530.28 MSRP: ~~577.00~~ (8.1% off)	1
012	71003920	PIN	71003920 PIN (Two brush system) PERNO	-	1	Enquire
013	9420112	ELECT MOTOR	9420112 ELECT MOTOR (Two brush system) MOTORING TERGI	$560.25 MSRP: ~~629.00~~ (10.9% off)	1
014	400955985	NOZZLE	400955985 NOZZLE (Two brush system) UGELLO	$5.44	1
015	9420228	PIPE	9420228 PIPE (Two brush system) TUBO	-	1	Enquire
016	9420210	VALVE	9420210 VALVE (Two brush system) VALVOLA	$5.99	2
017	9420201	PIPE	9420201 PIPE (Two brush system) TUBO	$12.45 MSRP: ~~13.60~~ (8.5% off)	1
018	9420201	PIPE	9420201 PIPE (Two brush system) TUBO	$12.45 MSRP: ~~13.60~~ (8.5% off)	1
019	9420211	PIPE	9420211 PIPE (Two brush system) TUBO	$6.87	1
020	9420219	WATER RESERVOIR	9420219 WATER RESERVOIR (Two brush system) SERBATOIO LAVACRISTALLO	$764.26	1
021	71003164	BRACKET	71003164 BRACKET (Two brush system) STAFFA	-	1	Enquire
022	71003919	LEVER	71003919 LEVER (Two brush system) GRUPPO LEVE	-	1	Enquire
023	71003276	WIND SCREEN WIPER KIT	71003276 WIND SCREEN WIPER KIT (Includes all parts marked - ?) (Two brush system) KIT TERGICRISTALLO	$1,398.36	1
