Lamborghini Diablo SV (1999) - Frame Elements

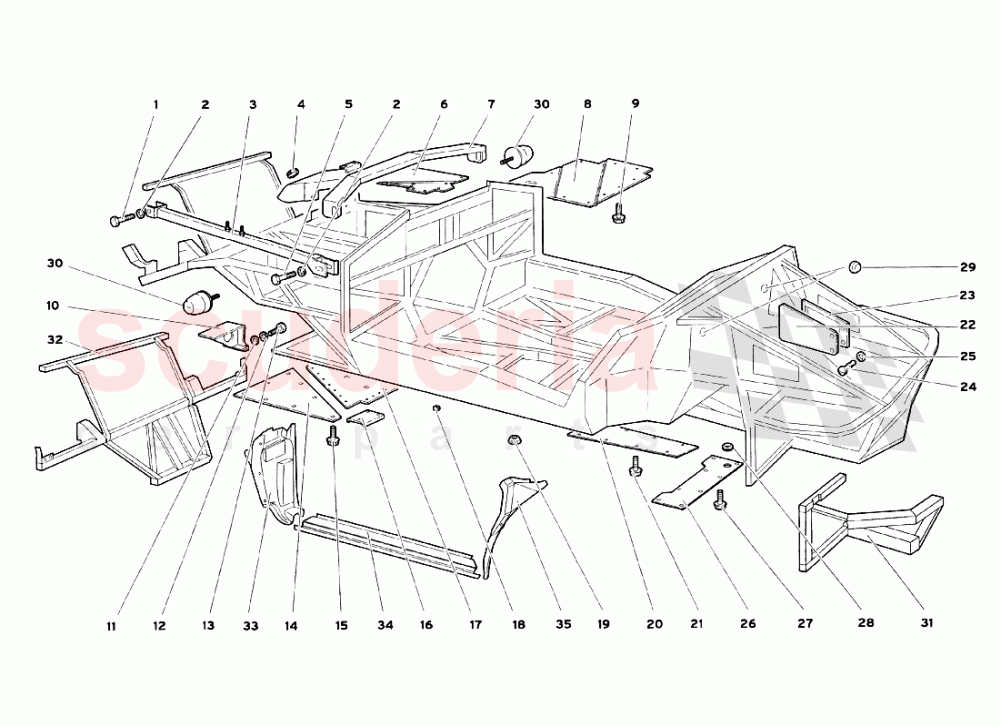

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N0147519	SCREW M8X50	N0147519 SCREW M8X50 VITE	$12.12	2
002	8400820	WASHER	8400820 WASHER RONDELLA	$16.69	4
003	4133595	LEFT CROSSRAIL	4133595 LEFT CROSSRAIL TRAVERSA SX	$385.53 MSRP: ~~430.00~~ (10.3% off)	1
003	4133596	RIGHT CROSSRAIL	4133596 RIGHT CROSSRAIL TRAVERSA DX	$385.53 MSRP: ~~430.00~~ (10.3% off)	1
004	8611606	GASKET	8611606 GASKET ANELLO GOMMA	$1.62 MSRP: ~~7.04~~ (77% off)	2
005	8700846	SCREW	8700846 SCREW VITE	$2.05	2
006	9411522	RIGTH SUPPORT	9411522 RIGTH SUPPORT SUPPORTO DX	$581.20 MSRP: ~~651.00~~ (10.7% off)	1
006	9411523	LEFT SUPPORT	9411523 LEFT SUPPORT SUPPORTO SX	$5,736.63	1
007	4131512	CROSSRAIL	4131512 CROSSRAIL TRAVERSA	$385.53 MSRP: ~~430.00~~ (10.3% off)	1
008	4135417	PANEL	4135417 PANEL PANNELLO	$531.41	1
009	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.69	11
010	4137167	SUPPORT - SUPPORTO SERBATOIO BENZINA	4137167 SUPPORT - SUPPORTO SERBATOIO BENZINA O SERBATOIO BENZINA	-	1	Enquire
011	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	2
012	8410820	WASHER	8410820 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	2
013	8100812	SCREW	8100812 SCREW VITE	$0.33 MSRP: ~~7.33~~ (95.5% off)	2
014	4135426	PANEL	4135426 PANEL PANNELLO	$91.85	1
015	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.69	8
016	4133887	REINFORCEMENT	4133887 REINFORCEMENT RINFORZO	$30.54	2
017	4135423	PANEL	4135423 PANEL PANNELLO	$233.87 MSRP: ~~261.00~~ (10.4% off)	1
018	4134333	PLUG	4134333 PLUG TAPPO	$0.64 MSRP: ~~7.26~~ (91.2% off)	4
019	4131483	PLUG	4131483 PLUG TAPPO	-	8	Enquire
020	4130445	PANEL	4130445 PANEL PANNELLO	$322.15	1
021	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.69	8
022	4130207	LEFT PANEL	4130207 LEFT PANEL PANNELLO ISPEZIONE ALZAFARI SX	$201.89	1
022	4130206	RIGHT PANEL	4130206 RIGHT PANEL PANNELLO ISPEZIONE ALZAFARI DX	$91.85	1
023	9490205	LEFT GASKET	9490205 LEFT GASKET GUARNIZIONE SX	-	1	Enquire
023	410805349	RH GASKET	410805349 RH GASKET GUARNIZIONE DX	$21.52	1
024	4131085	PIN	4131085 PIN PERNO AGGANCIO RAPIDO	-	4	Enquire
025	7014263	RUBBER WASHER	7014263 RUBBER WASHER RONDELLA	-	4	Enquire
026	4132486	PANEL	4132486 PANEL PANNELLO	$226.93 MSRP: ~~245.50~~ (7.6% off)	1
027	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.69	8
028	8612503	GASKET	8612503 GASKET ANELLO COMMA	$13.14 MSRP: ~~14.65~~ (10.3% off)	1
029	8931407	PLUG	8931407 PLUG TAPPO	$1.11 MSRP: ~~7.15~~ (84.5% off)	2
030	4137362	RUBBER PAD	4137362 RUBBER PAD (Valid for USA - July 1999)TAMPONE GOMMA	$692.34 MSRP: ~~775.00~~ (10.7% off)	2
030	4137362	RUBBER PAD	4137362 RUBBER PAD (Valid for CANADA - July 1999) TAMPONE GOMMA	$692.34 MSRP: ~~775.00~~ (10.7% off)	2
031	4137964	FRONT RH FRAME	4137964 FRONT RH FRAME TELAIETTO ANT. DX	$9,644.00	1
031	4137963	FRONT LH FRAME	4137963 FRONT LH FRAME TELAIETTO ANT. SX	$890.11	1
032	41004924	REAR FRAME	41004924 REAR FRAME TELAIETTO POSTERIORE	$9,218.52	1
033	9409133	REAR LH COVERING	9409133 REAR LH COVERING RIVESTIMENTO SX POSTERIORE	$643.69 MSRP: ~~695.00~~ (7.4% off)	1
033	9409132	REAR RH COVERING	9409132 REAR RH COVERING RIVESTIMENTO DX POSTERIORE	$582.35 MSRP: ~~631.00~~ (7.7% off)	1
034	9409135	MIDDLE LH COVERING	9409135 MIDDLE LH COVERING RIVESTIMENTO SX CENTRALE	$107.22 MSRP: ~~116.00~~ (7.6% off)	1
034	9409134	MIDDLE RH COVERING	9409134 MIDDLE RH COVERING RIVESTIMENTO DX CENTRALE	$107.22 MSRP: ~~116.00~~ (7.6% off)	1
035	9409137	FRONT LH COVERING	9409137 FRONT LH COVERING RIVESTIMENTO SX ANTERIORE	$482.77 MSRP: ~~522.00~~ (7.5% off)	1
035	9409136	FRONT RH COVERING	9409136 FRONT RH COVERING RIVESTIMENTO DX ANTERIORE	$482.77 MSRP: ~~522.00~~ (7.5% off)	1
