Lamborghini Diablo SV (1999) - Windows

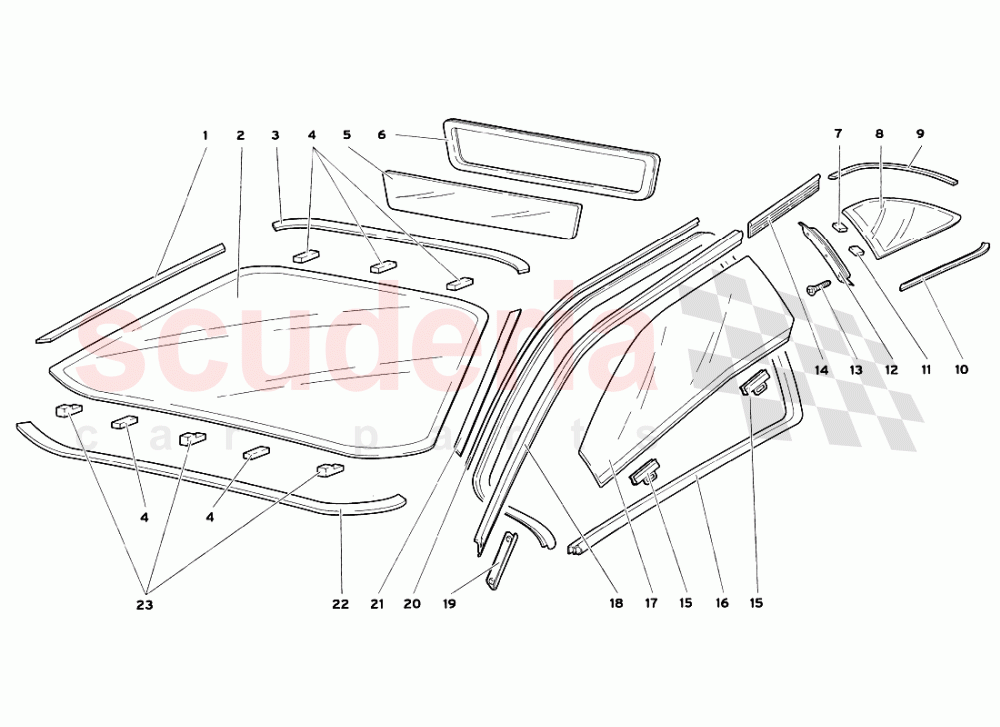

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9415204	RIGHT FRAME	9415204 RIGHT FRAME CORNICE DX	$386.49	1
002	9415107	FRONT GLASS	9415107 FRONT GLASS CRISTALLO ANTERIORE	$7,500.62	1
003	9415200	TOP FRAME	9415200 TOP FRAME CORNICE SUPERIORE	$492.85	1
004	410845235	WINDSHIELD SPACER IN STOCK	410845235 WINDSHIELD SPACER IN STOCK	$51.32	5
005	9418100	REAR GLASS	9418100 REAR GLASS CRISTALLO POSTERIORE	$790.66 MSRP: ~~889.00~~ (11.1% off)	1
006	9418103	GASKET	9418103 GASKET GUARNIZIONE	$562.13 MSRP: ~~611.00~~ (8% off)	1
007	400845633	QUARTER WINDOW GLASS SHIM	400845633 QUARTER WINDOW GLASS SHIM DISTANZIALE	$15.83	2
008	70004150	LEFT HAND GLASS	70004150 LEFT HAND GLASS CRISTALLO SX	$10,665.16	1
008	70004149	RIGHT HAND GLASS	70004149 RIGHT HAND GLASS CRISTALLO DX	$10,665.16	1
009	9417107	LEFT FRAME	9417107 LEFT FRAME CORNICE SX	$342.04	1
009	9417106	RIGHT FRAME	9417106 RIGHT FRAME CORNICE DX	$669.29	1
010	9417102	RIGHT FRAME	9417102 RIGHT FRAME CORNICE DX	$258.56	1
010	9417103	LEFT FRAME	9417103 LEFT FRAME CORNICE SX	$219.33	1
011	410845626	SPACER	410845626 SPACER	$11.13	2
012	9417104	RIGHT FRAME	9417104 RIGHT FRAME CORNICE DX	$579.05	1
012	9417105	LEFT FRAME	9417105 LEFT FRAME CORNICE SX	$433.61	1
013	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) VITE IN STOCK	$1.24 MSRP: ~~7.18~~ (82.7% off)	6
014	9421733	GASKET	9421733 GASKET GUARNIZIONE	$38.25	2
015	9421608	BRACKET	9421608 BRACKET STAFFA	$126.58	4
016	72010205	RHS GASKET	72010205 RHS GASKET	$663.69	1
016	72010206	LHS GASKET	72010206 LHS GASKET GUARNIZIONE	$818.35	1
017	72004147	RIGHT DOOR GLASS	72004147 RIGHT DOOR GLASS	$4,611.13	1
017	72004148	LEFT DOOR GLASS	72004148 LEFT DOOR GLASS	$4,612.14	1
018	72001177	GASKET	72001177 GASKET GUARNIZIONE	$504.99	2
019	72001470	PLATE	72001470 PLATE PIASTRINO	$114.86	2
020	9421708	RIGHT SUPPORT	9421708 RIGHT SUPPORT SUPPORTO DX	$358.99	1
020	9421709	LEFT SUPPORT	9421709 LEFT SUPPORT SUPPORTO SX	$348.77	1
021	9415205	LEFT FRAME	9415205 LEFT FRAME CORNICE SX	$488.83	1
022	9415201	BOTTOM FRAME	9415201 BOTTOM FRAME CORNICE INFERIORE	$440.33	1
023	410845235	WINDSHIELD SPACER IN STOCK	410845235 WINDSHIELD SPACER IN STOCK	$51.32	3
