Windscreen Wiper 1 of Lamborghini Lamborghini Diablo SV (1999)

View All

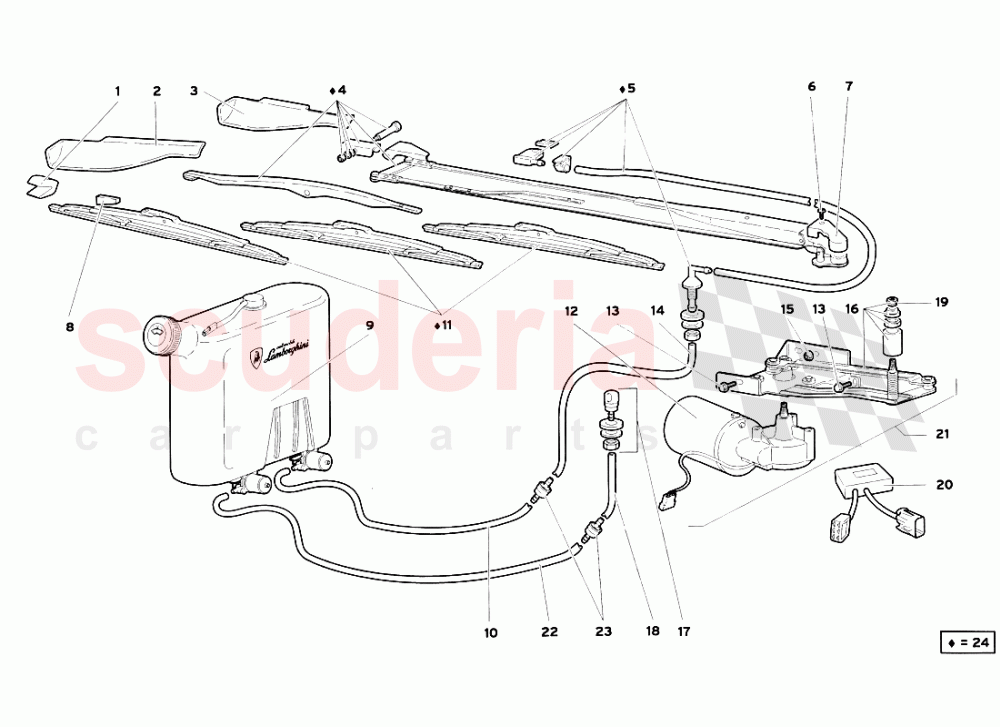

Lamborghini Diablo SV (1999) - Windscreen Wiper 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9420129	RUBBER BUMPER	9420129 RUBBER BUMPER (Three brush system) PARACOLPI COMMA	$32.20	1
002	9420128	FIN	9420128 FIN (Three brush system) ALETTA ESTERNA	$2,104.77	1
003	9420127	FIN	9420127 FIN (Three brush system) ALETTA INTERNA	$1,098.04	1
004	9420125	WIPER ARM	9420125 WIPER ARM (Three brush system) BRACCIO TERGITORE	-	1	Enquire
005	418955215	WINDSCREEN WASHER	418955215 WINDSCREEN WASHER (Three brush system) LAVAPARABREZZA	$127.80	1
006	WHT003302	SCREW M4X6 IN STOCK	WHT003302 SCREW M4X6 IN STOCK	$1.69 MSRP: ~~7.10~~ (76.2% off)	1
007	9420137	SHIELD	9420137 SHIELD (Three brush system) PROTEZIONE	-	1	Enquire
008	9420136	RUBBER	9420136 RUBBER (Three brush system) COMMA	$95.28 MSRP: ~~103.50~~ (7.9% off)	1
009	9420219	WATER RESERVOIR	9420219 WATER RESERVOIR (Three brush system) SERBATOIO LAVACRISTALLO	$766.72	1
010	9420216	PIPE	9420216 PIPE (Three brush system) TUBO	$5.86 MSRP: ~~6.40~~ (8.4% off)	1
011	9420126	BRUSH	9420126 BRUSH (Three brush system) SPAZZOLA TERGI	$29.14 MSRP: ~~31.60~~ (7.8% off)	3
012	9420112	ELECT MOTOR	9420112 ELECT MOTOR (Three brush system) MOTORING TERGI	$562.05 MSRP: ~~629.00~~ (10.6% off)	1
013	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT (Three brush system) VITE IN STOCK	$1.69	2
014	9420211	PIPE	9420211 PIPE (Three brush system) TUBO	$6.90	1
015	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT (Three brush system) DADO IN STOCK	$0.19	2
016	9920100	LEVER ASSY	9920100 LEVER ASSY (Three brush system) MECCANISMO TERGI	$531.47	1
017	400955985	NOZZLE	400955985 NOZZLE (Three brush system) UGELLO	$5.46	1
018	9420228	PIPE	9420228 PIPE (Three brush system) TUBO	-	1	Enquire
019	8200828	NUT	8200828 NUT (Three brush system) DADO	-	2	Enquire
020	6138108	INTERMITTENCE	6138108 INTERMITTENCE (Three brush system) INTERMITTENZA	$744.76 MSRP: ~~835.00~~ (10.8% off)	1
021	9920002	WIPER GEAR MOTOR	9920002 WIPER GEAR MOTOR (Three brush system) MOTORIDUTTORE TERCM CDWPL.	$777.15	1
022	9420201	PIPE	9420201 PIPE (Three brush system) TUBO	$12.49 MSRP: ~~13.60~~ (8.2% off)	1
023	9420210	VALVE	9420210 VALVE (Three brush system) VALVOLA	$6.01	2
024	AA0000066	WIND SCREEN WHIPER KIT	AA0000066 WIND SCREEN WHIPER KIT (Includes all parts marked - ?) (Three brush system) KIT TERGICRISTALLO	$645.37	1
