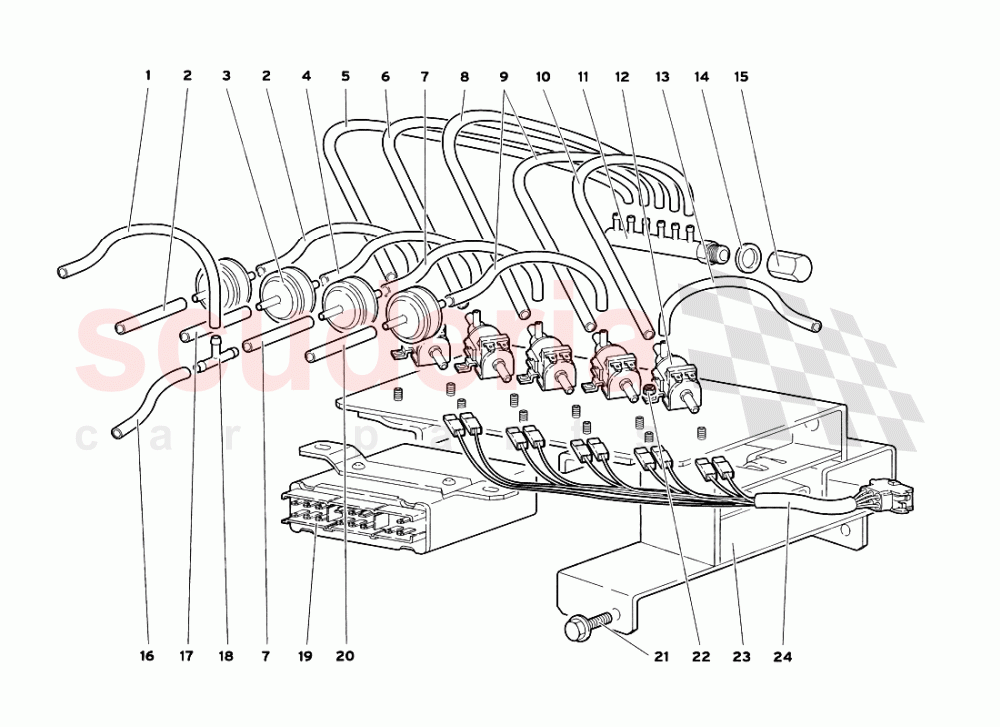

Lamborghini Diablo SV (1999) - Climate Control 4

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414649	FLEX. HOSE	9414649 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	1
002	9414643	FLEX. HOSE	9414643 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	2
003	9414633	VALVE	9414633 VALVE VALVOLA	$152.62 MSRP: ~~170.50~~ (10.5% off)	4
004	9414645	FLEX. HOSE	9414645 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	1
005	9414642	FLEX. HOSE	9414642 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	1
006	9414644	FLEX. HOSE	9414644 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	1
007	9414648	FLEX. HOSE	9414648 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	2
008	9414647	FLEX. HOSE	9414647 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	1
009	9414651	FLEX. HOSE	9414651 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	2
010	9414653	FLEX. HOSE	9414653 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	1
011	4621565	CONNECTION	4621565 CONNECTION RACCORDO	$74.81 MSRP: ~~81.00~~ (7.6% off)	1
012	77906283	SOLENOID VALVE IN STOCK	77906283 SOLENOID VALVE ELETTRO VALVOLA IN STOCK	$53.31	5
013	9414654	FLEX. HOSE	9414654 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	1
014	8401008	WASHER	8401008 WASHER RONDELLA	-	1	Enquire
015	9414606	PLUG	9414606 PLUG TAPPO	$66.03 MSRP: ~~74.10~~ (10.9% off)	1
016	9414650	FLEX. HOSE	9414650 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	1
017	9414646	FLEX. HOSE	9414646 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	1
018	7014169	T UNION	7014169 T UNION RACCORDO	$22.94 MSRP: ~~25.65~~ (10.6% off)	1
019	4526659	ELECTRONIC CONT. U.	4526659 ELECTRONIC CONT. U. CENTRALINA CLIMATIZZAZIONE	$4,964.08	1
020	9414652	FLEX. HOSE	9414652 FLEX. HOSE TUBO FLESSIBILE	$128.92 MSRP: ~~139.50~~ (7.6% off)	1
021	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.78 MSRP: ~~7.37~~ (62.3% off)	2
022	N01100412	HEXAGON NUT	N01100412 HEXAGON NUT DADO	-	10	Enquire
023	9414627	SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO	9414627 SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO (Valid for GB - July 1999) O	$215.65 MSRP: ~~234.00~~ (7.8% off)	1
023	9414628	PLATE	9414628 PLATE O	$243.38 MSRP: ~~264.00~~ (7.8% off)	1
023	9414627	SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO	9414627 SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO (Valid for AUSTRALIA - July 1999) O	$215.65 MSRP: ~~234.00~~ (7.8% off)	1
024	6130618	ELECT CABLE	6130618 ELECT CABLE CABLAGGIO ELETTROV.	$112.06 MSRP: ~~126.00~~ (11.1% off)	1
