Water Pump of Lamborghini Lamborghini Diablo SV (1999)

View All

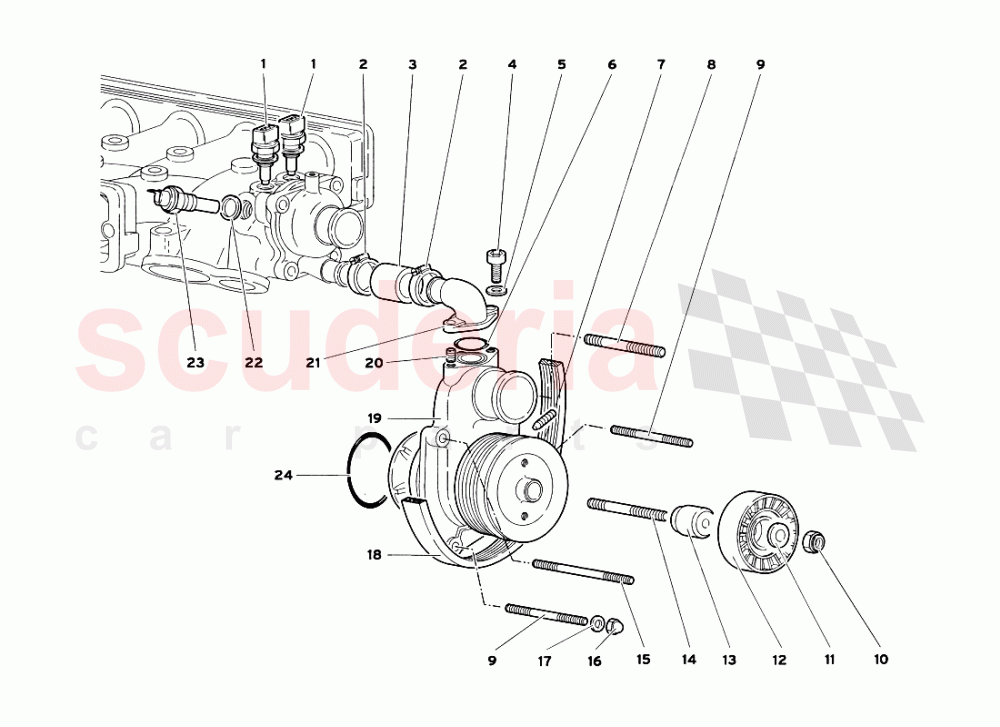

Lamborghini Diablo SV (1999) - Water Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L919501A	Water Temperature Sensor IN STOCK	7L919501A Water Temperature Sensor SENSORE TEMP. ACQUA IN STOCK	$337.99	2
002	8832604	STRAP	8832604 STRAP FASCETTA	$3.13 MSRP: ~~3.40~~ (7.9% off)	2
003	1732811	PIPE	1732811 PIPE TUBO	$23.42 MSRP: ~~25.50~~ (8.2% off)	1
004	8700617	SCREW IN STOCK	8700617 SCREW VITE IN STOCK	$0.23 MSRP: ~~7.35~~ (96.9% off)	2
005	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.70	2
006	WHT003062	SEAL RING	WHT003062 SEAL RING ANELLO TENUTA	$6.19	1
007	8700650	SCREW IN STOCK	8700650 SCREW VITE IN STOCK	$2.25 MSRP: ~~2.50~~ (10% off)	1
008	8301034	STUD	8301034 STUD PRIGIONIERO	$5.41 MSRP: ~~6.00~~ (9.8% off)	1
009	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.73	2
010	8201008	NUT IN STOCK	8201008 NUT DADO IN STOCK	$0.75 MSRP: ~~7.24~~ (89.6% off)	1
011	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	1
012	7M109565	PULLEY	7M109565 PULLEY PULEGGIA	$3,696.71	1
013	1237082	BUSHING	1237082 BUSHING BUSSOLA	$243.49	1
014	8301034	STUD	8301034 STUD PRIGIONIERO	$5.41 MSRP: ~~6.00~~ (9.8% off)	1
015	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO	$5.66 MSRP: ~~6.30~~ (10.2% off)	1
016	N0111849	NUT IN STOCK	N0111849 NUT DADO IN STOCK	$2.13 MSRP: ~~7.25~~ (70.6% off)	3
017	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	3
018	1736516	TRANS BELT	1736516 TRANS BELT WATER PUMP, ALTERNATOR & POWER STEERING	$398.20	1
019	17001862	WATER PUMP	17001862 WATER PUMP POMPA ACQUA	$3,807.03	1
020	8840601	HELI-COIL	8840601 HELI-COIL	$2.37 MSRP: ~~2.55~~ (7.1% off)	2
021	1732803	CONNECTION	1732803 CONNECTION RACCORDO	$306.73 MSRP: ~~333.00~~ (7.9% off)	1
022	8401408	WASHER IN STOCK	8401408 WASHER RONDELLA IN STOCK	$0.81 MSRP: ~~7.22~~ (88.8% off)	1
023	1724221	THERMOCOUPLE	1724221 THERMOCOUPLE TERMOCOPPIA	$131.98	1
024	WHT003018	SEAL RING IN STOCK	WHT003018 SEAL RING ANELLO Dl TENUTA IN STOCK	$82.06	1
