Radiators and Electro-Fans of Lamborghini Lamborghini Diablo SV (1999)

View All

Lamborghini Diablo SV (1999) - Radiators and Electro-Fans

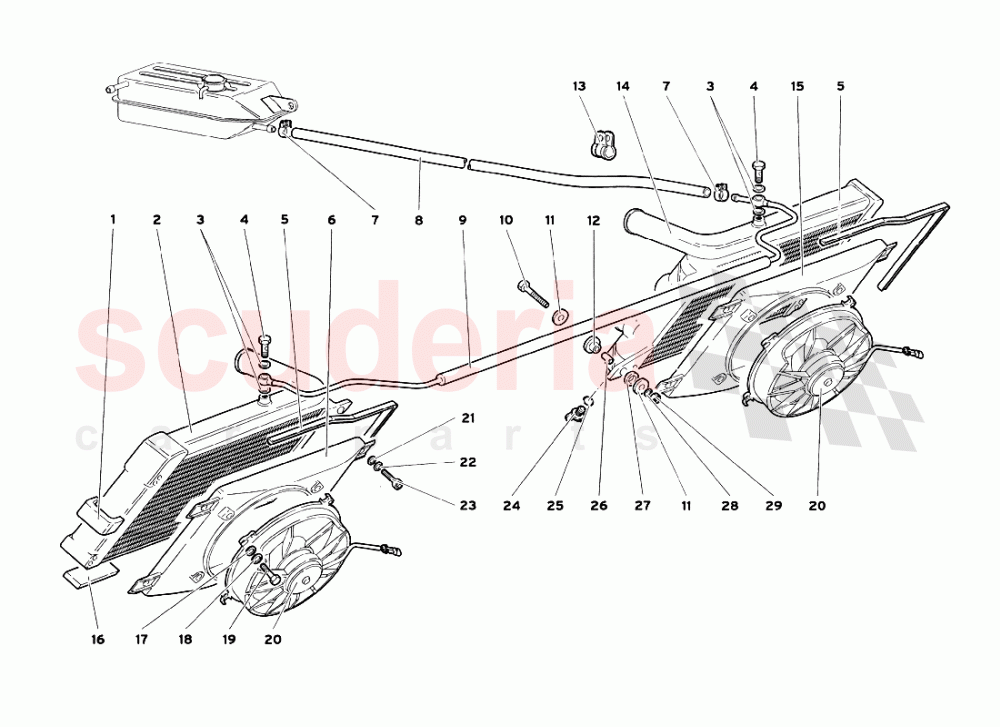

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1733004	GASKET	1733004 GASKET PROTEZIONE	$20.18 MSRP: ~~22.55~~ (10.5% off)	4
002	1735035	LH RADIATOR	1735035 LH RADIATOR	$2,920.96	1
003	8400818	WASHER	8400818 WASHER RONDELLA	-	4	Enquire
004	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	$26.17	2
005	410121539	GASKET	410121539 GASKET GUARNIZIONE	$54.49	2
006	410121333	LEFT CONVEYOR	410121333 LEFT CONVEYOR CONVOGLIATORE SX	$417.11	1
007	8830817	CLAMP	8830817 CLAMP FASCETTA	$2.05	2
008	1735264	PIPE	1735264 PIPE TUBO	$15.57 MSRP: ~~16.90~~ (7.9% off)	1
009	1738038	VENT PIPE	1738038 VENT PIPE TUBO Dl SFIATO	-	1	Enquire
010	8100824	SCREW	8100824 SCREW VITE	$1.29 MSRP: ~~7.13~~ (81.9% off)	4
011	WHT001942	WASHER IN STOCK	WHT001942 WASHER RONDELLA IN STOCK	$3.07	8
012	1733266	RUBBER BUSHING	1733266 RUBBER BUSHING BOCCOLA COMMA	$6.81	4
013	8831515	CLAMP	8831515 CLAMP FASCETTA	$9.33	1
014	1735034	RH RADIATOR	1735034 RH RADIATOR	$4,398.30	1
015	410121334A	RH CONVEYOR	410121334A RH CONVEYOR CONVOGLIATORE DX	$1,509.29	1
016	1731451	GASKET	1731451 GASKET PROTEZIONE	$13.65 MSRP: ~~14.85~~ (8.1% off)	2
017	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.08	8
018	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	8
019	8100502	SCREW IN STOCK	8100502 SCREW VITE IN STOCK	$0.15	8
020	17017063	ELECTROFAN	17017063 ELECTROFAN ELETTROVENTILATORE	$1,001.47	2
021	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	8
022	WHT003213	WASHER	WHT003213 WASHER RONDELLA	$1.25 MSRP: ~~7.15~~ (82.5% off)	8
023	8700644	SCREW	8700644 SCREW VITE	$0.35 MSRP: ~~7.34~~ (95.2% off)	8
024	410121299	PLUG	410121299 PLUG TAPPO	$217.95	2
025	8600905	SEAL RING	8600905 SEAL RING ANELLO TENUTA	$8.85 MSRP: ~~9.85~~ (10.2% off)	2
026	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE BOCCOLA	$9.78	4
027	WHT001189	PLASTIC WASHER IN STOCK	WHT001189 PLASTIC WASHER IN STOCK	$5.89	4
028	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	4
029	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	4
