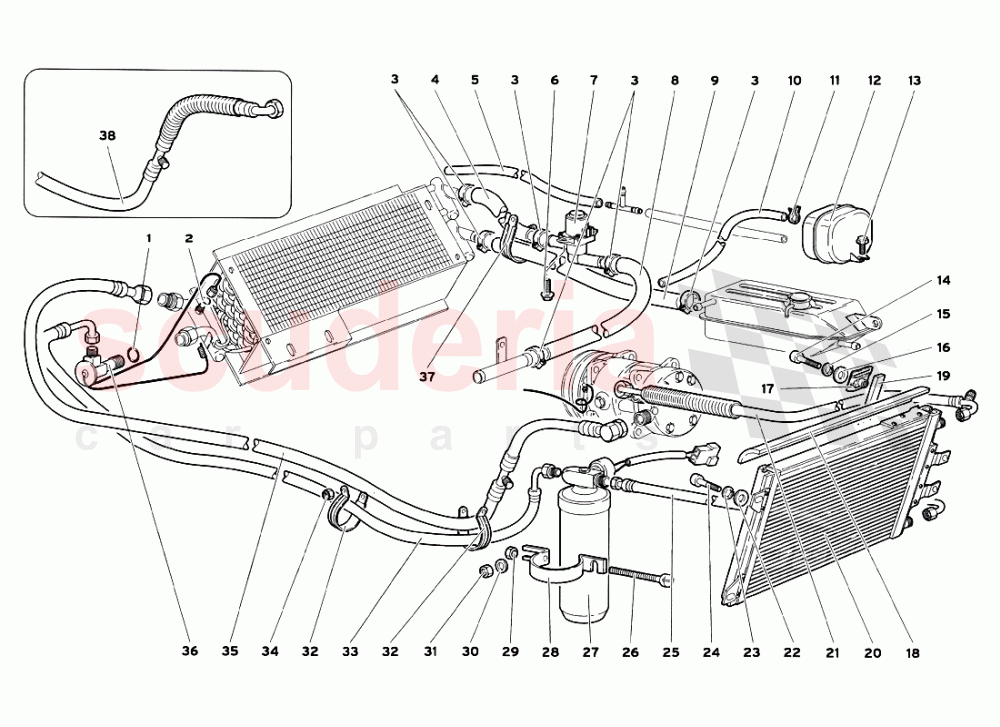

Lamborghini Diablo SV (1999) - Climate Control 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	4535912	SEAL	4535912 SEAL ANELLO TENUTA	$2.89 MSRP: ~~3.15~~ (8.3% off)	1
002	4535915	SEAL	4535915 SEAL ANELLO TENUTA	$1.79 MSRP: ~~2.00~~ (10.5% off)	1
003	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$40.91	6
004	4734346	PIPE	4734346 PIPE TUBO	$188.63	1
005	9414600	PIPE	9414600 PIPE TUBO	$36.03 MSRP: ~~39.15~~ (8% off)	1
006	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	2
007	6031658	ELECTRO-VALVE	6031658 ELECTRO-VALVE ELETTROVALVOLA	$279.95	1
008	4734347	PIPE	4734347 PIPE TUBO	$184.62	1
009	1734332	PIPE	1734332 PIPE TUBO	$372.95	1
010	6237078	PIPE	6237078 PIPE TUBO	$17.38 MSRP: ~~18.95~~ (8.3% off)	1
011	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.43	2
012	1323406	VACUUM TANK	1323406 VACUUM TANK SERBATOIO WOTO	$42.19 MSRP: ~~45.90~~ (8.1% off)	1
013	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	2
014	8700614	SCREW	8700614 SCREW VITE	$0.25	2
015	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	2
016	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	2
017	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT MOLLETTA IN STOCK	$1.23	2
018	4531592	GASKET	4531592 GASKET GUARNIZIONE	$8.64 MSRP: ~~9.45~~ (8.6% off)	2
019	4531591	GASKET	4531591 GASKET GUARNIZIONE	$1.79 MSRP: ~~2.00~~ (10.5% off)	2
020	45001234	A/C CONDENSER	45001234 A/C CONDENSER CONDENSATORE CONDIZIONATORE	$1,392.75 MSRP: ~~1,560.00~~ (10.7% off)	1
021	45001269	PIPE	45001269 PIPE TUBO	$489.21	1
022	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	4
023	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	4
024	8700614	SCREW	8700614 SCREW VITE	$0.25	4
025	45001270	PIPE	45001270 PIPE TUBO	$185.91 MSRP: ~~202.50~~ (8.2% off)	1
026	8700542	SCREW	8700542 SCREW VITE	$0.63 MSRP: ~~7.26~~ (91.3% off)	1
027	45003629	FILTER	45003629 FILTER FILTRO DEIDRATORE	$240.58	1
028	4531395	STRAP	4531395 STRAP FASCETTA	$8.31 MSRP: ~~9.30~~ (10.6% off)	1
029	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	1
030	8400801	WASHER	8400801 WASHER RONDELLA	$0.63	2
031	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	2
032	8834401	CLAMP	8834401 CLAMP FASCETTA	$12.05 MSRP: ~~13.50~~ (10.7% off)	6
033	4535415	PIPE	4535415 PIPE TUBO	$302.73 MSRP: ~~341.00~~ (11.2% off)	1
034	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	8
035	4535416	PIPE	4535416 PIPE TUBO	$289.40	1
036	4535412	VALVE	4535412 VALVE VALVOLA Dl ESPANSIONE	$337.27 MSRP: ~~366.00~~ (7.8% off)	1
037	8834401	CLAMP	8834401 CLAMP FASCETTA	$12.05 MSRP: ~~13.50~~ (10.7% off)	2
038	4535935	PIPE	4535935 PIPE (Valid for USA - July 1999) TUBO	$259.00 MSRP: ~~283.00~~ (8.5% off)	1
038	4535935	PIPE	4535935 PIPE (Valid for CANADA - July 1999) TUBO	$259.00 MSRP: ~~283.00~~ (8.5% off)	1
