Front Suspension of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

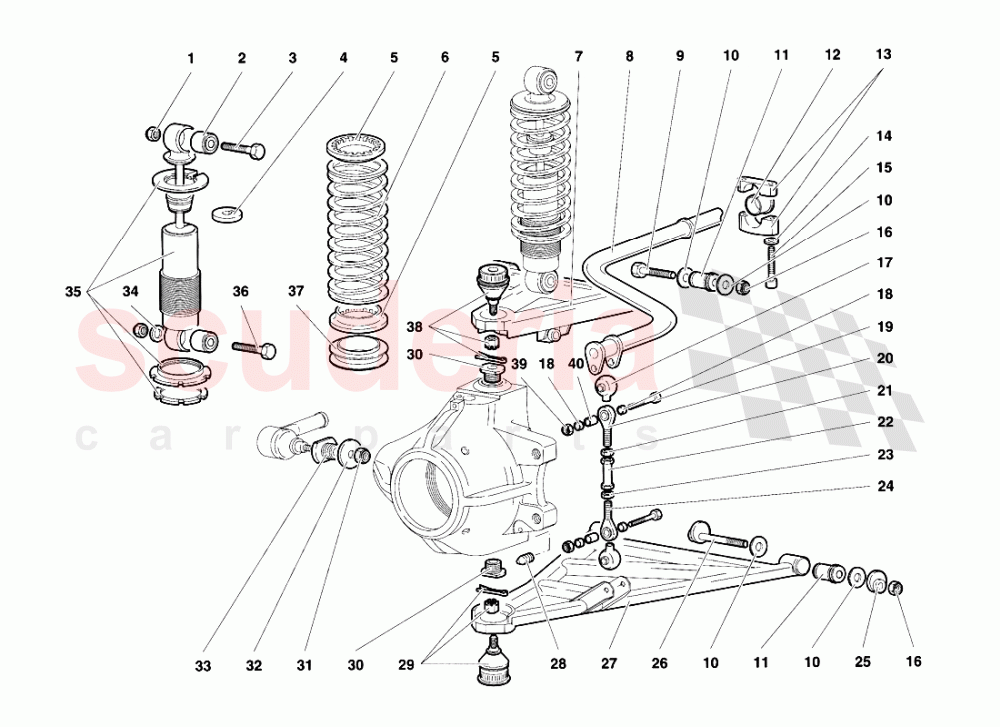

Lamborghini Diablo SE30 (1993-1995) - Front Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$20.48	4
002	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$550.43	4
003	8101259	SCREW	8101259 SCREW VITE	$14.42	2
004	5131484	SPACER	5131484 SPACER DISTANZIALE	$32.79	2
005	410512385	RUBBER RING	410512385 RUBBER RING	$49.62	4
006	5135181	FRONT SUSPE. SPRING	5135181 FRONT SUSPE. SPRING MOLLA X SOSPENS.ANTER.	$93.02	2
007	5133345	ARM	5133345 ARM BRACCIO SUP.SX.	$1,633.51	1
007	5133344	ARM	5133344 ARM BRACCIO SUP.DX.	$1,559.57	1
008	5134057	TORSION BAR	5134057 TORSION BAR BARRA Dl TORSIONE ANTER.	$411.41	1
009	8101269	SCREW	8101269 SCREW VITE	$4.86	4
010	410407295D	WASHER	410407295D WASHER RONDELLA SP = 3 MM	$27.60	1
010	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM RONDELLA SP = 2 MM	$6.24	1
010	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM RONDELLA SP = 2,5 MM	$6.87	1
010	5133488	SHIM	5133488 SHIM RONDELLA SP = 1,5 MM	$3.10	1
010	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM RONDELLA SP = 1 MM	$4.25	1
011	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	$46.73	8
012	5238302	BUSHING IN STOCK	5238302 BUSHING BOCCOLA X BARRA Dl TORSIONE IN STOCK	$134.51	2
013	5230258	RETAINER	5230258 RETAINER CAVALLOTTO	$289.23	2
014	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.68	4
015	8700609	SCREW	8700609 SCREW VITE	$0.50 MSRP: ~~7.31~~ (93.2% off)	4
016	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$20.48	8
017	5109714	BOOT	5109714 BOOT CAPPUCCIO	$24.38	4
018	5227297	BUSHING	5227297 BUSHING BOCCOLA X SNODO SFERICO	$30.06	8
019	8100810	SCREW	8100810 SCREW VITE	-	4	Enquire
020	417801931A	BALL JOINT	417801931A BALL JOINT GIUNTO SFERICO	$248.38	2
021	8201014	NUT	8201014 NUT DADO	$5.71	2
022	5209770	TIE ROD	5209770 TIE ROD TIRANTE	$106.02 MSRP: ~~115.00~~ (7.8% off)	2
023	8201016	NUT	8201016 NUT DADO	$21.14	2
024	5227295	BALL JOINT	5227295 BALL JOINT GIUNTO SFERICO	$141.85	2
025	410407127A	BOLT	410407127A BOLT ECCENTRICO	$2,171.76	4
026	410407127A	BOLT	410407127A BOLT PERNO CON ECCENTRICO	$2,171.76	4
027	5133038	ARM	5133038 ARM BRACCIO INFERIORE DX.	$1,212.70	1
027	5133039	ARM	5133039 ARM BRACCIO INFERIORE SX.	$1,212.70	1
028	WHT002941	SCREW M6X1X10	WHT002941 SCREW M6X1X10 VITE	$0.90 MSRP: ~~7.24~~ (87.6% off)	4
029	410407361B	COUPLING	410407361B COUPLING TESTA A SNODO	$1,171.01	2
030	410407171C	BUSH	410407171C BUSH BUSSOLA PORTAM.X BRACCI	$1,372.94	4
031	8201003	NUT	8201003 NUT DADO	$3.23	2
032	8401230	WASHER IN STOCK	8401230 WASHER RONDELLA IN STOCK	$53.98	2
033	5129541	BUSHING	5129541 BUSHING BUSSOLA	$43.98	2
034	8401234	WASHER	8401234 WASHER RONDELLA	$1.56 MSRP: ~~7.11~~ (78.1% off)	12
035	5129802	SHOCK ABSORBER	5129802 SHOCK ABSORBER AMMORTIZZATORE ANT.	$1,079.59	2
036	5133229	SCREW	5133229 SCREW VITE	$103.02	2
037	5135183	SPACER	5135183 SPACER DISTANZIALE	$122.60	2
038	410407365	Coupling	410407365 Coupling TESTA A SNODO	$246.49	2
039	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	4
040	5227298	BUSHING	5227298 BUSHING BOCCOLA	$16.37 MSRP: ~~17.80~~ (8% off)	4
