Steering 2

Lamborghini Diablo SE30 (1993-1995)

Find Your Part

Lamborghini Diablo SE30 (1993-1995) - Steering 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

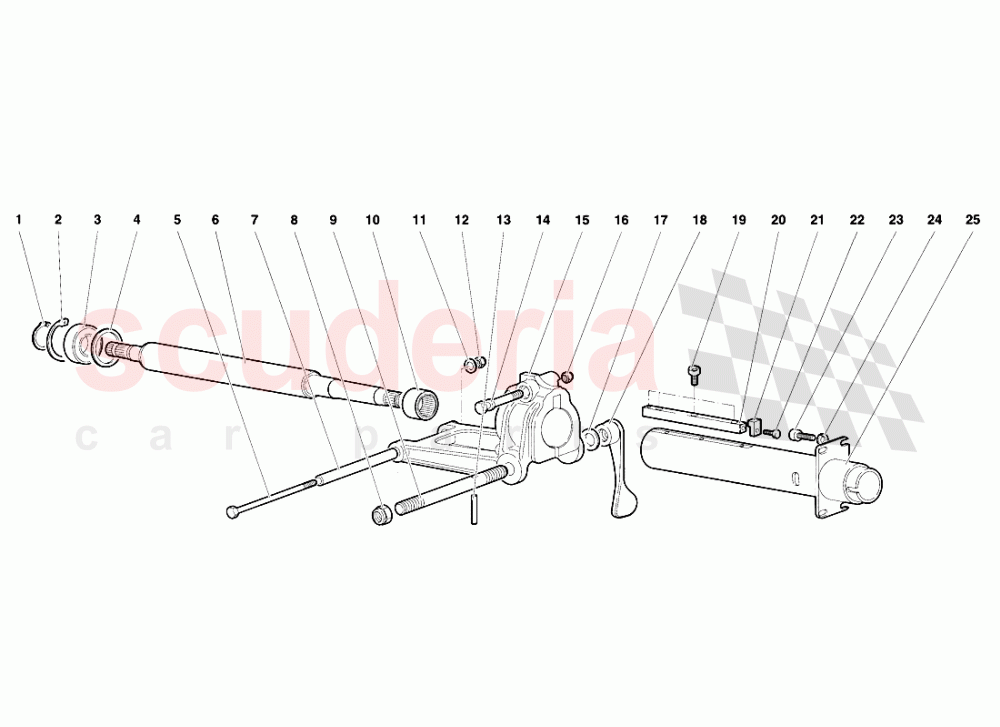

Steering 2 of Lamborghini Lamborghini Diablo SE30 (1993-1995) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8581501
RETAINER RING
ANELLO RITEGNO 		$0.33 1
002 7M109381
RETAINING RING
ANELLO RITEGNO
IN STOCK 		$1.56 (78.2% off) 1
003 8501703
BEARING
CUSCINETTO 		- 1 Enquire
004 4330714
SHIM
SPESSORE Dl REGISTRO 		$3.11 1
004 4330715
SHIM
SPESSORE Dl REGISTRO 		$3.85 1
004 4330716
SHIM
SPESSORE Dl REGISTRO 		$9.19 1
005 8100815
SCREW
VITE 		$8.95 1
006 4319324
STEERING COLUMN
PIANTONE STERZO 		$608.83 1
007 4309824
PIN
PERNO 		$68.98 1
008 8201416
NUT
DADO 		$1.62 1
009 4331627
PIN
PERNO 		$14.73 1
010 8522002
BEARING
CUSCINETTO 		$9.82 1
011 8400801
WASHER
RONDELLA 		$0.64 1
012 8200804
NUT M8
DADO
IN STOCK 		$1.08 (85.2% off) 1
013 8900401
PIN
SA
IN STOCK 		$0.24 (96.7% off) 1
014 8100852
SCREW
VITE 		$23.92 1
015 4327449
SUPPORT - SUPPORTO CANOTTO
O CANOTTO 		$592.92 1
016 8200804
NUT M8
DADO
IN STOCK 		$1.08 (85.2% off) 1
017 8401427
WASHER
RONDELLA 		$2.61 1
018 4331626
LEVER
LEVA 		$116.10 1
019 N10648502
SCREW M5X10
VITE
IN STOCK 		$1.25 (82.6% off) 4
020 4310698
GUIDE
GUIDA 		$449.39 1
021 4330628
LOCK KEY
CHIAVE Dl FERMO 		$87.57 1
022 8100401
SCREW
VITE 		$0.44 (94% off) 1
023 8700611
SCREW UNI 5931 6X14
VITE 		$0.46 4
024 WHT003052
WASHER 4,3
RONDELLA
IN STOCK 		$3.51 (52.4% off) 4
025 4330288
PIPE
TUBO PORTA ALBERO 		$917.26 1
