Steering 3

Lamborghini Diablo SE30 (1993-1995)

Find Your Part

Lamborghini Diablo SE30 (1993-1995) - Steering 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

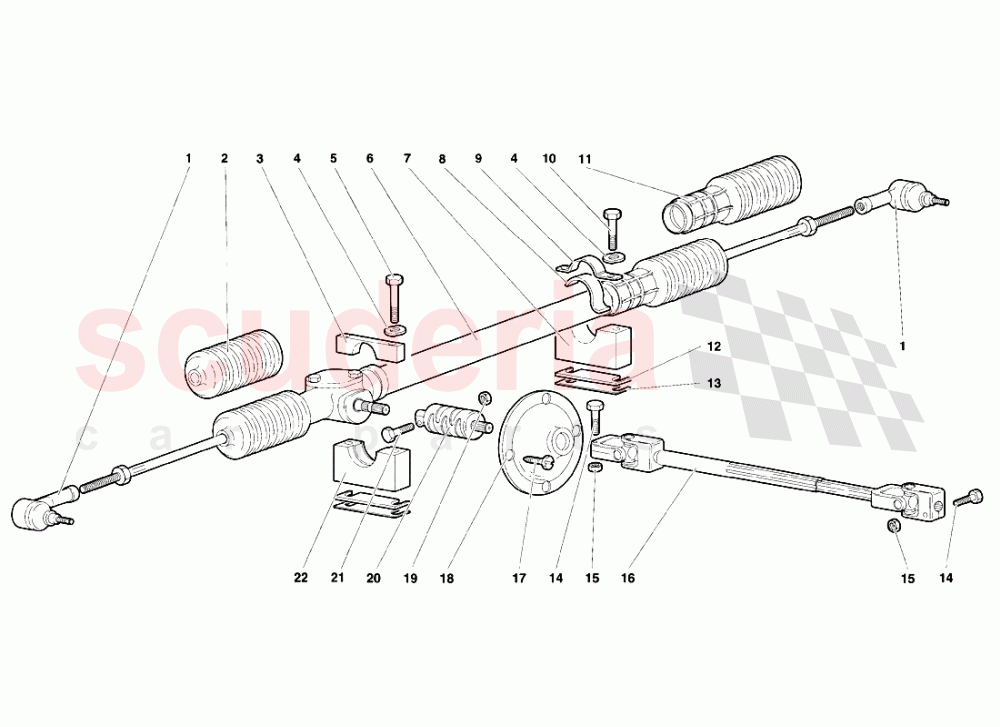

Steering 3 of Lamborghini Lamborghini Diablo SE30 (1993-1995) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 400419811A
Ball Joint Coupling
TESTA GIUNTO SFERICO
IN STOCK 		$1,298.08 2
002 4329544
BOOT
CUFFIA 		$18.78 1
003 4324742
RETAINER
CAVALLOTTO 		$190.47 1
004 WHT000768
WASHER
IN STOCK 		$1.83 (74.9% off) 4
005 8101039
SCREW
VITE 		$0.89 2
006 4329542
RACK
CREMAGLIERA 		$1,626.94 1
007 4333627
SUPPORT - SUPPORTO
O 		$282.28 1
008 4324743
FLEX PAD
SPESSORE IN GOMMA 		$11.13 1
009 4313892
RETAINER
CAVALLOTTO 		$103.51 1
010 8101045
SCREW
VITE 		$0.82 2
011 4329545
BOOT
CUFFIA 		$270.97 1
012 4333030
SHIM
SPESSORE Dl REGISTRO SP = 1 MM 		$1.80 1
013 4333035
SHIM
SPESSORE Dl REGISTRO SP = 0,5 MM 		$1.68 1
014 N01033520
SCREW M8X35
VITE
IN STOCK 		$3.15 (56.2% off) 2
015 N0111849
NUT
DADO
IN STOCK 		$2.14 (70.5% off) 2
016 4329850
JOINTED SHAFT
ALBERO SNODATO 		- 1 Enquire
017 8700673
SCREW
VITE 		$10.75 4
018 410422326
GASKET
FLANGIA 		$254.62 1
019 N01118312
HEXAGON NUT, SELF-LOCKING
DADO
IN STOCK 		$2.08 1
020 4330155
COUPLING
GIUNTO COLLASSABILE 		$258.82 1
021 8100636
SCREW
VITE 		$0.18 (97.6% off) 1
022 4333626
RETAINER
CAVALLOTTO 		$341.74 1
