Lamborghini Diablo GT (1999-2000) - Door Mechanism

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

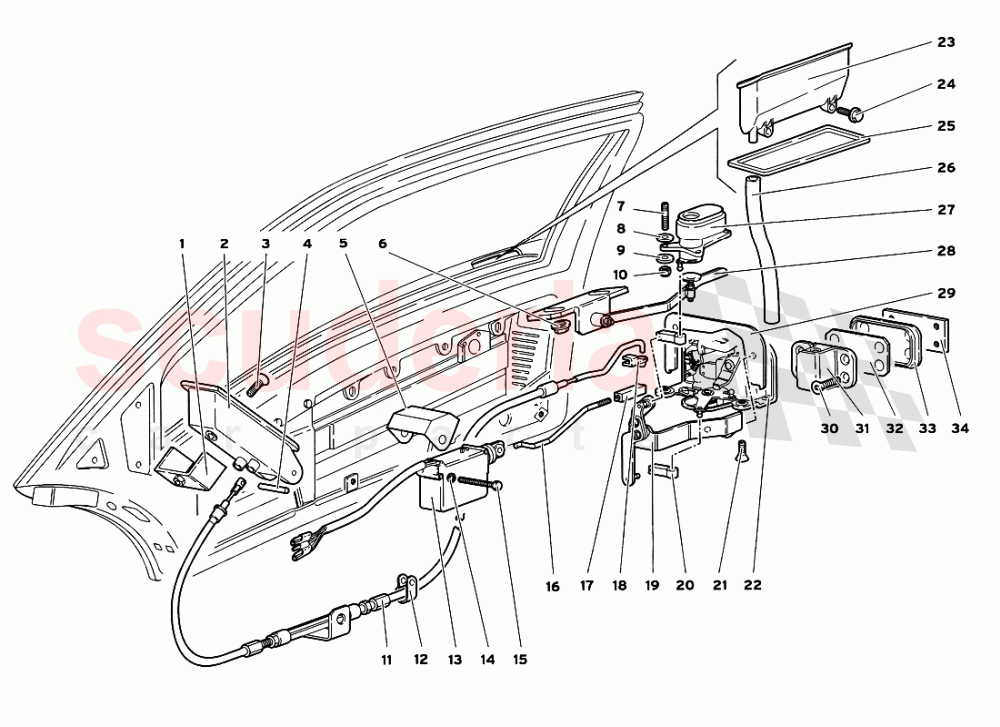

Door Mechanism of Lamborghini Lamborghini Diablo GT (1999-2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9421274
BRACKET
CAVALLOTTO 		$66.45 2
002 72004757
HANDLE
MANIGLIA 		- 2 Enquire
003 8700539
SCREW
VITE 		- 2 Enquire
004 8900305
PIN - SPINA
PERNO 		$0.25 (96.6% off) 2
005 9921113
LEFT SHIELD
PROTEZIONE SX 		$14.54 (8% off) 1
005 9921112
RIGHT SHIELD
PROTEZIONE DX 		$79.54 (7.9% off) 1
006 N01508213
HEXAGON COLLAR NUT
DADO
IN STOCK 		$0.19 4
007 9921221
STUD
PRIGIONIERO (L=18 MM) 		$3.99 (9.3% off) 2
007 8300403
STUD
PRIGIONIERO (L=21 MM) 		$24.53 (11% off) 4
008 8400401
WASHER
RONDELLA (DISTANZIALE) 		$0.12 1
009 8400401
WASHER
RONDELLA 		$0.12 6
010 WHT002959
CLAMPING NUT
DADO
IN STOCK 		$0.77 (89.4% off) 6
011 9421051
LEFT CABLE
CAVO SX 		$125.80 (7.5% off) 1
011 9421052
RIGHT CABLE
CAVO DX 		$271.81 (11.2% off) 1
012 8830907
STRAP
FASCETTA
IN STOCK 		$0.46 (93.7% off) 6
013 R1320007
LHS door actuator 		$919.70 1
013 R1320008
RHS door actuator 		$436.29 1
014 8400401
WASHER
RONDELLA 		$0.12 4
015 8100404
SCREW
VITE 		$0.59 4
016 9921211
LEFT TIE ROD
TIRANTE SX 		$20.50 (7.9% off) 1
016 9921204
RIGHT TIE ROD
TIRANTE DX 		$20.50 (7.9% off) 1
017 7021016
PAWL
NOTTOLINO 		- 2 Enquire
018 9421251
CLIP
MOLLETTA Dl AGGANCIO 		- 2 Enquire
019 9921225
RIGHT IDLE LEVER
RINVIO A LEVA DX 		$336.58 1
019 9921226
LEFT IDLE LEVER
RINVIO A LEVA SX 		$226.81 (8% off) 1
020 9421214
COUPLING
TESTINA 		- 4 Enquire
021 WHT003068
COUNTERSUNK BOLT
VITE
IN STOCK 		$1.33 (81.5% off) 8
022 410837016
RIGHT LOCK
SERRATURA SX 		$598.80 1
022 410837015
LEFT LOCK
SERRATURA DX 		$598.80 1
023 9421200
RIGHT HANDLE
MANIGLIA DX 		$319.82 1
023 9421201
LEFT HANDLE
MANIGLIA SX 		$335.31 1
024 N10718801
HEX COLLARED BOLT
VITE
IN STOCK 		$1.69 4
025 9421713
LEFT GASKET
GUARNIZIONESX 		$12.30 1
025 9421712
RIGHT GASKET
GUARNIZIONE DX 		$5.09 (8.3% off) 1
026 9421245
PIPE
TUBO 		$16.64 (7.8% off) 2
027 72005036
LH & RH DOOR BUTTONS 		$467.25 1
028 9921224
LEFT IDLE LEVER
RINVIO A LEVA SX 		$226.81 (8% off) 1
028 9921223
RIGHT IDLE LEVER
RINVIO A LEVA DX 		$226.81 (8% off) 1
029 9421272
LEFT GASKET
GUARNIZIONE SX 		- 1 Enquire
029 9421273
RIGHT GASKET
GUARNIZIONE DX 		- 1 Enquire
030 8700610
SCREW
VITE
IN STOCK 		$0.62 (91.5% off) 8
031 410831407A
Hinge Half Left Hand
RISCONTRO SX
IN STOCK 		$321.81 (20.9% off) 1
031 410831408A
Hinge Half Right hand
RISCONTRO DX 		$810.08 1
032 410837963
SPACER
DISTANZIALE
IN STOCK 		$15.19 4
032 410837964
SPACER
DISTANZIALE 		$14.83 4
033 410837899
ORNAMENT
IN STOCK 		$14.93 2
034 7021253
PLATE
PIASTRA 		$664.80 2
