Lamborghini Diablo GT (1999-2000) - Glass

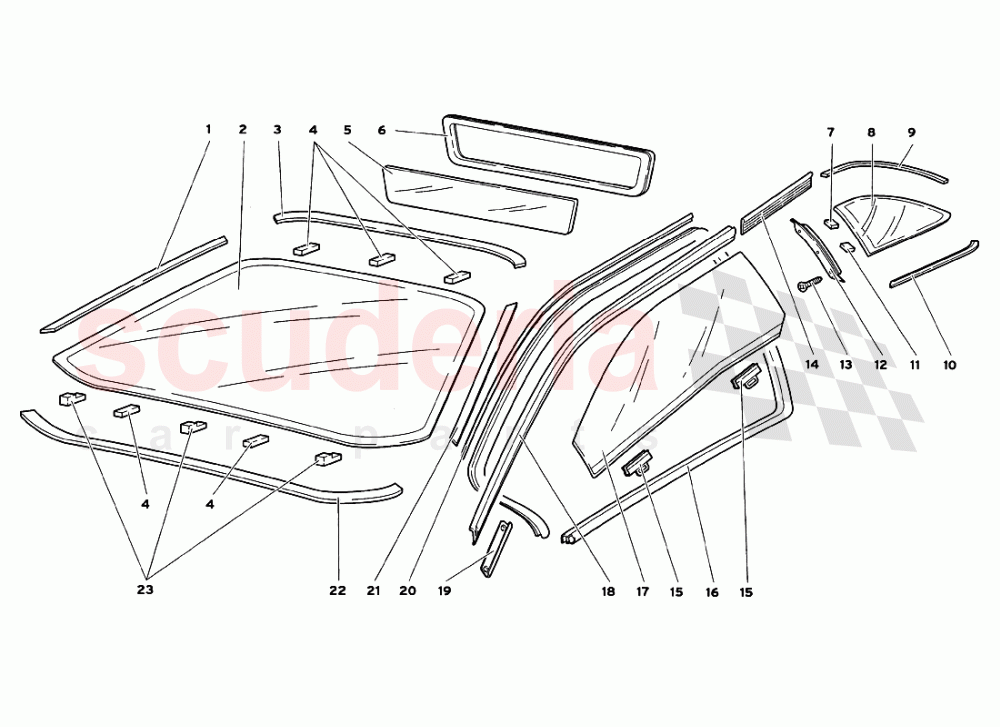

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9415204	RIGHT FRAME	9415204 RIGHT FRAME CORNICE DX	$387.88	1
002	9415107	FRONT GLASS	9415107 FRONT GLASS CRISTALLO ANTERIORE	$7,527.56	1
003	9415200	TOP FRAME	9415200 TOP FRAME CORNICE SUPERIORE	$494.62	1
004	410845235	WINDSHIELD SPACER IN STOCK	410845235 WINDSHIELD SPACER IN STOCK	$51.51	5
005	9418100	REAR GLASS	9418100 REAR GLASS CRISTALLO POSTERIORE	$793.50 MSRP: ~~889.00~~ (10.7% off)	1
006	9418103	GASKET	9418103 GASKET GUARNIZIONE	$564.15 MSRP: ~~611.00~~ (7.7% off)	1
007	400845633	QUARTER WINDOW GLASS SHIM	400845633 QUARTER WINDOW GLASS SHIM DISTANZIALE	$15.88	2
008	70004149	RIGHT HAND GLASS	70004149 RIGHT HAND GLASS CRISTALLO DX	$10,703.46	1
008	70004150	LEFT HAND GLASS	70004150 LEFT HAND GLASS CRISTALLO SX	$10,703.46	1
009	9417106	RIGHT FRAME	9417106 RIGHT FRAME CORNICE DX	$671.70	1
009	9417107	LEFT FRAME	9417107 LEFT FRAME CORNICE SX	$343.27	1
010	9417103	LEFT FRAME	9417103 LEFT FRAME CORNICE SX	$220.12	1
010	9417102	RIGHT FRAME	9417102 RIGHT FRAME CORNICE DX	$259.48	1
011	410845626	SPACER	410845626 SPACER	$11.17	2
012	9417105	LEFT FRAME	9417105 LEFT FRAME CORNICE SX	$435.17	1
012	9417104	RIGHT FRAME	9417104 RIGHT FRAME CORNICE DX	$581.13	1
013	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) VITE IN STOCK	$1.25 MSRP: ~~7.18~~ (82.6% off)	6
014	9421733	GASKET	9421733 GASKET GUARNIZIONE	$38.38	2
015	9421608	BRACKET	9421608 BRACKET STAFFA	$127.04	4
016	72010205	RHS GASKET	72010205 RHS GASKET	$666.08	1
016	72010206	LHS GASKET	72010206 LHS GASKET GUARNIZIONE	$821.29	1
017	72004148	LEFT DOOR GLASS	72004148 LEFT DOOR GLASS	$4,628.70	1
017	72004147	RIGHT DOOR GLASS	72004147 RIGHT DOOR GLASS	$4,627.69	1
018	72001177	GASKET	72001177 GASKET GUARNIZIONE	$506.80	2
019	72001470	PLATE	72001470 PLATE PIASTRINO	$115.27	2
020	9421708	RIGHT SUPPORT IN STOCK	9421708 RIGHT SUPPORT SUPPORTO DX IN STOCK	$360.28	1
020	9421709	LEFT SUPPORT	9421709 LEFT SUPPORT SUPPORTO SX	$350.03	1
021	9415205	LEFT FRAME	9415205 LEFT FRAME CORNICE SX	$490.59	1
022	9415201	BOTTOM FRAME	9415201 BOTTOM FRAME CORNICE INFERIORE	$441.91	1
023	410845235	WINDSHIELD SPACER IN STOCK	410845235 WINDSHIELD SPACER IN STOCK	$51.51	3
