Frame Elements of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

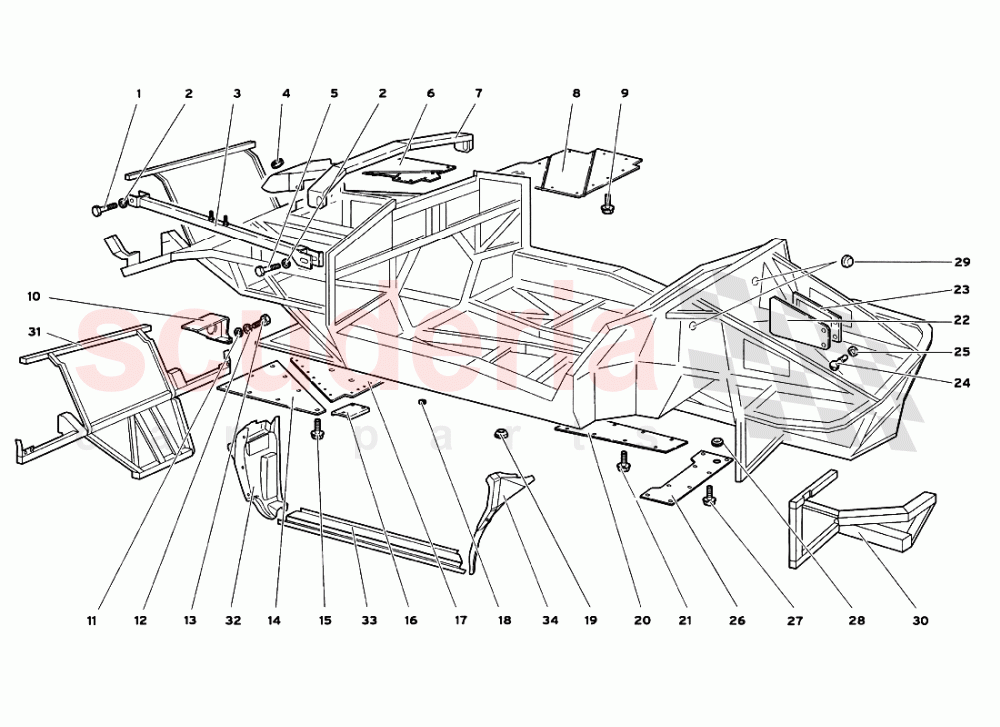

Lamborghini Diablo GT (1999-2000) - Frame Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N0147519	SCREW M8X50	N0147519 SCREW M8X50 VITE	$12.02	2
002	8400820	WASHER	8400820 WASHER RONDELLA	$16.55	4
003	4133595	LEFT CROSSRAIL	4133595 LEFT CROSSRAIL TRAVERSA SX	$382.28 MSRP: ~~430.00~~ (11.1% off)	1
003	4133596	RIGHT CROSSRAIL	4133596 RIGHT CROSSRAIL TRAVERSA DX	$382.28 MSRP: ~~430.00~~ (11.1% off)	1
004	8611606	GASKET	8611606 GASKET ANELLO COMMA	$1.61 MSRP: ~~7.04~~ (77.1% off)	2
005	8700846	SCREW	8700846 SCREW VITE	$2.03	2
006	68005018	LEFT SUPPORT	68005018 LEFT SUPPORT SUPPORTO SX	$168.75	1
006	68005017	RIGTH SUPPORT	68005017 RIGTH SUPPORT SUPPORTO DX	$184.25	1
007	4131512	CROSSRAIL	4131512 CROSSRAIL TRAVERSA	$382.28 MSRP: ~~430.00~~ (11.1% off)	1
008	4135417	PANEL	4135417 PANEL PANNELLO	$526.93	1
009	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	11
010	4137167	SUPPORT - SUPPORTO SERBATOIO BENZINA	4137167 SUPPORT - SUPPORTO SERBATOIO BENZINA O SERBATOIO BENZINA	-	1	Enquire
011	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 RONDELLA IN STOCK	$1.43	2
012	8410820	WASHER	8410820 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	2
013	8100812	SCREW	8100812 SCREW VITE	$0.33 MSRP: ~~7.33~~ (95.5% off)	2
014	4135426	PANEL	4135426 PANEL PANNELLO	$91.08	1
015	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	8
016	4133887	REINFORCEMENT	4133887 REINFORCEMENT RINFORZO	$30.29	2
017	4135423	PANEL	4135423 PANEL PANNELLO	$231.90 MSRP: ~~261.00~~ (11.1% off)	1
018	4134333	PLUG	4134333 PLUG TAPPO	$0.63 MSRP: ~~7.26~~ (91.3% off)	4
019	4131483	PLUG	4131483 PLUG TAPPO	-	8	Enquire
020	4130445	PANEL	4130445 PANEL PANNELLO	$319.43	1
021	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	8
022	4130207	LEFT PANEL	4130207 LEFT PANEL PANNELLO ISPEZIONE ALZAFARI SX	$200.19	1
022	4130206	RIGHT PANEL	4130206 RIGHT PANEL PANNELLO ISPEZIONE ALZAFARI DX	$91.08	1
023	9490205	LEFT GASKET	9490205 LEFT GASKET GUARNIZIONE SX	-	1	Enquire
023	410805349	RH GASKET	410805349 RH GASKET GUARNIZIONE DX	$21.34	1
024	4131085	PIN	4131085 PIN PERNO AGGANCIO RAPIDO	-	4	Enquire
025	7014263	RUBBER WASHER	7014263 RUBBER WASHER RONDELLA	-	4	Enquire
026	4132486	PANEL	4132486 PANEL PANNELLO	$225.01 MSRP: ~~245.50~~ (8.3% off)	1
027	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	8
028	8612503	GASKET	8612503 GASKET ANELLO COMMA	$13.03 MSRP: ~~14.65~~ (11.1% off)	1
029	8931407	PLUG	8931407 PLUG TAPPO	$1.10 MSRP: ~~7.15~~ (84.6% off)	2
030	4137963	FRONT LH FRAME	4137963 FRONT LH FRAME TELAIETTO ANT. SX	$882.61	1
030	4137964	FRONT RH FRAME	4137964 FRONT RH FRAME TELAIETTO ANT. DX	$9,562.71	1
031	41004924	REAR FRAME	41004924 REAR FRAME TELAIETTO POSTERIORE	$9,140.82	1
032	9409132	REAR RH COVERING	9409132 REAR RH COVERING RIVESTIMENTO DX POSTERIORE	$577.44 MSRP: ~~631.00~~ (8.5% off)	1
032	9409133	REAR LH COVERING	9409133 REAR LH COVERING RIVESTIMENTO SX POSTERIORE	$638.27 MSRP: ~~695.00~~ (8.2% off)	1
033	9409134	MIDDLE RH COVERING	9409134 MIDDLE RH COVERING RIVESTIMENTO DX CENTRALE	$106.32 MSRP: ~~116.00~~ (8.3% off)	1
033	9409135	MIDDLE LH COVERING	9409135 MIDDLE LH COVERING RIVESTIMENTO SX CENTRALE	$106.32 MSRP: ~~116.00~~ (8.3% off)	1
034	9409137	FRONT LH COVERING	9409137 FRONT LH COVERING RIVESTIMENTO SX ANTERIORE	$478.71 MSRP: ~~522.00~~ (8.3% off)	1
034	9409136	FRONT RH COVERING	9409136 FRONT RH COVERING RIVESTIMENTO DX ANTERIORE	$478.71 MSRP: ~~522.00~~ (8.3% off)	1
