Front Body Elements Front Body Elements of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

Lamborghini Diablo GT (1999-2000) - Front Body Elements Front Body Elements

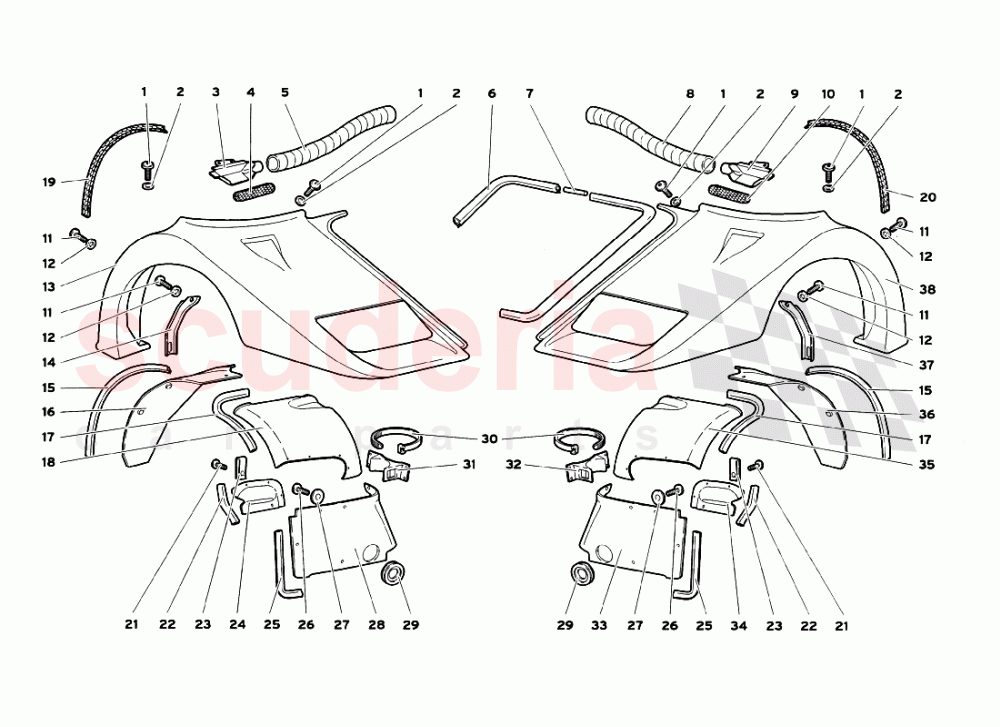

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8700692	SCREW	8700692 SCREW VITE	$0.19 MSRP: ~~7.36~~ (97.4% off)	14
002	8400629	WASHER	8400629 WASHER RONDELLA	$1.34 MSRP: ~~7.11~~ (81.2% off)	14
003	74004716	RIGHT AIR INTAKE	74004716 RIGHT AIR INTAKE PRESA D'ARIA DX	$155.07	1
004	74004718	RIGHT NET	74004718 RIGHT NET RETE DX	$79.89	1
005	74005416	RIGHT PIPE	74005416 RIGHT PIPE TUBO DX	$100.30	1
006	9490111	GASKET	9490111 GASKET GUARNIZIONE	$41.57	1
007	9490112	UNION	9490112 UNION ELEMENTO COLLEGAMENTO	$21.84 MSRP: ~~23.80~~ (8.2% off)	1
008	74005417	LEFT PIPE	74005417 LEFT PIPE TUBO SX	$100.30	1
009	74004717	LEFT AIR INTAKE	74004717 LEFT AIR INTAKE PRESA D'ARIA SX	$155.07	1
010	74004719	LEFT NET	74004719 LEFT NET RETE SX	-	1	Enquire
011	8100601	SCREW	8100601 SCREW VITE	$0.25	10
012	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	10
013	66004662	R. FR.MUDGU./FEN.	66004662 R. FR.MUDGU./FEN. PARAFANGO ANT. DX	$10,477.66	1
014	9410109	RIGHT BRACKET	9410109 RIGHT BRACKET STAFFA DX	$240.79	1
015	68006620	GASKET	68006620 GASKET GUARNIZIONE	$80.23	2
016	68006563	FR. WHEELBOX	68006563 FR. WHEELBOX PASSARUOTA	$687.15	1
017	68003623	GASKET	68003623 GASKET GUARNIZIONE	$22.03 MSRP: ~~23.95~~ (8% off)	2
018	68004700	FR. WHEELBOX	68004700 FR. WHEELBOX PASSARUOTA ANT. DX SUP.	$269.78	1
019	74005376	RIGHT NET	74005376 RIGHT NET RETE DX	$189.08	1
020	74005377	LEFT NET	74005377 LEFT NET RETE SX	$257.68	1
021	WHT003066	SCREW IN STOCK	WHT003066 SCREW IN STOCK	$13.12	6
022	68003622	GASKET	68003622 GASKET GUARNIZIONE	$9.17	2
023	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$14.44	8
024	68004704	RIGHT LID INSPECTION	68004704 RIGHT LID INSPECTION SPORTELLO ISPEZIONE DX	$201.09	1
025	9411408	GASKET	9411408 GASKET GUARNIZIONE	$15.39 MSRP: ~~16.80~~ (8.4% off)	2
026	WHT003066	SCREW IN STOCK	WHT003066 SCREW IN STOCK	$13.12	16
027	N91115501	WASHER	N91115501 WASHER RONDELLA	$1.16 MSRP: ~~7.33~~ (84.2% off)	18
028	68004698	RIGHT FR. WHEELBOX	68004698 RIGHT FR. WHEELBOX PASSARUOTA ANT. DX	$400.82	1
029	9411418	GASKET	9411418 GASKET GUARNIZIONE	$31.62	2
030	8830306	CLAMP	8830306 CLAMP FASCETTA	$3.11	2
031	410805890	RIGHT SUPPORT	410805890 RIGHT SUPPORT CAVALLOTTO DX	$304.13	1
032	9411422	LEFT RETAINER	9411422 LEFT RETAINER CAVALLOTTO SX	-	1	Enquire
033	68004699	LEFT FR. WHEELBOX	68004699 LEFT FR. WHEELBOX PASSARUOTA ANT. SX	$269.78	1
034	68004705	LEFT LID INSPECTION	68004705 LEFT LID INSPECTION SPORTELLO ISPEZIONE SX	$240.97 MSRP: ~~262.00~~ (8% off)	1
035	68004701	FR. WHEELBOX	68004701 FR. WHEELBOX PASSARUOTA ANT. SX SUP.	$495.74	1
036	68006564	FR. WHEELBOX	68006564 FR. WHEELBOX PASSARUOTA	$687.15	1
037	9410110	LEFT BRACKET	9410110 LEFT BRACKET STAFFA SX	$240.79	1
038	66004663	LEFT FR.MUDGU./FEN.	66004663 LEFT FR.MUDGU./FEN. PARAFANGO ANT. SX	$10,477.66	1
