Crankcase and Lower Mounting of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

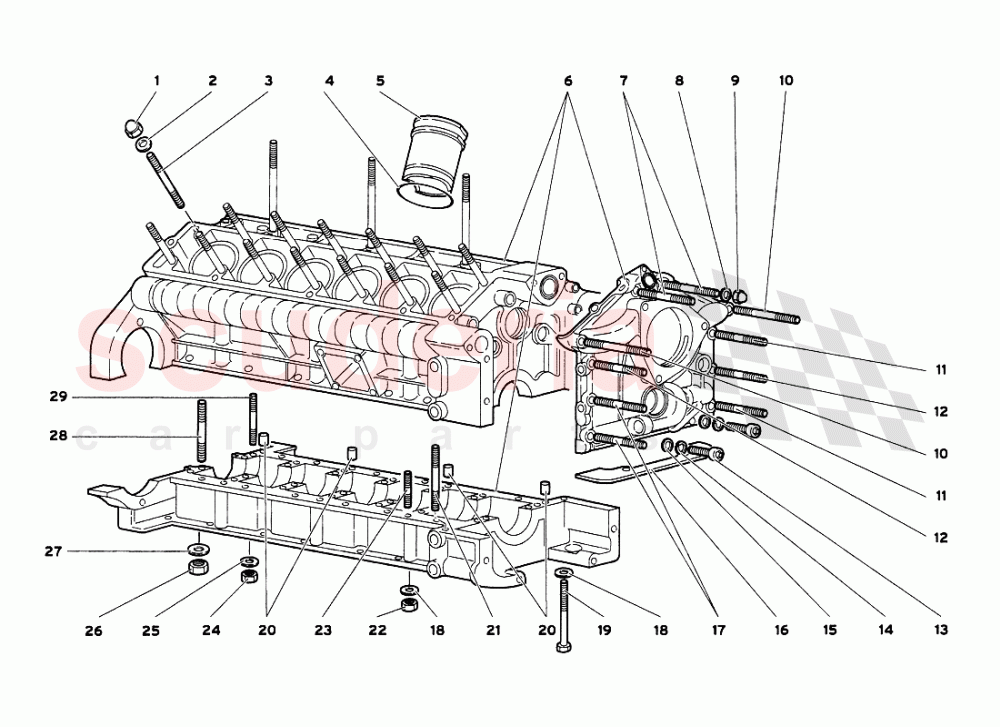

Lamborghini Diablo VT 6.0 (2000-2001) - Crankcase and Lower Mounting

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1120924	CAP NUT IN STOCK	1120924 CAP NUT IN STOCK	$34.06 MSRP: ~~38.15~~ (10.7% off)	28
002	8401230	WASHER IN STOCK	8401230 WASHER IN STOCK	$54.27	28
003	1824761	STUD BOLT	1824761 STUD BOLT	$95.81	28
004	WHT003085	SEAL RING	WHT003085 SEAL RING (Included in the engine gasket kit)	$4.13 MSRP: ~~7.06~~ (41.5% off)	12
005	1829442	CYLINDER	1829442 CYLINDER	$441.36 MSRP: ~~479.00~~ (7.9% off)	12
007	8300833	STUD BOLT	8300833 STUD BOLT	$5.69 MSRP: ~~6.30~~ (9.7% off)	2
008	N0122094	WASHER IN STOCK	N0122094 WASHER IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	9
009	8200816	NUT	8200816 NUT	$4.80	9
010	8300905	STUD	8300905 STUD	$17.37 MSRP: ~~19.45~~ (10.7% off)	2
011	8300902	STUD BOLT	8300902 STUD BOLT	$8.64 MSRP: ~~9.55~~ (9.5% off)	4
012	N0444416	STUD BOLT IN STOCK	N0444416 STUD BOLT IN STOCK	$3.66 MSRP: ~~7.04~~ (48% off)	2
013	8700822	SCREW	8700822 SCREW	$0.71 MSRP: ~~7.29~~ (90.3% off)	2
014	N0152785	WASHER IN STOCK	N0152785 WASHER IN STOCK	$0.44	2
015	N0122094	WASHER IN STOCK	N0122094 WASHER IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	2
016	1232219	GASKET	1232219 GASKET (Included in the engine gasket kit)	$4.40 MSRP: ~~4.85~~ (9.3% off)	1
017	8300902	STUD BOLT	8300902 STUD BOLT	$8.64 MSRP: ~~9.55~~ (9.5% off)	2
018	8410815	WASHER	8410815 WASHER	$0.21 MSRP: ~~7.37~~ (97.2% off)	15
019	8100871	SCREW	8100871 SCREW	$3.88 MSRP: ~~4.30~~ (9.8% off)	2
020	8851105	DOWEL	8851105 DOWEL	-	4	Enquire
021	8300897	STUD	8300897 STUD	$13.93 MSRP: ~~15.50~~ (10.1% off)	1
022	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.94	13
023	8300803	STUD BOLT	8300803 STUD BOLT	$12.65	10
023	8300826	STUD BOLT	8300826 STUD BOLT	$10.86	2
024	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.94	14
025	8400820	WASHER	8400820 WASHER	$16.70	14
026	8201221	NUT	8201221 NUT	$3.02	14
027	8401227	WASHER	8401227 WASHER	$15.69	14
028	8301238	STUD BOLT	8301238 STUD BOLT	$15.69	14
029	8300917	STUD BOLT	8300917 STUD BOLT	$11.99	14
