Accessories For Left Cylinder Head

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Accessories for Left Cylinder Head

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

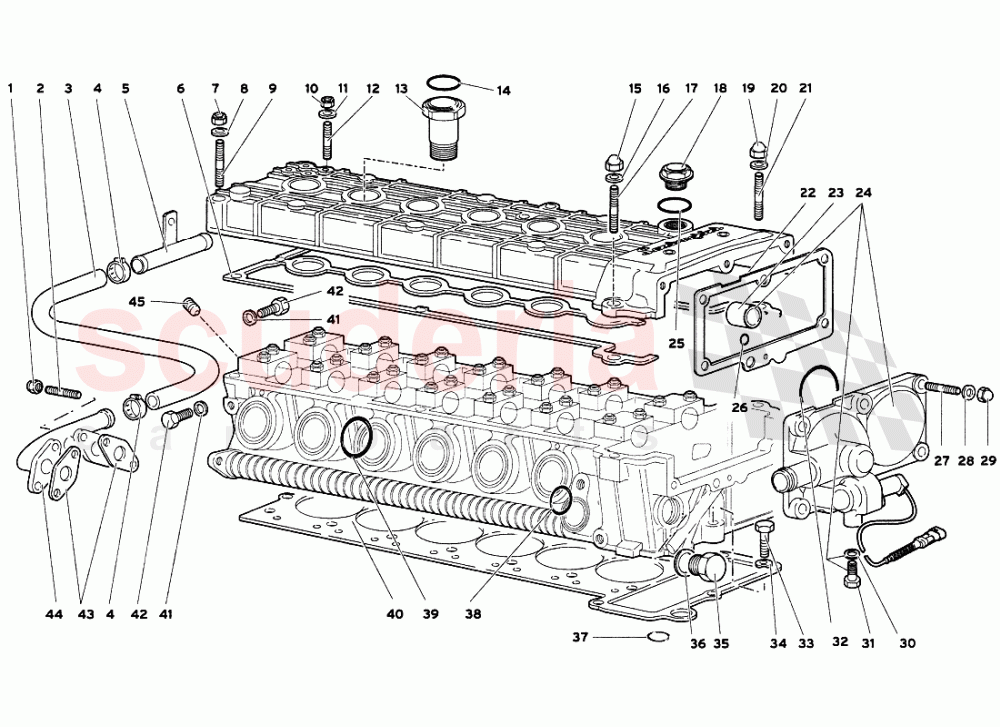

Accessories for Left Cylinder Head of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8200605
NUT
IN STOCK 		$2.85 4
002 8300611
STUD 		$6.62 (9.3% off) 4
003 410819370
Sleeve for Auxiliary Water Pump
IN STOCK 		$61.05 1
004 8832003
CLAMP
IN STOCK 		$41.10 2
005 45006927
INTERMEDIATE JUNCTION 		- 1 Enquire
006 7M103483A
GASKET CYLINDER HEAD
(Includes the engine gasket kit & cover gasket kit)
IN STOCK 		$225.07 1
007 8200605
NUT
IN STOCK 		$2.85 1
008 8410602
WASHER
IN STOCK 		$41.82 1
009 8300650
STUD BOLT 		$11.23 (10.5% off) 1
010 8200605
NUT
IN STOCK 		$2.85 4
011 N01152427
WASHER
IN STOCK 		$0.28 4
012 8300613
STUD BOLT 		$4.62 (9.4% off) 4
013 11004007
UNION 		$174.71 6
014 8602304
SEAL RING
IN STOCK 		$9.46 6
015 8200605
NUT
IN STOCK 		$2.85 1
016 8410602
WASHER
IN STOCK 		$41.82 1
017 8300637
STUD BOLT 		$13.38 (10.8% off) 1
018 11006480
FILLERCAP 		$220.85 1
019 8200605
NUT
IN STOCK 		$2.85 1
020 8410602
WASHER
IN STOCK 		$41.82 1
021 8300651
STUD BOLT 		$11.06 (10.1% off) 1
022 11004551
GASKET
(Includes the engine gasket kit & cover gasket kit) 		$33.41 1
023 11000038
BUSHING 		$52.08 1
024 11009498
COMPLETE COVER WITH SOLENOID VALVE 		$1,185.16 (7.4% off) 1
025 WHT003062
SEAL RING 		$6.20 1
026 8600905
SEAL RING
(Included in the engine gasket kit) 		$8.85 (10.2% off) 1
027 WHT003028
THREADED PIN 		$20.78 7
028 WHT000771
WASHER
IN STOCK 		$1.11 7
029 8200816
NUT 		$4.79 7
030 WHT003041
WASHER
(Includes the engine gasket kit & cover gasket kit)
IN STOCK 		$0.83 (88.6% off) 1
031 8100631
SCREW 		$0.11 (98.5% off) 1
032 8606205
O-Ring
(Includes the engine gasket kit & cover gasket kit) 		$4.00 3
033 N01033520
SCREW M8X35
IN STOCK 		$3.14 (56.3% off) 1
034 WHT000771
WASHER
IN STOCK 		$1.11 1
035 7M103035
PLUG 		$59.25 1
036 8402609
WASHER
(Included in the engine gasket kit) 		- 1 Enquire
037 8601203
SEAL 		$0.82 1
038 8603503
SEAL RING
(Includes the engine gasket kit & cover gasket kit) 		$3.88 2
039 8604703
SEAL RING
(Includes the engine gasket kit & cover gasket kit) 		$7.62 (9.8% off) 6
040 11000988
Gasket
(Included in the engine gasket kit) 		$377.60 1
041 8400818
WASHER 		- 2 Enquire
042 8100839
SCREW 		$0.43 (94.1% off) 2
043 17006615
GASKET
(Included in the engine gasket kit) 		- 2 Enquire
044 1734153
PIPE 		$692.03 1
045 8700644
SCREW 		$0.35 (95.2% off) 1
