Timing System 2

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Timing System 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

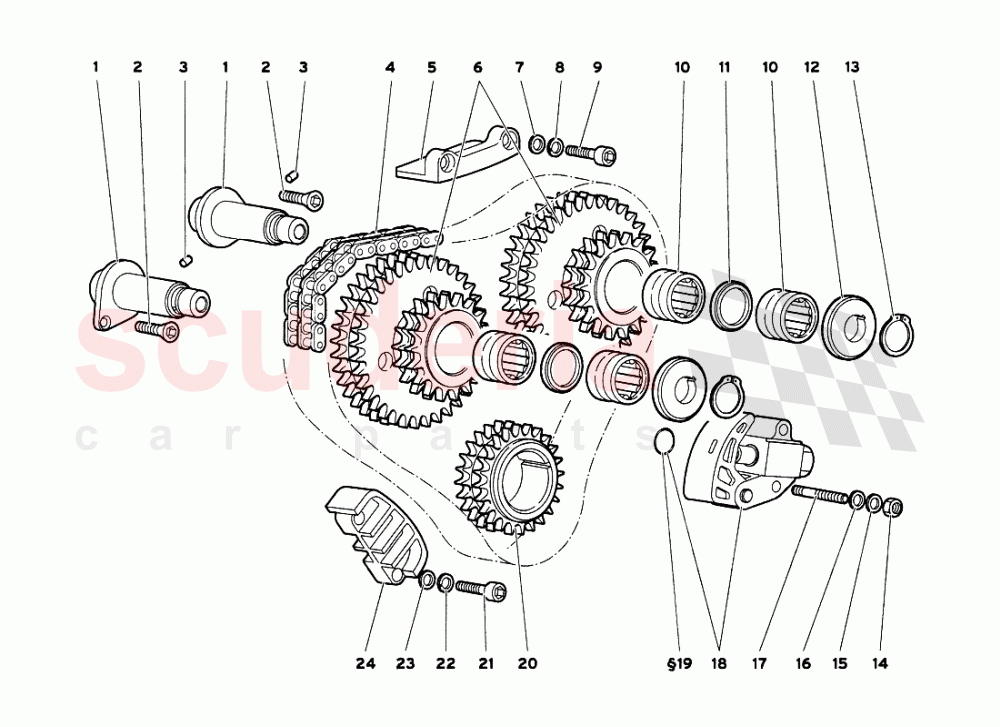

Timing System 2 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1232199
PIN 		- 2 Enquire
002 WHT003068
COUNTERSUNK BOLT
IN STOCK 		$1.33 (81.5% off) 2
003 8850302
PIN - SPINA 		- 2 Enquire
004 12001137
CHAIN 		- 1 Enquire
005 7M109201
Guide 		$67.83 1
006 7M109569
GEAR 		$1,592.69 2
007 1231040
WASHER 		- 2 Enquire
008 8410820
WASHER 		$0.18 (97.6% off) 2
009 8700850
SCREW 		- 2 Enquire
010 8522508
BEARING 		- 4 Enquire
011 7M109135
SPACER 		$202.95 2
012 12004032
WASHER 		- 2 Enquire
013 WHT002646
RETAINING RING
IN STOCK 		$1.01 (86% off) 2
014 N01100637
NUT M6
IN STOCK 		$0.30 (95.9% off) 2
015 8410602
WASHER
IN STOCK 		$41.70 2
016 N01152427
WASHER
IN STOCK 		$0.28 2
017 8300660
STUD BOLT 		$13.99 2
018 7M109077A
CHAIN TIGHTENER WITH RING 		$765.56 1
019 8601501
SEAL
(Included in the engine gasket kit) 		$5.41 (9.8% off) 1
020 1232196
GEAR 		$2,905.73 1
021 8700848
SCREW 		- 2 Enquire
022 8410820
WASHER 		$0.18 (97.6% off) 2
023 WHT002962
WASHER 14X8.4X1.5
IN STOCK 		$0.32 (95.6% off) 2
024 7M109203
Guide
IN STOCK 		$1,904.55 1
