Left Cylinder Head

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Left Cylinder Head

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

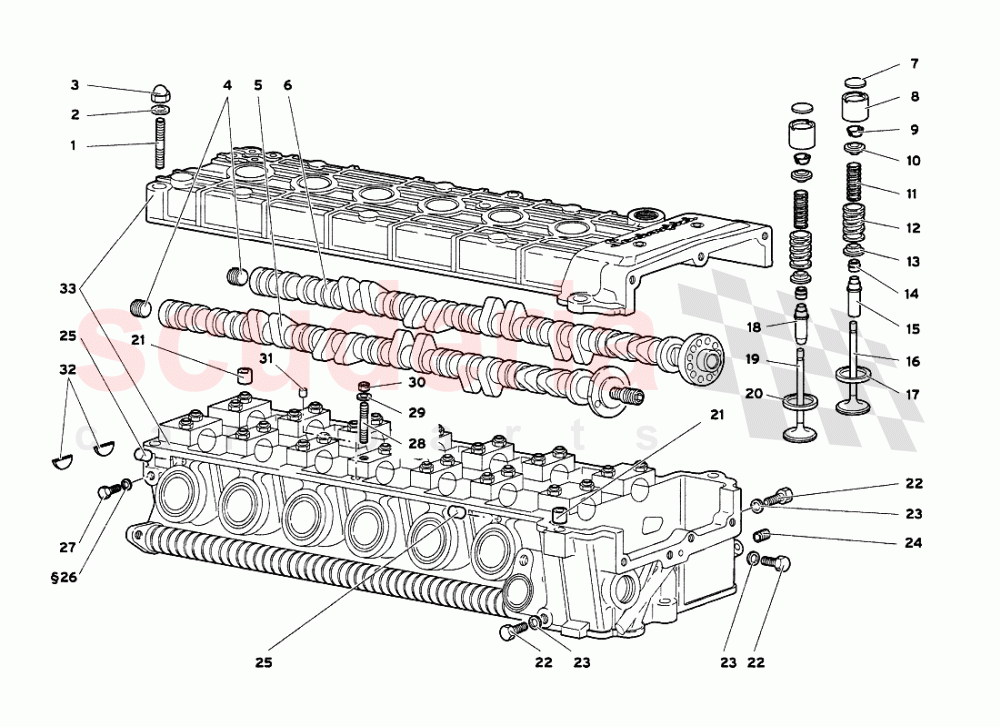

Left Cylinder Head of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8300649
STUD BOLT 		$8.83 (10.4% off) 1
002 8410602
WASHER
IN STOCK 		$41.75 1
003 8200605
NUT
IN STOCK 		$2.85 1
004 8931409
PLUG 		$11.50 (10.5% off) 2
005 12001311
CAMSHAFT 		- 1 Enquire
006 1232711
CAMSHAFT 		$10,280.65 1
007 1220903
SHIM 		- 24 Enquire
007 1220902
SHIM 		- 24 Enquire
007 1220901
SHIM 		- 24 Enquire
007 1220905
SHIM 		- 24 Enquire
007 1220904
SHIM 		- 24 Enquire
007 1220906
SHIM 		- 24 Enquire
007 1220900
SHIM 		- 24 Enquire
007 1220893
SHIM 		- 24 Enquire
007 1220899
SHIM 		- 24 Enquire
007 1220897
SHIM 		- 24 Enquire
007 1220898
SHIM 		- 24 Enquire
007 1220896
SHIM 		- 24 Enquire
007 1220895
SHIM 		- 24 Enquire
007 1220892
Valve shims
4.00 MM 		- 24 Enquire
007 7M109320S
4.10 MM ADJUSTMENT SHIM 		$52.41 24
007 7M109320M
3.85 MM ADJUSTMENT SHIM 		$10.56 24
007 1220884
SHIM 		- 24 Enquire
007 7M109320N
3.90 MM ADJUSTMENT SHIM 		$52.41 24
007 1220891
SHIM 		- 24 Enquire
007 1220887
SHIM 		- 24 Enquire
007 1220885
SHIM 		- 24 Enquire
007 1220886
SHIM 		- 24 Enquire
007 7M109320L
3.80 MM ADJUSTMENT SHIM 		$52.41 24
007 1220879
SHIM 		- 24 Enquire
007 1220878
SHIM 		- 24 Enquire
007 1220883
SHIM 		- 24 Enquire
007 1220877
SHIM 		- 24 Enquire
007 1220881
SHIM 		- 24 Enquire
007 1220882
SHIM 		- 24 Enquire
007 1220880
SHIM 		- 24 Enquire
008 7M109309
VALVE CONTROL TAPPET 		$34.52 24
009 1235955
TAPPET LOCK CONE 		- 48 Enquire
010 7M109641
TAPPET UPPER PLATE 		$17.94 24
011 7M109633A
INNER SPRING 		$5.83 24
012 7M109623A
OUTER SPRING 		$18.01 24
013 1220993
TAPPET PLATE 		- 24 Enquire
014 7M109675
SEAL RING 		$14.83 48
015 1237072
EXHAUST VALVE GUIDE 		- 12 Enquire
016 7M109611
EXHAUST VALVE 		$97.92 12
017 1234791
VALVE SEAT 		- 12 Enquire
018 1237071
INTAKE VALVE GUIDE 		- 12 Enquire
019 7M109601
INTAKE VALVE
VALVOLA ASPIRAZIONE 		$68.28 12
020 1234790
VALVE SEAT 		- 12 Enquire
021 8800604
BUSHING 		- 2 Enquire
022 8100631
SCREW 		$0.11 (98.5% off) 3
023 WHT003041
WASHER
(Includes the engine gasket kit & cover gasket kit)
IN STOCK 		$0.83 (88.6% off) 3
024 8840802
HELI-COIL 		$3.01 (7.4% off) 12
025 1122089
DOWEL 		$15.64 (11.1% off) 2
026 8400818
WASHER
(Included in the engine gasket kit) 		- 3 Enquire
027 8100839
SCREW 		$0.43 (94.1% off) 3
028 8300666
STUD BOLT 		$39.36 (11% off) 28
029 8410602
WASHER
IN STOCK 		$41.75 28
030 N01100637
NUT M6
IN STOCK 		$0.30 (95.9% off) 28
031 8850302
PIN - SPINA 		- 2 Enquire
032 11003411
COVER
(Includes the engine gasket kit & cover gasket kit) 		- 2 Enquire
033 460132011
LH CYLINDER HEAD 		$18,761.64 1
