Lamborghini Diablo (1990-1998) - Handbrake (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

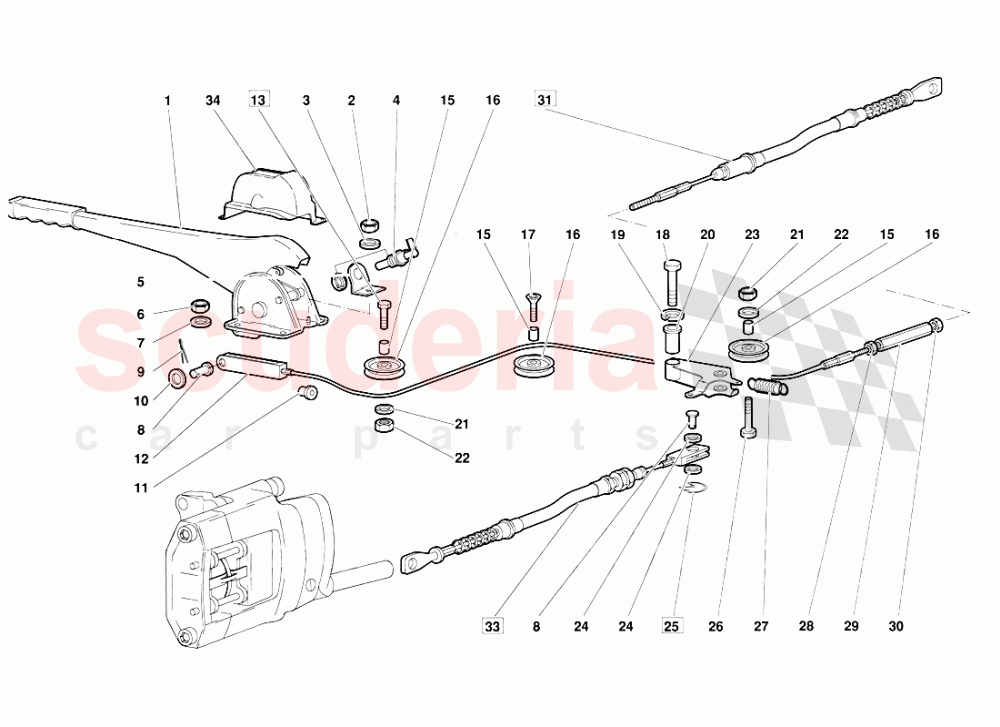

Handbrake (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 3329651
LEVER
(Valid for June 1992 version) LEVA FRENO A MANO 		$277.15 1
002 N0211963
NUT
(Valid for June 1992 version) DADO
IN STOCK 		$0.72 1
003 WHT001187
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.76 (89.5% off) 1
004 3319356
SWITCH
(Valid for June 1992 version) INTERRUTTORE 'PER SPIA 		$32.79 1
005 3330814
SUPPORT - SUPPORTO
(Valid for June 1992 version) O 		$102.81 1
006 N01118312
HEXAGON NUT, SELF-LOCKING
(Valid for June 1992 version) DADO
IN STOCK 		$2.07 4
007 N01152427
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.28 4
008 410609789
JOURNAL
(Valid for June 1992 version) PERNO 		$28.70 2
009 8820201
SPLIT PIN
(Valid for June 1992 version) COPIGLIA 		$6.06 (8.2% off) 1
010 N0122094
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$1.44 (79.9% off) 1
011 3330880
RUBBER BUSHING
(Valid for June 1992 version) BOCCOLA COMMA 		- 1 Enquire
012 3330816
TIE ROD
(Valid for June 1992 version) TIRANTE CENTRALE 		$255.26 1
013 8100810
SCREW
(Valid for June 1992 version) VITE (sostituisce 008100834) 		- 1 Enquire
014 N0152785
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.44 1
015 3330827
BUSHING
(Valid for June 1992 version) BOCCOLA 		- 3 Enquire
016 3330826
PULLEY
(Valid for June 1992 version) CARRUCOLA 		$49.03 3
017 8700851
SCREW
(Valid for June 1992 version) VITE 		$0.77 (89.4% off) 1
018 8101407
SCREW M14X55
(Valid for June 1992 version) VITE 		$4.95 (9.2% off) 1
019 8411502
WASHER
(Valid for June 1992 version) RONDELLA 		$2.37 1
020 3330828
SPACER
(Valid for June 1992 version) DISTANZIALE 		- 1 Enquire
021 N0111849
NUT
(Valid for June 1992 version) DADO
IN STOCK 		$2.13 (70.6% off) 2
022 N0122094
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$1.44 (79.9% off) 2
023 3330653
ROCKER
(Valid for June 1992 version) BILANCIERE 		$586.59 1
024 N0122094
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$1.44 (79.9% off) 2
025 4207085
CLIP
(Valid for June 1992 version) FERMO (dalla 12621) (sostituisce 008820104) 		$79.60 1
026 8100810
SCREW
(Valid for June 1992 version) VITE 		- 1 Enquire
027 3330829
SPRING
(Valid for June 1992 version) MOLLA 		- 1 Enquire
028 8200607
NUT M6
(Valid for June 1992 version) DADO FILETT. SINISTRORSA 		$11.87 (10.8% off) 1
029 413609206
ADJUSTING SLEEVE
(Valid for June 1992 version) REGISTRO 		$61.11 1
030 N01100632
NUT M6
(Valid for June 1992 version) DADO 		$4.20 (42.7% off) 1
031 3330820
TIE ROD
(Valid for June 1992 version) TIRANTE DESTRO (fino 12620) 		$106.73 1
031 3332672
TIE ROD
(Valid for June 1992 version) TIRANTE DESTRO (dalla 12621) 		- 1 Enquire
032 3330831
TIE ROD
(Valid for June 1992 version) TIRANTE SINISTRO (INTERNO) (particolare eliminato) 		$106.03 4
033 3330835
TIE ROD
(Valid for June 1992 version) TIRANTE SINISTRO (fino 12620) 		$94.50 1
033 3332751
LEFT TIE ROD
(Valid for June 1992 version) TIRANTE SINISTRO (dalla 12621) 		$165.95 1
034 9458315
CASE
(Valid for June 1992 version)COPRI LEVA 		$437.94 1
