Brake System of Lamborghini Lamborghini Diablo (1990-1998)

View All

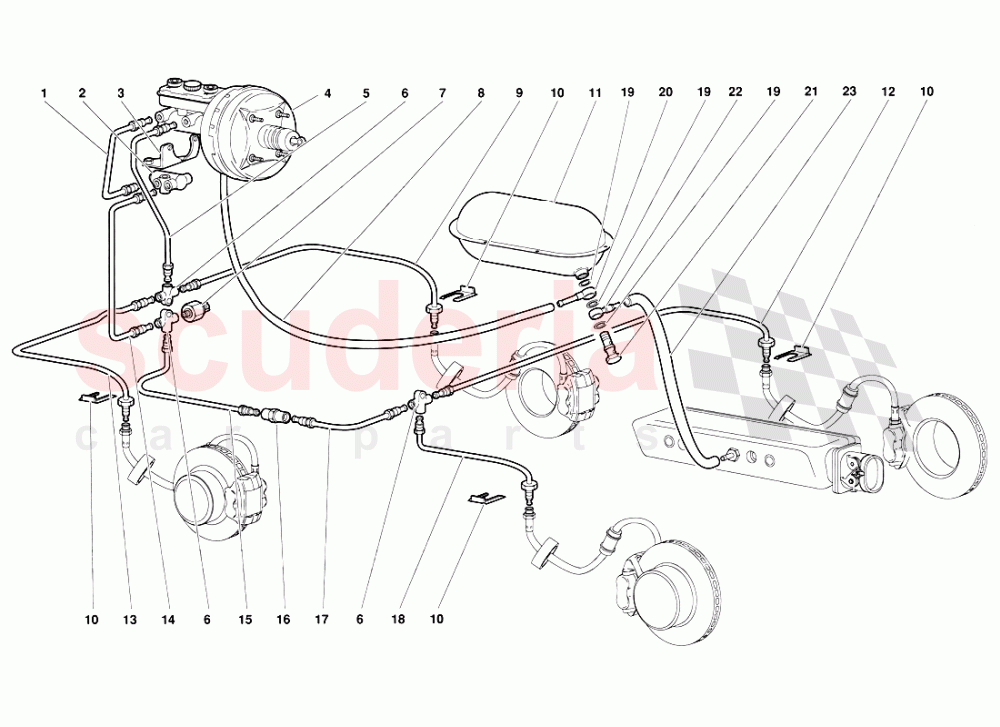

Lamborghini Diablo (1990-1998) - Brake System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	3231525	PIPE	3231525 PIPE TUBO	$89.81	1
002	3229833	BRAKE COMPENSATOR	3229833 BRAKE COMPENSATOR RIPARTITORE Dl PRESSIONE	$435.79	1
003	4232570	SUPPORT - SUPPORTO	4232570 SUPPORT - SUPPORTO O	$88.77	1
004	4224655	BRAKE-SERVO	4224655 BRAKE-SERVO LHD & RHD	$2,070.05	1
005	3131522	PIPE	3131522 PIPE TUBO	$148.54	1
006	3208682	CONNECTION	3208682 CONNECTION RACCORDO	$51.26	3
007	3208693	STOP SWITCH	3208693 STOP SWITCH INTERRUTTORE STOP	$113.16	1
008	3226068	PIPE	3226068 PIPE TUBO	$173.97 MSRP: ~~195.00~~ (10.8% off)	1
009	3131524	PIPE	3131524 PIPE TUBO	$39.08	1
010	191611715	HOSE BRACKET	191611715 HOSE BRACKET PIASTRA	$1.94 MSRP: ~~7.14~~ (72.8% off)	4
011	3204974	Vacum tank	3204974 Vacum tank SERBATOIO A DEPRESSIONS	$4,489.70	1
012	3231506	PIPE	3231506 PIPE TUBO	-	1	Enquire
013	3131523	PIPE	3131523 PIPE TUBO	$98.71	1
014	3231526	PIPE	3231526 PIPE TUBO	$145.65	1
015	3231199	PIPE	3231199 PIPE TUBO	$214.44	1
016	3231198	CONNECTION	3231198 CONNECTION RACCORDO	$69.25	1
017	3231527	PIPE	3231527 PIPE TUBO	$186.11	1
018	3230799	PIPE	3230799 PIPE TUBO	$197.08	1
019	3101513	WASHER IN STOCK	3101513 WASHER RONDELLA IN STOCK	$1.34 MSRP: ~~7.32~~ (81.7% off)	3
020	3230031	CONNECTION	3230031 CONNECTION RACCORDO	$32.25 MSRP: ~~34.90~~ (7.6% off)	1
021	3101486	SCREW	3101486 SCREW VITE FORATA	$29.94 MSRP: ~~32.45~~ (7.7% off)	1
022	3230030	VALVE	3230030 VALVE VALVOLA Dl NON RITORNO	$24.86 MSRP: ~~26.95~~ (7.8% off)	1
023	410611937	VACUUM MANIFOLD BRANCH PIPE	410611937 VACUUM MANIFOLD BRANCH PIPE TUBO	$80.88	1
