Rear Brakes (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Rear Brakes (Valid for June 1992 Version)

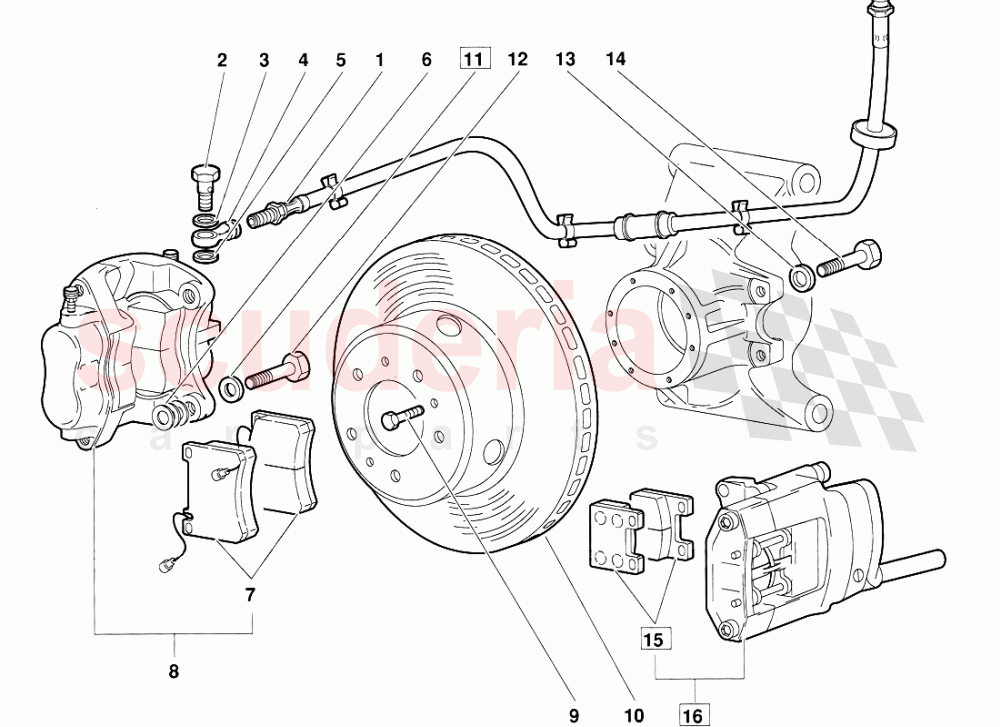

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	3229882	PIPE IN STOCK	3229882 PIPE (Valid for June 1992 version) TUBO FRENI POSTERIORI IN STOCK	$159.48 MSRP: ~~174.50~~ (8.6% off)	2
002	3113907	SCREW	3113907 SCREW (Valid for June 1992 version) VITE	$25.25	2
003	3113906	WASHER	3113906 WASHER (Valid for June 1992 version) RONDELLA	$19.18	2
004	3113904	CONNECTION	3113904 CONNECTION (Valid for June 1992 version) RACCORDO	$151.34	2
005	3113905	WASHER	3113905 WASHER (Valid for June 1992 version) RONDELLA	$2.06	2
006	3230724	SHIM	3230724 SHIM (Valid for June 1992 version) RONDELLA SP. 0.5 MM	$0.37	1
006	3230727	SHIM	3230727 SHIM (Valid for June 1992 version) RONDELLASP. 1.0 MM	$3.00	1
006	3230723	SHIM	3230723 SHIM (Valid for June 1992 version) RONDELLA SP. 0.4 MM	$0.37	1
006	3230725	SHIM	3230725 SHIM (Valid for June 1992 version) RONDELLA SP. 0.6 MM	$0.37	1
006	3230726	SHIM	3230726 SHIM (Valid for June 1992 version) RONDELLA SP. 0.8 MM	$0.37	1
006	3230722	WASHER	3230722 WASHER (Valid for June 1992 version) RONDELLA SP. 0.3 MM	$1.03	1
006	3230719	SHIM	3230719 SHIM (Valid for June 1992 version) RONDELLA SP. 0.05 MM	$0.54	1
006	3230720	SHIM	3230720 SHIM (Valid for June 1992 version) RONDELLA SP. 0.1 MM	$13.55	1
006	3230721	SHIM	3230721 SHIM (Valid for June 1992 version) RONDELLA SP. 0.2 MM	$0.37	1
007	3235293	REAR BRAKE PADS	3235293 REAR BRAKE PADS	$977.70	1
008	3226352	LEFT BRAKE CALIPER	3226352 LEFT BRAKE CALIPER (Valid for June 1992 version) PINZA FRENO SINISTRO POSTERIORE	$1,954.99	1
008	3226353	RIGHT BRAKE CALIPER	3226353 RIGHT BRAKE CALIPER (Valid for June 1992 version) PINZA FRENO DESTRO POSTERIORE	$1,954.99	1
009	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) (Valid for June 1992 version) VITE	$2.24 MSRP: ~~7.23~~ (69% off)	6
010	3234862	REAR BRAKE DISC	3234862 REAR BRAKE DISC (Valid for June 1992 version) DISCO FRENO POSTERIORE	$3,046.94	2
011	8401217	WASHER	8401217 WASHER (Valid for June 1992 version) RONDELLA (sostituisce 8411303)	$5.39	4
012	8101247	SCREW	8101247 SCREW (Valid for June 1992 version) VITE	$6.43	4
013	8411302	WASHER	8411302 WASHER (Valid for June 1992 version) RONDELLA	-	4	Enquire
014	8101246	SCREW	8101246 SCREW (Valid for June 1992 version) VITE	$56.58	4
015	3331672	KIT BRAKE PADS	3331672 KIT BRAKE PADS KIT 4 PASTIGLIE FRENO A MANO - USE 108134 as alternative	$201.48	1
015	3329907	KIT PADS BRAKE	3329907 KIT PADS BRAKE (Valid for June 1992 version) KIT 4 PASTIGLIE F. MANO (fino 12620)	-	1	Enquire
016	3333273	LEFT BRAKE CALIPER	3333273 LEFT BRAKE CALIPER (Valid for June 1992 version) PINZA SX FRENO A MANO CON PASTIGLIE (dalla 12621)	$2,364.85	1
016	3327754	HAND BRAKE CALIPER	3327754 HAND BRAKE CALIPER (Valid for June 1992 version) PINZA SX FRENO A MANO CON PASTIGLIE (fino 12620)	$997.61	1
016	3327753	HAND BRAKE CALIPER	3327753 HAND BRAKE CALIPER (Valid for June 1992 version) PINZA DX FRENO A MANO CON PASTIGLIE (fino 12620)	$1,836.78	1
016	3333274	RIGHT BRAKE CALIPER	3333274 RIGHT BRAKE CALIPER (Valid for June 1992 version) PINZA DX FRENO A MANO CON PASTIGLIE (fino 12621)	$2,364.85	1
017	8900204	PIN	8900204 PIN (Valid for June 1992 version) SA	$0.15 MSRP: ~~7.37~~ (98% off)	2
018	3330824	BUSHING	3330824 BUSHING (Valid for June 1992 version) BOCCOLA	-	2	Enquire
019	3319644	BOOT	3319644 BOOT (Valid for June 1992 version) SOFFIETTO	$17.73	2
