Front Brakes (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Front Brakes (Valid for June 1992 Version)

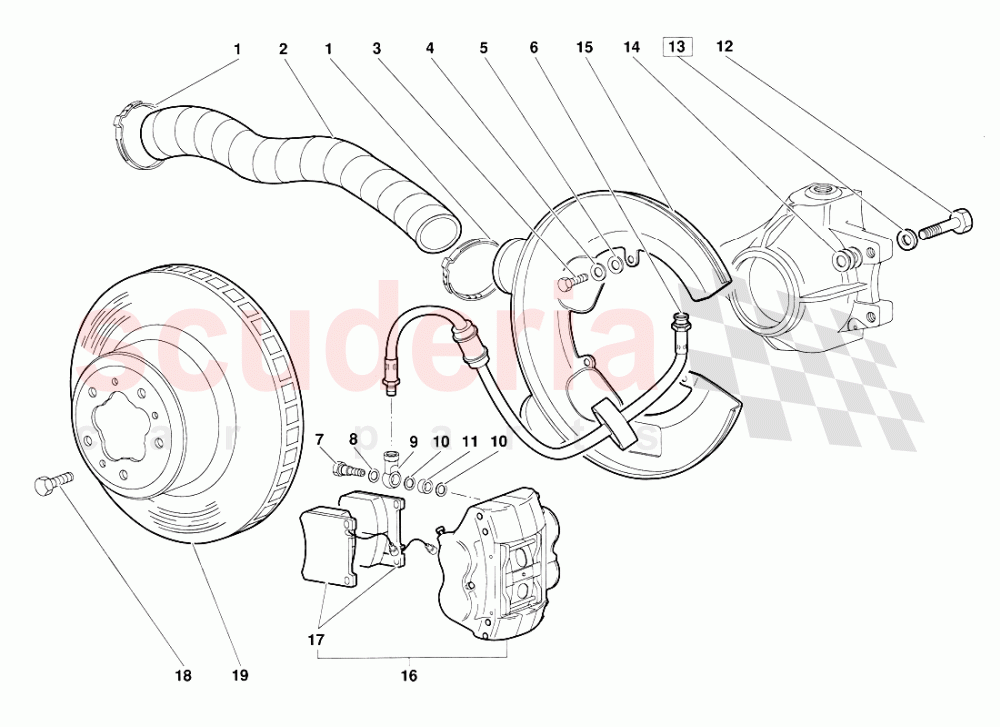

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8836302	CLAMP	8836302 CLAMP (Valid for June 1992 version) FASCETTA	$10.71 MSRP: ~~11.75~~ (8.9% off)	4
002	9453128	FLEX. HOSE	9453128 FLEX. HOSE (Valid for June 1992 version) TUBO FLESSIBILE	$188.48	2
003	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 (Valid for June 1992 version) VITE IN STOCK	$1.16 MSRP: ~~7.31~~ (84.1% off)	6
004	8410508	WASHER	8410508 WASHER (Valid for June 1992 version) RONDELLA	$0.04 MSRP: ~~7.40~~ (99.5% off)	6
005	8400509	WASHER	8400509 WASHER (Valid for June 1992 version) RONDELLA	$0.11 MSRP: ~~7.37~~ (98.5% off)	6
006	3129881	FRONT BRAKES PIPE	3129881 FRONT BRAKES PIPE (Valid for June 1992 version) TUBO FRENI ANTERIORI	$111.17	1
007	3129778	SCREW	3129778 SCREW (Valid for June 1992 version) VITE	$55.92	2
008	3113905	WASHER	3113905 WASHER (Valid for June 1992 version) RONDELLA	$2.10	2
009	3113904	CONNECTION	3113904 CONNECTION (Valid for June 1992 version) RACCORDO	$154.33	2
010	3113906	WASHER	3113906 WASHER (Valid for June 1992 version) RONDELLA	$19.56	4
011	3129777	SPACER	3129777 SPACER (Valid for June 1992 version) DISTANZIALE	$56.33	2
012	8101219	SCREW	8101219 SCREW (Valid for June 1992 version) VITE	$20.68	4
013	8401217	WASHER	8401217 WASHER (Valid for June 1992 version) RONDELLA (sostituisce 8411303)	$5.50	4
014	3230726	SHIM	3230726 SHIM (Valid for June 1992 version) RONDELLA SP. 0,8 MM	$0.38	1
014	3230725	SHIM	3230725 SHIM (Valid for June 1992 version) RONDELLA SP. 0,6 MM	$0.38	1
014	3230727	SHIM	3230727 SHIM (Valid for June 1992 version) RONDELLA SP. 1 MM	$3.06	1
014	3230720	SHIM	3230720 SHIM (Valid for June 1992 version) RONDELLA SP. 0,1 MM	$13.82	1
014	3230721	SHIM	3230721 SHIM (Valid for June 1992 version) RONDELLA SP. 0,2 MM	$0.38	1
014	3230719	SHIM	3230719 SHIM (Valid for June 1992 version) RONDELLA SP. 0,05 MM	$0.55	1
014	3230724	SHIM	3230724 SHIM (Valid for June 1992 version) RONDELLA SP. 0,5 MM	$0.38	1
014	3230722	WASHER	3230722 WASHER (Valid for June 1992 version) RONDELLA SP. 0,3 MM	$1.05	1
014	3230723	SHIM	3230723 SHIM (Valid for June 1992 version) RONDELLA SP. 0,4 MM	$0.38	1
015	3132825	RIGHT MUDGUARDS	3132825 RIGHT MUDGUARDS (Valid for June 1992 version) PARASPRUZZI DESTRO	$870.96	1
015	3132826	LEFT MUDGUARDS	3132826 LEFT MUDGUARDS (Valid for June 1992 version) PARASPRUZZI SINISTRO	$870.96	1
016	3129435	BRAKE CALIPER	3129435 BRAKE CALIPER (Valid for June 1992 version) PINZA FRENI SINISTRA CON PASTIGLIE	$2,000.38	1
016	3129436	BRAKE CALIPER CPL	3129436 BRAKE CALIPER CPL (Valid for June 1992 version) PINZA FRENI DESTRA CON PASTIGLIE	$2,000.38	1
017	3131723	FRONT BRAKE PADS	3131723 FRONT BRAKE PADS See also 003135292	-	1	Enquire
017	3135292	FRONT BRAKE PADS	3135292 FRONT BRAKE PADS PRICE EACH PAD	$495.77	4
018	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) (Valid for June 1992 version) VITE	$2.16 MSRP: ~~7.23~~ (70.1% off)	6
019	3126969	BRAKE DISC	3126969 BRAKE DISC (Valid for June 1992 version) DISCO FRENO ANTERIORE	$1,363.78	2
