WATER COOLING SYSTEM 2 of Lamborghini Lamborghini Aventador LP750 SV Roadster

View All

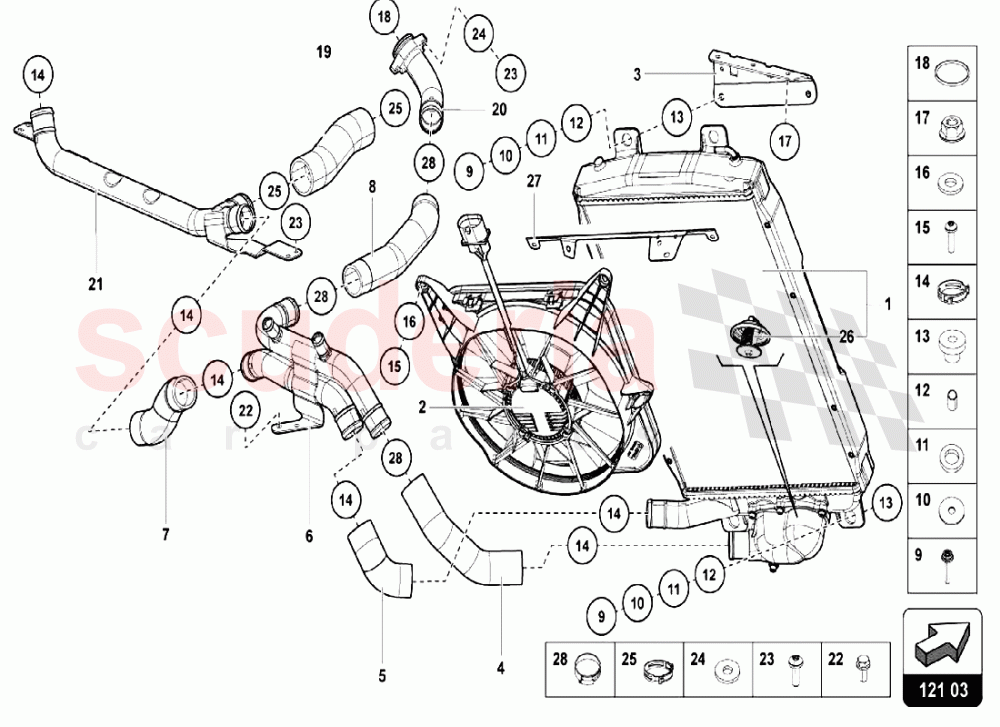

Lamborghini Aventador LP750 SV Roadster - WATER COOLING SYSTEM 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470121252G	COOLER FOR COOLANT IN STOCK	470121252G COOLER FOR COOLANT IN STOCK	$5,844.47	1
002	470959455E	RADIATOR FAN WITH CONTROL UNIT IN STOCK	470959455E RADIATOR FAN WITH CONTROL UNIT IN STOCK	$2,679.98	1
003	470121704B	SUPPORT FOR COOLANT RADIATOR	470121704B SUPPORT FOR COOLANT RADIATOR	$321.29	1
004	470121102A	Coolant Hose	470121102A Coolant Hose	$433.82	1
005	470121062A	COOLANT HOSE	470121062A COOLANT HOSE	$155.65	1
006	470121525B	COOLANT PIPE	470121525B COOLANT PIPE	$511.31	1
007	470121108A	COOLANT HOSE	470121108A COOLANT HOSE	$218.78	1
008	470121058E	COOLANT HOSE	470121058E COOLANT HOSE	$238.17	1
009	N10533601	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10533601 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$2.83	4
010	WHT001942	WASHER IN STOCK	WHT001942 WASHER IN STOCK	$3.07	4
011	WHT001189	PLASTIC WASHER IN STOCK	WHT001189 PLASTIC WASHER IN STOCK	$5.87	4
012	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	$9.76	4
013	400121268	RUBBER BUSH	400121268 RUBBER BUSH	$10.82	4
014	N90926501	SPRING BAND CLAMP IN STOCK	N90926501 SPRING BAND CLAMP IN STOCK	$9.70	9
014	470971850D	SPRING BAND CLAMP	470971850D SPRING BAND CLAMP	$9.65	9
015	N91071702	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91071702 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.44 MSRP: ~~7.21~~ (80% off)	4
016	N0115478	WASHER IN STOCK	N0115478 WASHER IN STOCK	$0.28 MSRP: ~~7.36~~ (96.2% off)	4
017	N10609201	HEXAGON COLLAR NUT IN STOCK	N10609201 HEXAGON COLLAR NUT IN STOCK	$2.14 MSRP: ~~7.34~~ (70.8% off)	3
018	N90760301	O-RING 14MM IN STOCK	N90760301 O-RING 14MM IN STOCK	$24.55	1
019	470121055A	COOLANT HOSE IN STOCK	470121055A COOLANT HOSE IN STOCK	$204.04	1
020	470121052A	COOLANT PIPE	470121052A COOLANT PIPE	$885.12	1
021	470121193A	COOLANT PIPE	470121193A COOLANT PIPE	$408.80	1
022	N10049308	HEXAGON HEAD BOLT (COMBI) IN STOCK	N10049308 HEXAGON HEAD BOLT (COMBI) IN STOCK	$2.70	2
023	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	$1.52	6
024	WHT003407	WASHER IN STOCK	WHT003407 WASHER IN STOCK	$0.50 MSRP: ~~7.31~~ (93.2% off)	2
025	N90953801	Spring Band Clamp (55x12)	N90953801 Spring Band Clamp (55x12)	$3.51	2
026	470121113A	COOLANT REGULATOR ARRIVING SOON	470121113A COOLANT REGULATOR ARRIVING SOON	$556.53	1
027	470821472	SUPPORT FOR COOLANT RADIATOR	470821472 SUPPORT FOR COOLANT RADIATOR	$43.51	1
028	470121041	SEAL RING 14 X 2.62 ARRIVING SOON	470121041 SEAL RING 14 X 2.62 ARRIVING SOON	$33.70	1
