Right Cylinder Head And Cover

Lamborghini Aventador LP750 SV Roadster

Find Your Part

Lamborghini Aventador LP750 SV Roadster - RIGHT CYLINDER HEAD AND COVER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

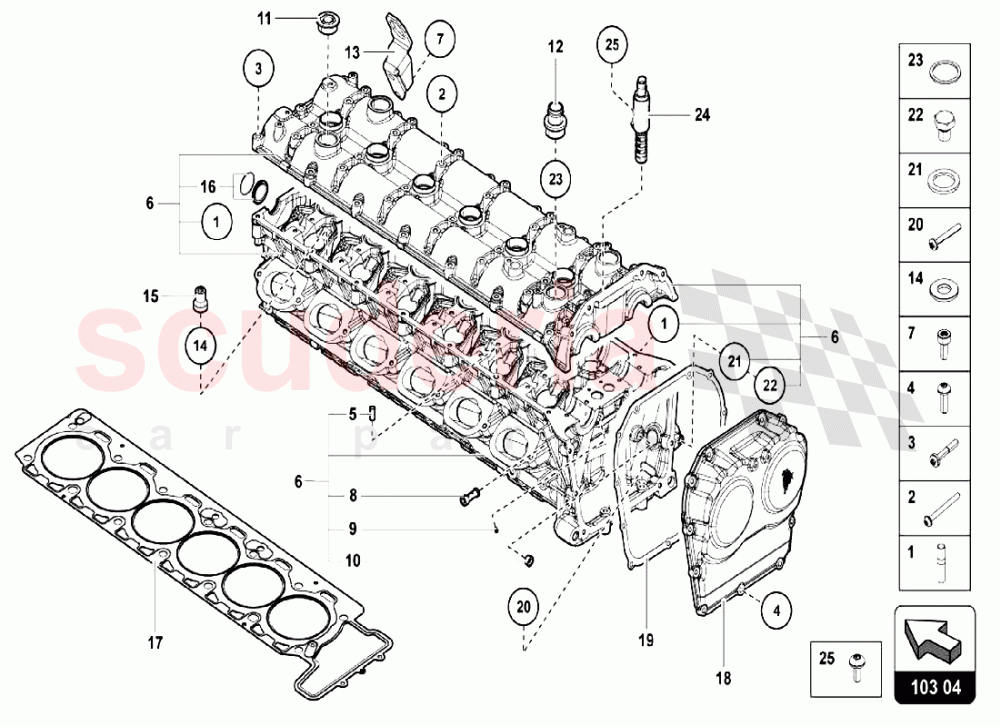

RIGHT CYLINDER HEAD AND COVER of Lamborghini Lamborghini Aventador LP750 SV Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 WHT003028
THREADED PIN 		$20.77 18
002 N91089601
HEXAGON SOCKET FLAT HEAD BOLT M6 X 60
IN STOCK 		$2.46 28
003 N91127601
ROUND HEAD SCREW
IN STOCK 		$1.49 15
004 N10124306
HEXAGON SOCKET FLAT HEAD BOLT
IN STOCK 		$1.74 11
005 7M101110
CENTRE SLEEVE 		$599.57 4
006 7M103066E
RH CYLINDER HEAD 		$11,275.58 1
007 N91137001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$16.52 2
008 7M109291E
BUNGS 		$111.03 2
009 7M109291
BUNGS 		$47.09 2
010 7M109291D
BUNGS
IN STOCK 		$92.38 8
011 7M103037A
BUNGS
IN STOCK 		$65.29 3
012 7M103037C
CONNECTION PIECE
IN STOCK 		$66.21 1
013 7M199080D
HOOKS 		$129.56 1
014 WHT004875A
WASHER 		$335.53 14
015 7M103448C
NUT
IN STOCK 		$30.11 14
016 7M103113B
END CAP
IN STOCK 		$276.09 2
017 7M103148D
CYLINDER HEAD GASKET
IN STOCK 		$1,681.12 1
018 7M109153M
END CAP 		$2,253.07 1

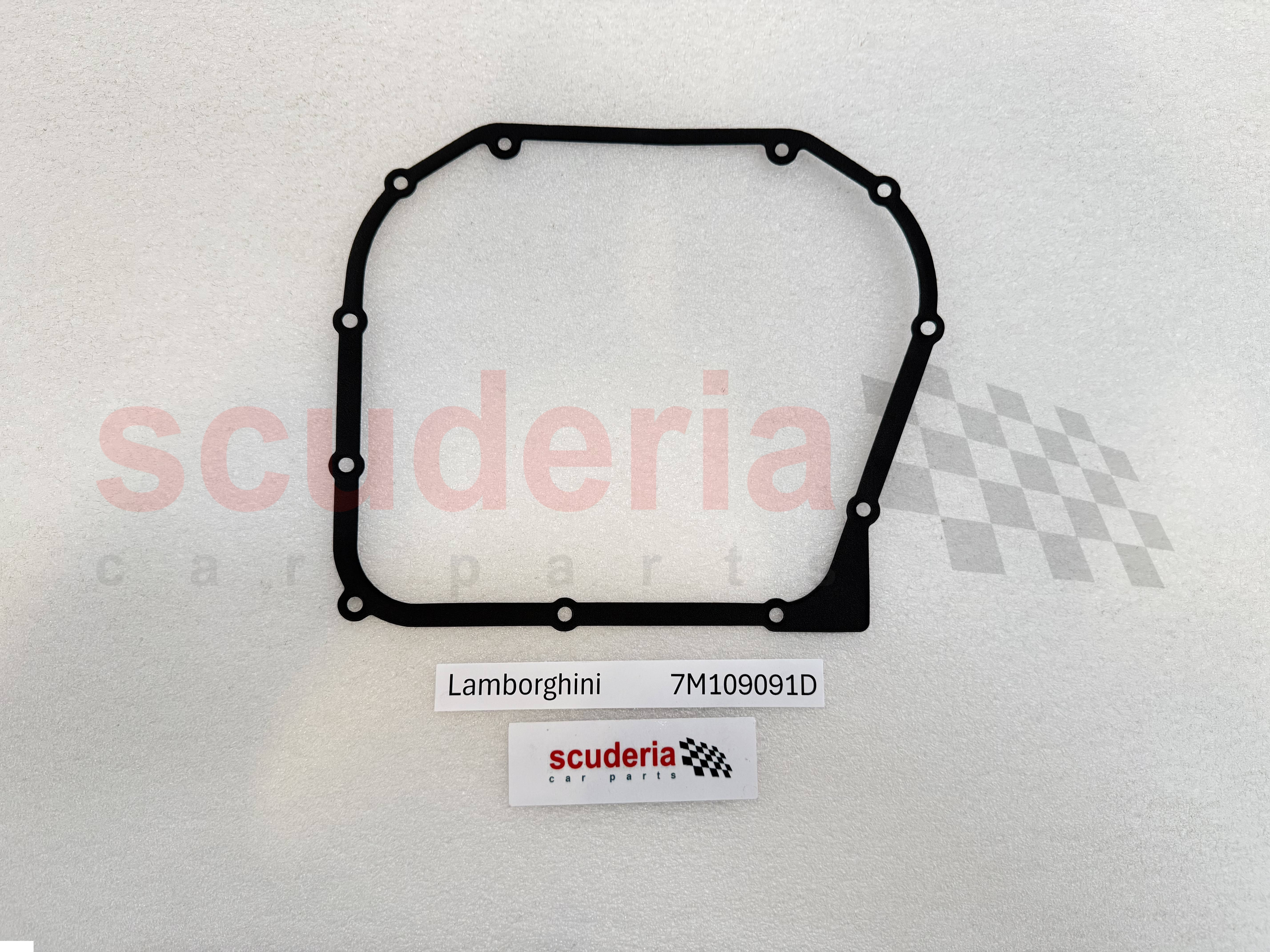

019 7M109091D
SEAL
IN STOCK 		$244.37 1
020 N10405702
HEXAGON SOCKET HEAD BOLT
IN STOCK 		$3.04 2
021 N0138302
Washer Copper 8 x 1MM
IN STOCK 		$3.68 (49.8% off) 2
022 N0102358
HEXAGON BOLT 		$143.98 2
023 WHT000674
WASHER
IN STOCK 		$2.50 (64.5% off) 1
024 6E109257AA
CONTROL VALVE 		$135.15 2
025 N91068201
HEXAGON SOCKET FLAT HEAD BOLT 		$0.90 (87.7% off) 2
