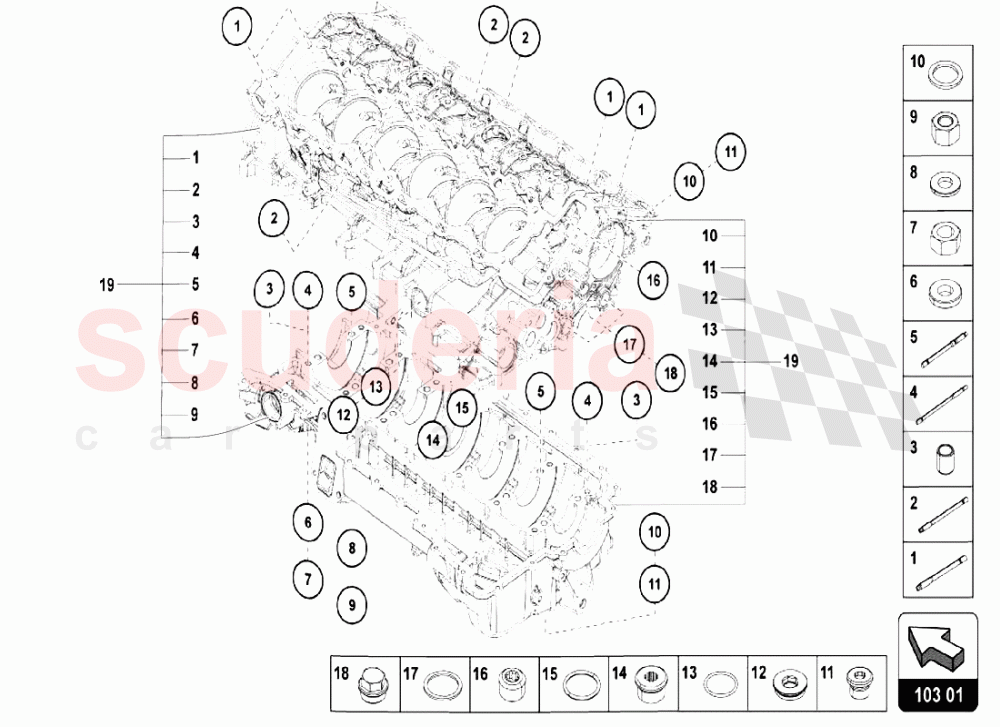

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7M103136E	STUD BOLT MJ11X100,15	7M103136E STUD BOLT MJ11X100,15	$24.83	8
002	WHT004881A	STUD BOLT MJ11X150,6	WHT004881A STUD BOLT MJ11X150,6	$53.99	20
003	86301153B	DOWEL SLEEVE	86301153B DOWEL SLEEVE	$5.55	14
004	WHT004880A	THREADED PIN	WHT004880A THREADED PIN	$53.99	14
005	WHT004882	Threaded Pin (mj12 -4h6hx182,50)	WHT004882 Threaded Pin (mj12 -4h6hx182,50)	$154.24	14
006	WHT005230	WASHER	WHT005230 WASHER	$34.81	14
007	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.94	14
008	WHT005231	WASHER	WHT005231 WASHER	$38.76	14
009	WHT003024	NUT	WHT003024 NUT	$245.77	14
010	N0138485	SEAL RING IN STOCK	N0138485 SEAL RING IN STOCK	$0.86 MSRP: ~~7.29~~ (88.2% off)	12
011	7M103519	BUNG IN STOCK	7M103519 BUNG IN STOCK	$67.24	12
012	7M103485A	END CAP	7M103485A END CAP	$135.44	1
013	WHT002159	SEAL RING	WHT002159 SEAL RING	$8.47	1
014	N10712702	BUNGS	N10712702 BUNGS	$35.99	1
015	N91069701	O-RING IN STOCK	N91069701 O-RING IN STOCK	$4.80 MSRP: ~~46.05~~ (89.6% off)	1
016	WHT005250	SEALING PLUG	WHT005250 SEALING PLUG	$24.01	3
017	WHT003049	WASHER	WHT003049 WASHER	$5.46	3
017	N0438121	SEAL RING	N0438121 SEAL RING	$1.15	3
018	7M103035A	BUNGS	7M103035A BUNGS	$18.12	3
019	7M103011J	Crankcase Housing	7M103011J Crankcase Housing	$20,902.83	1
020	WHT005547	Bungs	WHT005547 Bungs	$39.68	1
