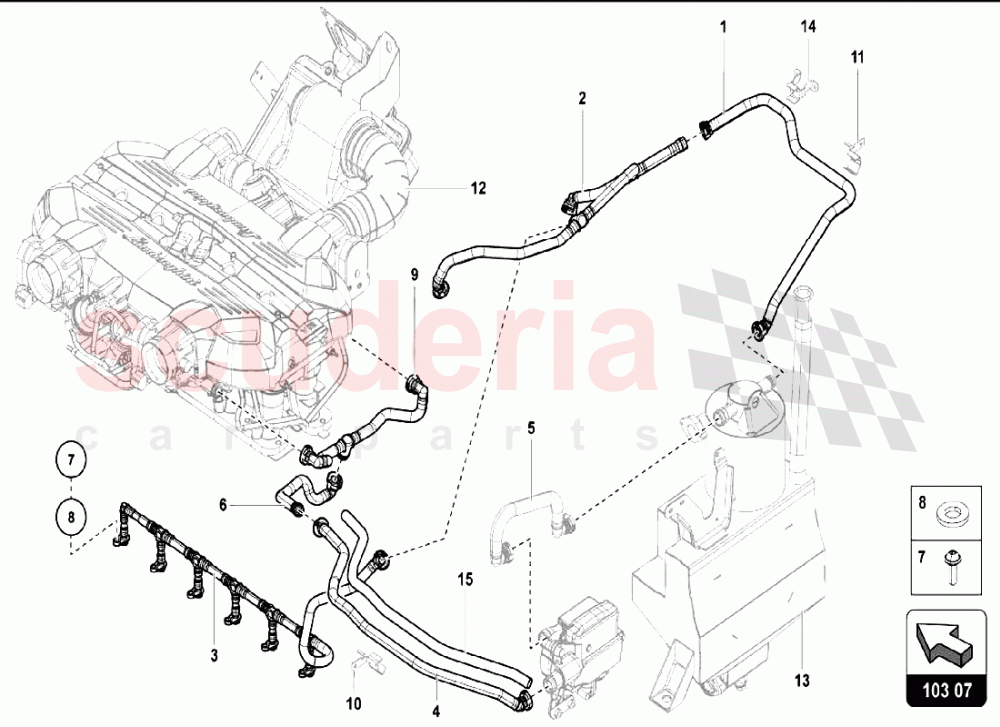

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470103214C	VENT HOSE	470103214C VENT HOSE	$662.60	1
002	470103218C	VENT HOSE	470103218C VENT HOSE	$1,325.18	1
003	7M103209D	VENT HOSE	7M103209D VENT HOSE	$1,287.65	1
004	470103221C	VENT HOSE	470103221C VENT HOSE	$662.60	1
006	470103223	VENT HOSE	470103223 VENT HOSE	$662.60	1
007	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.08	6
008	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	6
009	470103210C	VENT HOSE	470103210C VENT HOSE	$1,325.18	1
010	470103585	BRACKET	470103585 BRACKET	$18.63	1
010	470103585A	Bracket (left)	470103585A Bracket (left)	$170.69	1
011	470103584	BRACKET	470103584 BRACKET	$31.57	1
014	470103595A	SUPPORT	470103595A SUPPORT	$18.51	1
015	470972837B	HOSE REINFORCEMENT	470972837B HOSE REINFORCEMENT	$108.77	1
