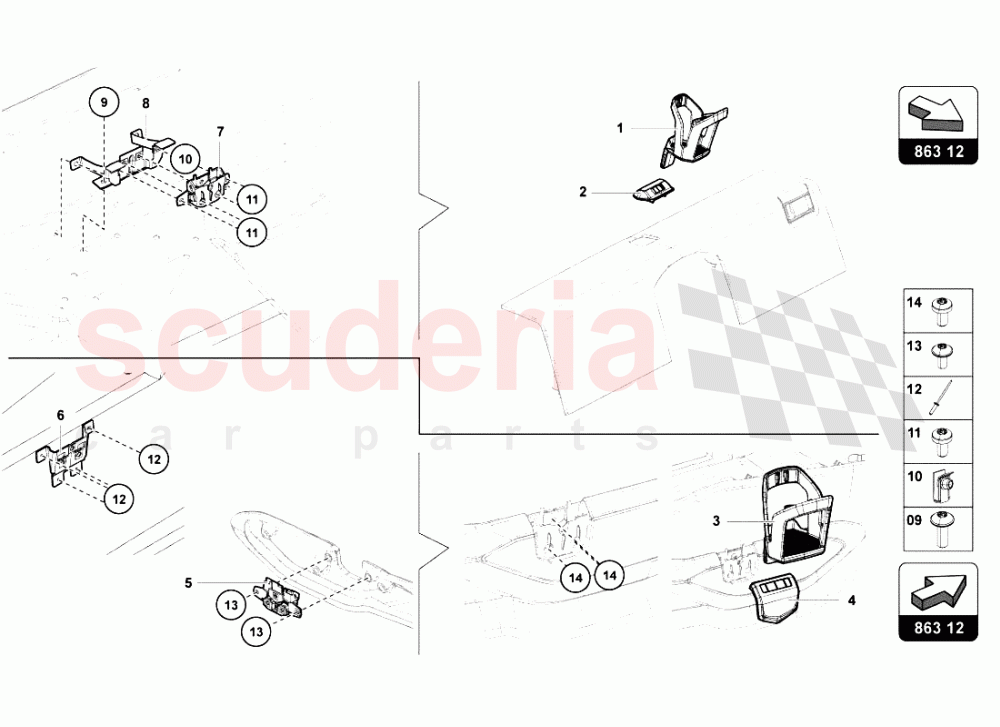

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470858195	DRINKS HOLDER	470858195 DRINKS HOLDER	$750.17	1
002	470858607	CUP HOLDER REAR COVER	470858607 CUP HOLDER REAR COVER	$200.70	1
003	470858195	DRINKS HOLDER	470858195 DRINKS HOLDER	$750.17	1
004	470863289	TRIM	470863289 TRIM	$200.70	1
005	470858377	BRACKET	470858377 BRACKET	$57.46	1
006	470863616	BRACKET	470863616 BRACKET	$140.50	1
007	470858377	BRACKET	470858377 BRACKET	$57.46	1
008	470858767A	BRACKET	470858767A BRACKET	$238.98	1
009	N90780901	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780901 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$2.90 MSRP: ~~7.38~~ (60.7% off)	4
010	N90475903	SPEED NUT IN STOCK	N90475903 SPEED NUT IN STOCK	$1.19 MSRP: ~~7.19~~ (83.4% off)	4
011	N10680801	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10680801 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.97 MSRP: ~~7.33~~ (86.8% off)	4
012	WHT005628	BELT RIVET	WHT005628 BELT RIVET	$1.11 MSRP: ~~7.28~~ (84.8% off)	4
013	N10586401	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10586401 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.89	2
014	N10680801	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10680801 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.97 MSRP: ~~7.33~~ (86.8% off)	3
