Lamborghini Aventador LP700 Roadster - LUGGAGE BOOT TRIMS ROW

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

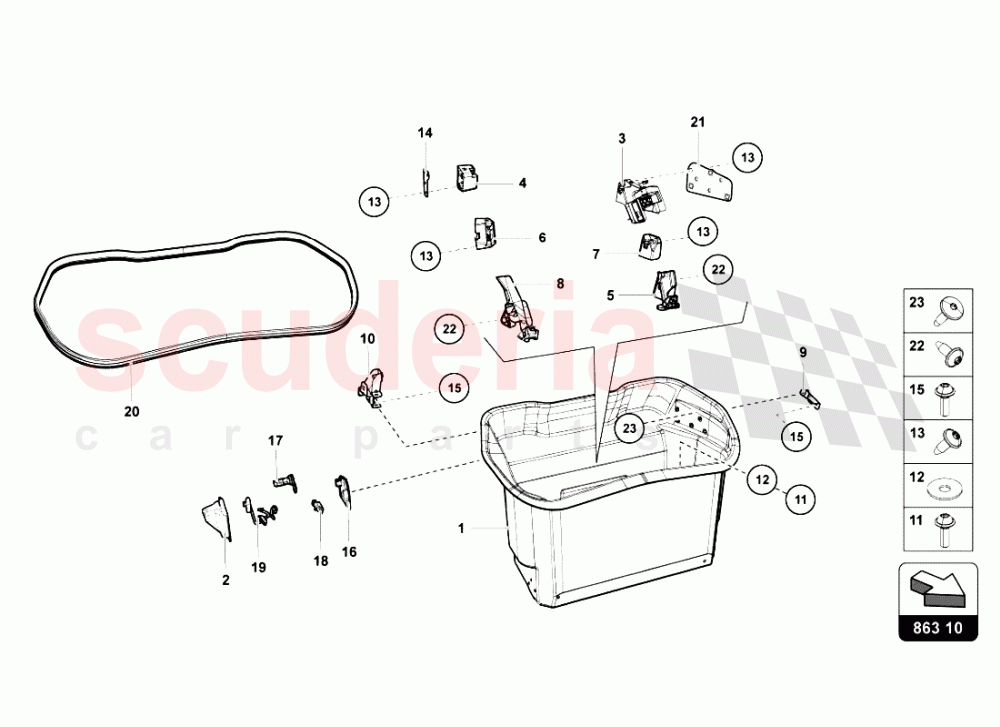

LUGGAGE BOOT TRIMS ROW of Lamborghini Lamborghini Aventador LP700 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 475863362Q
LUGGAGE COMPARTMENT ASSEMBLY 		$2,016.42 1
002 475863399
COVER 		$45.10 1
003 475863117G
CLAMPING BRACKET 		$358.83 1
004 475863118D
CLAMPING BRACKET 		$69.24 1
005 475863259J
CLAMPING BRACKET 		$136.95 1
006 475863144D
CLAMPING BRACKET 		$82.54 1
007 475863638D
CLAMPING BRACKET 		$202.86 1
008 475863259K
CLAMPING BRACKET 		$190.83 1
009 475858283
LH BRACKET 		$126.04 1
010 475857341B
CARRIER 		$120.22 1
011 N10558102
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$4.14 4
012 N0116495
M6X18 SCREW 		- 4 Enquire
013 N90917201
SCREW
IN STOCK 		$1.78 (75.5% off) 15
014 475857342B
CARRIER 		$77.21 1
015 N91032702
ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD
IN STOCK 		$1.71 5
016 400863440
TRIM FOR SOCKET 		$41.54 1
017 4E0919299
COVER WITH SOCKET 		$42.85 1
018 4B0947415
Light
IN STOCK 		$2.21 1
019 470971146
WIRING HARNESS FOR LUGGAGE COMPARTMENT LIGHT 		$58.25 1
020 470823727
SEAL 		$857.12 1
021 475857195B
CARRIER 		$35.49 1
022 N91078901
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$2.54 (65% off) 9
023 N10483102
HEX SOCKET HEAD BOLT (COMBI)
IN STOCK 		$1.91 (73.2% off) 2
