Lamborghini Aventador LP700 Roadster - POWER STEERING - VANE PUMP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

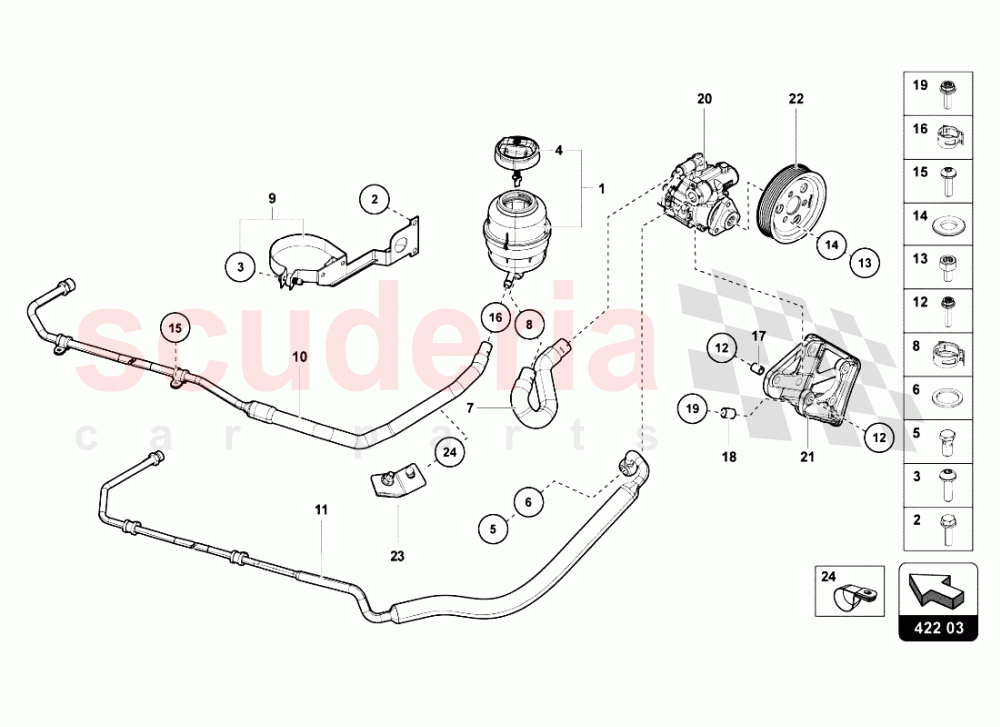

POWER STEERING - VANE PUMP of Lamborghini Lamborghini Aventador LP700 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 420422371B
OIL CONTAINER
IN STOCK 		$154.76 1
002 N0901486
HEXAGON HEAD BOLT (COMBI) 		$1.44 (80.2% off) 2
003 N10535501
HEXAGON SOCKET HEAD BOLT (COMBI) 		- 1 Enquire
005 WHT000507
BANJO BOLT 		$12.41 1
006 N0138487
SEAL RING
IN STOCK 		$3.95 (45.2% off) 2
007 470422843D
OIL HOSE 		$73.40 1
008 N90686901
SPRING BAND CLAMP
IN STOCK 		$5.76 2
009 476422493F
BRACKET FOR FLUID RESERVOIR 		$158.55 1
010 470422857J
RETURN HOSE 		$343.32 1
011 470422893E
SUPPLY PIPE 		$397.01 1
012 N10533601
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD 		$2.83 6
013 N91143901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$3.13 (56.7% off) 3
014 WHT003045
WASHER 		$24.10 3
015 N10124304
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.68 2
016 N90770201
SPRING BAND CLAMP
IN STOCK 		$3.77 1
017 470145219
SPACER SLEEVE 		$1,629.18 3
018 7M103143A
DOWEL SLEEVE 		$32.78 2
019 N10689301
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$3.38 3
020 470145156A
HYDRAULIC PUMP 		$4,389.10 1
021 470145879A
RETAINER FOR VANE PUMP 		$2,777.70 1
022 470145235A
POLY V-BELT PULLEY 		$1,279.63 1
023 470422484
BRACKET 		$39.08 1
024 N02061610
CLAMP 		- 1 Enquire
