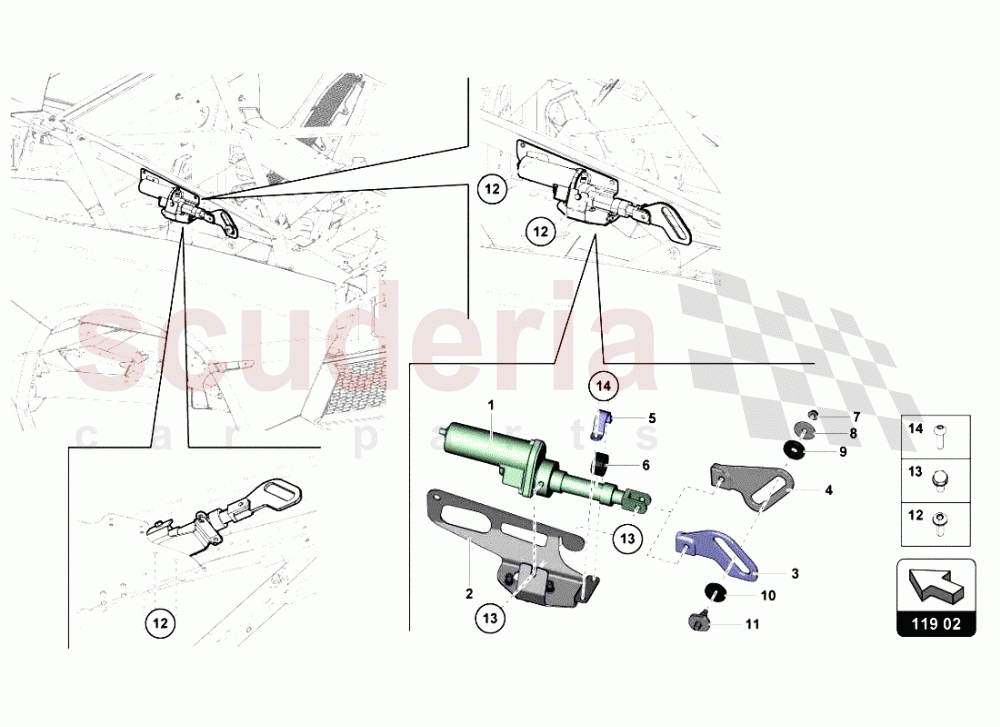

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470901127C	MOTOR (FROM VIN CLA00885)	470901127C MOTOR (FROM VIN CLA00885)	$2,298.39	2
001	470901127B	MOTOR (UNTIL THE VIN CLA00884 - UNTIL THE VIN CLA00146 IN CASE	470901127B MOTOR (UNTIL THE VIN CLA00884 - UNTIL THE VIN CLA00146 IN CASE	$2,548.89	2
002	470901099B	SUPPORT LH	470901099B SUPPORT LH	$238.00	1
002	470901100B	SUPPORT RH	470901100B SUPPORT RH	$238.00	1
004	470903125B	SUPPORT (UNTIL THE VIN CLA00146 IN CASE OF REPLECEMENT	470903125B SUPPORT (UNTIL THE VIN CLA00146 IN CASE OF REPLECEMENT	$363.23	2
005	470903121	SUPPORT	470903121 SUPPORT	$44.04	2
006	470901111	GASKET	470901111 GASKET	$4.57	2
007	N01508210	HEXAGON COLLAR NUT IN STOCK	N01508210 HEXAGON COLLAR NUT IN STOCK	$2.01	2
008	470813353	WASHER	470813353 WASHER	$36.64	2
009	470813354A	WASHER	470813354A WASHER	$29.03	2
010	470813583B	PLUG	470813583B PLUG	$38.14	2
011	470814641	PIVOT PIN	470814641 PIVOT PIN	$61.64	2
012	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.09	10
013	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.09	4
014	N10430103	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10430103 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.27 MSRP: ~~7.30~~ (82.6% off)	4
