VEHICLE LIFT SYSTEM of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - VEHICLE LIFT SYSTEM

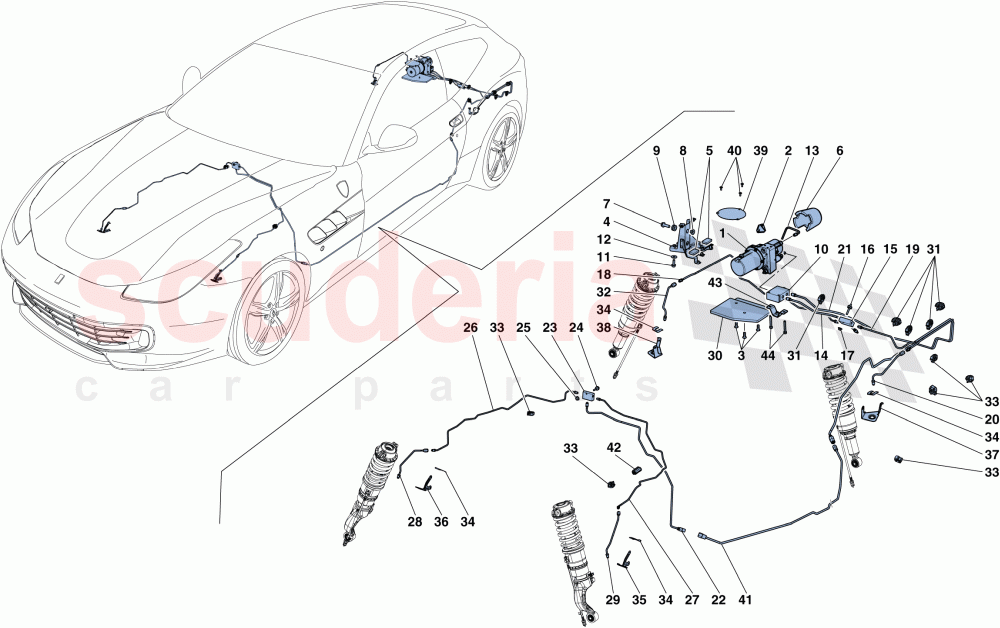

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	328447	ELECTRIC PUMP	$3,026.10	To Order

Photo	Part No	Description	Price (each)	Stock
	275321	REAR CRASH BRACKET ON BACK PANEL	$41.95	To Order

Photo	Part No	Description	Price (each)	Stock
	85824800	SCREW M5 X 16	$34.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	314656	PUMP MOUNTING BRACKET	$178.03	To Order

Photo	Part No	Description	Price (each)	Stock
	264740	BUSH	$0.87	To Order

Photo	Part No	Description	Price (each)	Stock
	285319	INSULATION	$144.23	To Order

Photo	Part No	Description	Price (each)	Stock
	304224	SCREW	$12.71	To Order

Photo	Part No	Description	Price (each)	Stock
	255048	GROMMET SHIM	$2.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	255047	CABLE GROMMET	$3.31	To Order

Photo	Part No	Description	Price (each)	Stock
	260390	FLOW SEPARATOR	$2,050.09	To Order

Photo	Part No	Description	Price (each)	Stock
	210246	SCREW	$1.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13578305	WASHER	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	328418	PIPE FROM PUMP TO FLOW SEPARATOR	$73.74	To Order

Photo	Part No	Description	Price (each)	Stock
	268839	PIPE FROM SEPARATOR TO THREE WAY DISTRIBUTOR BLOCK	$113.17	To Order

Photo	Part No	Description	Price (each)	Stock
	269858	DISTRIBUTOR BLOCK	$38.14	To Order

Photo	Part No	Description	Price (each)	Stock
	268173	BUSH	$38.14	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	268840	PIPE FROM THREE WAY UNION TO REAR RH WHEEL SECTION	$228.91	To Order

Photo	Part No	Description	Price (each)	Stock
	268842	PIPE FROM THREE WAY UNION TO REAR LH WHEEL SECTION	$228.91	To Order

Photo	Part No	Description	Price (each)	Stock
	271154	PIPE FROM SECTION TO LH REAR WHEEL	$113.17	To Order

Photo	Part No	Description	Price (each)	Stock
	274976	REAR SECTION PIPE	$394.24	To Order

Photo	Part No	Description	Price (each)	Stock
	786052	PIPE FROM FRONT UNDERBODY SECTION TO THREE-WAY UNION	$305.21	To Order

Photo	Part No	Description	Price (each)	Stock
	269858	DISTRIBUTOR BLOCK	$38.14	To Order

Photo	Part No	Description	Price (each)	Stock
	268173	BUSH	$38.14	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	320691	PIPE FROM THREE WAY UNION TO FRONT RH WHEEL SECTION	$190.75	To Order

Photo	Part No	Description	Price (each)	Stock
	329256	PIPE FROM THREE WAY UNION TO FRONT LH WHEEL SECTION	$178.03	To Order

Photo	Part No	Description	Price (each)	Stock
	271161	PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE	$113.17	To Order

Photo	Part No	Description	Price (each)	Stock
	271159	PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE	$57.21	To Order

Photo	Part No	Description	Price (each)	Stock
	83676100	HEAT SHIELD	$254.33	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271155	PIPE FROM SECTION TO RH REAR WHEEL	$113.17	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	$0.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	$2.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271901	FRONT LH BRACKET	$33.05	To Order

Photo	Part No	Description	Price (each)	Stock
	271902	FRONT RH BRACKET	$33.05	To Order

Photo	Part No	Description	Price (each)	Stock
	330723	REAR LH BRACKET	$24.14	To Order

Photo	Part No	Description	Price (each)	Stock
	330724	REAR RH BRACKET	$24.14	To Order

Photo	Part No	Description	Price (each)	Stock
	272640	COMPL. LIFT SYSTEM INSPECTION COVER	$43.22	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	274974	FLOOR SECTION PIPE	$267.05	To Order

Photo	Part No	Description	Price (each)	Stock
	262737	RUBBER RETAINER	$5.97	To Order

Photo	Part No	Description	Price (each)	Stock
	314713	FLOW SEPARATOR FASTENER PLATE	$12.45	To Order

Photo	Part No	Description	Price (each)	Stock
	14358924	SCREW	$0.37	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	328447	ELECTRIC PUMP	328447 ELECTRIC PUMP	$3,026.10	1
2	275321	REAR CRASH BRACKET ON BACK PANEL	275321 REAR CRASH BRACKET ON BACK PANEL	$41.95	1
3	85824800	SCREW M5 X 16 IN STOCK	85824800 SCREW M5 X 16 M5 X 16 IN STOCK	$34.16	3
4	314656	PUMP MOUNTING BRACKET	314656 PUMP MOUNTING BRACKET	$178.03	1
5	264740	BUSH	264740 BUSH 40 x 24 mm	$0.87	2
6	285319	INSULATION	285319 INSULATION	$144.23	1
7	304224	SCREW	304224 SCREW M10 X 1.5 X 28	$12.71	2
8	255048	GROMMET SHIM IN STOCK	255048 GROMMET SHIM IN STOCK	$2.45	2
9	255047	CABLE GROMMET	255047 CABLE GROMMET	$3.31	2
10	260390	FLOW SEPARATOR	260390 FLOW SEPARATOR	$2,050.09	1
11	210246	SCREW IN STOCK	210246 SCREW M8 X 25 IN STOCK	$1.44	2
12	13578305	WASHER	13578305 WASHER	$0.09	2
13	328418	PIPE FROM PUMP TO FLOW SEPARATOR	328418 PIPE FROM PUMP TO FLOW SEPARATOR	$73.74	1
14	268839	PIPE FROM SEPARATOR TO THREE WAY DISTRIBUTOR BLOCK	268839 PIPE FROM SEPARATOR TO THREE WAY DISTRIBUTOR BLOCK	$113.17	1
15	269858	DISTRIBUTOR BLOCK	269858 DISTRIBUTOR BLOCK	$38.14	1
16	268173	BUSH	268173 BUSH	$38.14	1
17	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	1
18	268840	PIPE FROM THREE WAY UNION TO REAR RH WHEEL SECTION	268840 PIPE FROM THREE WAY UNION TO REAR RH WHEEL SECTION	$228.91	1
19	268842	PIPE FROM THREE WAY UNION TO REAR LH WHEEL SECTION	268842 PIPE FROM THREE WAY UNION TO REAR LH WHEEL SECTION	$228.91	1
20	271154	PIPE FROM SECTION TO LH REAR WHEEL	271154 PIPE FROM SECTION TO LH REAR WHEEL	$113.17	1
21	274976	REAR SECTION PIPE	274976 REAR SECTION PIPE	$394.24	1
22	786052	PIPE FROM FRONT UNDERBODY SECTION TO THREE-WAY UNION	786052 PIPE FROM FRONT UNDERBODY SECTION TO THREE-WAY UNION Applicable for GD	$305.21	1
23	269858	DISTRIBUTOR BLOCK	269858 DISTRIBUTOR BLOCK	$38.14	1
24	268173	BUSH	268173 BUSH	$38.14	1
25	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	1
26	320691	PIPE FROM THREE WAY UNION TO FRONT RH WHEEL SECTION	320691 PIPE FROM THREE WAY UNION TO FRONT RH WHEEL SECTION	$190.75	1
27	329256	PIPE FROM THREE WAY UNION TO FRONT LH WHEEL SECTION	329256 PIPE FROM THREE WAY UNION TO FRONT LH WHEEL SECTION	$178.03	1
28	271161	PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE	271161 PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE	$113.17	1
29	271159	PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE	271159 PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE	$57.21	1
30	83676100	HEAT SHIELD	83676100 HEAT SHIELD	$254.33	1
31	234285	CLIP IN STOCK	234285 CLIP IN STOCK	$0.61	4
32	271155	PIPE FROM SECTION TO RH REAR WHEEL	271155 PIPE FROM SECTION TO RH REAR WHEEL	$113.17	1
33	234284	CLIP IN STOCK	234284 CLIP IN STOCK	$0.55	5
34	116374	CLIP IN STOCK	116374 CLIP IN STOCK	$2.19 MSRP: ~~3.50~~ (37.4% off)	4
35	271901	FRONT LH BRACKET	271901 FRONT LH BRACKET	$33.05	1
36	271902	FRONT RH BRACKET	271902 FRONT RH BRACKET	$33.05	1
37	330723	REAR LH BRACKET	330723 REAR LH BRACKET	$24.14	1
38	330724	REAR RH BRACKET	330724 REAR RH BRACKET	$24.14	1
39	272640	COMPL. LIFT SYSTEM INSPECTION COVER	272640 COMPL. LIFT SYSTEM INSPECTION COVER	$43.22	1
40	11566224	SCREW IN STOCK	11566224 SCREW M5 X 12 IN STOCK	$0.34	3
41	274974	FLOOR SECTION PIPE	274974 FLOOR SECTION PIPE	$267.05	1
42	262737	RUBBER RETAINER	262737 RUBBER RETAINER Not for GD	$5.97	1
43	314713	FLOW SEPARATOR FASTENER PLATE	314713 FLOW SEPARATOR FASTENER PLATE	$12.45	1
44	14358924	SCREW	14358924 SCREW M5 X 45	$0.37	2
