Hydraulic Power Steering Box

Ferrari GTC4Lusso T

Find Your Part

Ferrari GTC4Lusso T - HYDRAULIC POWER STEERING BOX

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
256225 STEERING BOX $4,604.82 To Order
267116 STEERING BOX $6,670.23 IN STOCK
Photo Part No Description Price (each) Stock
277720 SCREW $3.46 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.66 IN STOCK
Photo Part No Description Price (each) Stock
14058621 NUT $0.41 IN STOCK
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.43 IN STOCK
Photo Part No Description Price (each) Stock
12626224 WASHER $0.20 IN STOCK
Photo Part No Description Price (each) Stock
323250 PIPE FROM PUMP TO STEERING BOX $315.98 To Order
340311 PIPE FROM PUMP TO STEERING BOX $328.64 To Order
Photo Part No Description Price (each) Stock
276087 FUEL FILLER NECK PIPE $16.01 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.32 IN STOCK
Photo Part No Description Price (each) Stock
239094 CLIP $1.17 To Order
Photo Part No Description Price (each) Stock
245041 HOSE $54.31 To Order
Photo Part No Description Price (each) Stock
305724 BRACKET WITH SHEATH $4.92 To Order
Photo Part No Description Price (each) Stock
11566227 SCREW $1.13 IN STOCK
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
250196 ROD END FOR STEERING BOX $417.95 IN STOCK
Photo Part No Description Price (each) Stock
229521 STEERING BOX GAITER REPLACEMENT KIT $444.08 IN STOCK
Photo Part No Description Price (each) Stock
340312 PIPE FROM STEERING BOX TO COIL $111.22 To Order
323251 PIPE FROM STEERING BOX TO COIL $121.32 To Order
Photo Part No Description Price (each) Stock
277407 HOSE CONNECTOR $10.23 IN STOCK
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
259508 CLIP $0.53 IN STOCK
Photo Part No Description Price (each) Stock
13127070 COLLAR $1.83 IN STOCK
View All

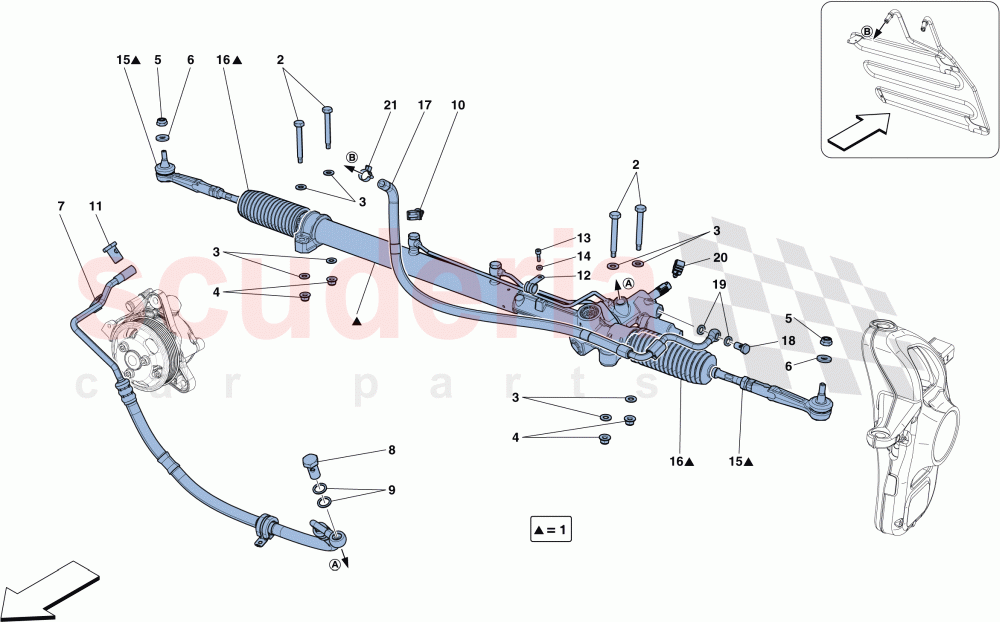

HYDRAULIC POWER STEERING BOX of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 256225
STEERING BOX
Not for GD 		$4,604.82 (32.1% off) 1
1 267116
STEERING BOX
Applicable for GD
IN STOCK 		$6,670.23 1
2 277720
SCREW
M10 X 1.25 X 80 		$3.46 4
3 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.66 (5.1% off) 8
4 14058621
NUT
IN STOCK 		$0.41 4
5 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		$0.43 (86.8% off) 2
6 12626224
WASHER
IN STOCK 		$0.20 2
7 323250
PIPE FROM PUMP TO STEERING BOX
Not for GD 		$315.98 1
7 340311
PIPE FROM PUMP TO STEERING BOX
Applicable for GD 		$328.64 1
8 276087
FUEL FILLER NECK PIPE 		$16.01 1
9 10261460
COPPER WASHER 16 X 24 X 1.5
IN STOCK 		$0.32 (68% off) 2
10 239094
CLIP 		$1.17 1
11 245041
HOSE 		$54.31 1
12 305724
BRACKET WITH SHEATH
Not for GD 		$4.92 1
13 11566227
SCREW
M5 X 10; Not for GD
IN STOCK 		$1.13 1
14 11181574
WASHER
Not for GD
IN STOCK 		$0.02 1
15 250196
ROD END FOR STEERING BOX
IN STOCK 		$417.95 (31.9% off) 2
16 229521
STEERING BOX GAITER REPLACEMENT KIT
IN STOCK 		$444.08 (24.4% off) 1
17 340312
PIPE FROM STEERING BOX TO COIL
Applicable for GD 		$111.22 1
17 323251
PIPE FROM STEERING BOX TO COIL
Not for GD 		$121.32 1
18 277407
HOSE CONNECTOR
IN STOCK 		$10.23 1
19 10280060
WASHER COPPER D14. 20 X 1.5
Also comes with engine gasket set
IN STOCK 		$0.20 (80% off) 2
20 259508
CLIP
IN STOCK 		$0.53 1
21 13127070
COLLAR
IN STOCK 		$1.83 1
