Ferrari GTC4Lusso T - GEARBOX OIL LUBRICATION AND COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
326420 OIL HEAT EXCHANGER $1,579.24 To Order
Photo Part No Description Price (each) Stock
318265 GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT $106.27 To Order
Photo Part No Description Price (each) Stock
14307534 SCREW $2.44 IN STOCK
Photo Part No Description Price (each) Stock
12648321 WASHER $0.67 To Order
Photo Part No Description Price (each) Stock
313795 BRACKET $20.24 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
14058421 NUT $1.22 IN STOCK
Photo Part No Description Price (each) Stock
13604015 SPACER $0.73 To Order
Photo Part No Description Price (each) Stock
264810 SHIM $4.93 To Order
Photo Part No Description Price (each) Stock
334873 ATF FLUID DELIVERY PIPE $404.92 To Order
Photo Part No Description Price (each) Stock
262813 ATF FLUID RETURN PIPE $430.22 To Order
Photo Part No Description Price (each) Stock
334874 GL-5 OIL RETURN PIPE $227.76 To Order
Photo Part No Description Price (each) Stock
334875 GL-5 OIL DELIVERY PIPE $253.07 To Order
Photo Part No Description Price (each) Stock
254644 O-RING $0.35 IN STOCK
Photo Part No Description Price (each) Stock
262827 FORK $18.97 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
261824 FORK $29.09 To Order
Photo Part No Description Price (each) Stock
248471 SCREW $0.93 To Order
Photo Part No Description Price (each) Stock
253463 FORK WITH CAPTIVE SCREW $50.60 To Order
Photo Part No Description Price (each) Stock
84317700 SCREW 8 X 30 $21.79 IN STOCK
Photo Part No Description Price (each) Stock
313202 BRACKET $32.89 To Order
Photo Part No Description Price (each) Stock
265771 BRACKET $1.94 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH $1.53 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
313182 REAR WATER DELIVERY PIPE $759.24 To Order
Photo Part No Description Price (each) Stock
322932 BRACKET $36.69 To Order
Photo Part No Description Price (each) Stock
313181 REAR WATER RETURN PIPE $506.16 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
281462 COMPL. WATER RETURN PIPE $354.30 To Order
Photo Part No Description Price (each) Stock
142060 BRACKET $5.98 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.82 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
248454 BRACKET WITH SHEATH $6.75 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
266783 BRACKET $14.79 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
336732 ENGINE COMPARTMENT WATER DELIVERY PIPE $392.27 To Order
Photo Part No Description Price (each) Stock
264447 TOROID RING $0.26 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
327733 FRONT WATER RETURN HOSE $123.99 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.82 IN STOCK
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
273830 BRACKET $37.95 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
10442190 BRACKET WITH SHEATH $0.67 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
14498801 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
281461 COMPL. WATER DELIVERY PIPE $287.04 To Order
View All

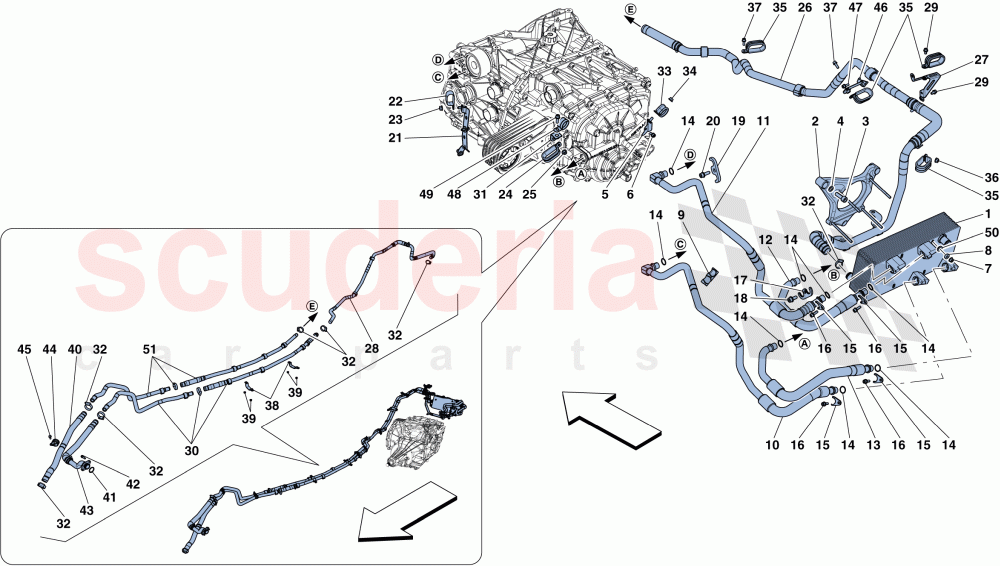

GEARBOX OIL LUBRICATION AND COOLING SYSTEM of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 326420
OIL HEAT EXCHANGER 		$1,579.24 1
2 318265
GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT 		$106.27 1
3 14307534
SCREW
IN STOCK 		$2.44 3
4 12648321
WASHER 		$0.67 3
5 313795
BRACKET 		$20.24 1
6 248334
SCREW
M6 X 12
IN STOCK 		$0.58 1
7 14058421
NUT
IN STOCK 		$1.22 4
8 13604015
SPACER 		$0.73 (7.6% off) 4
9 264810
SHIM 		$4.93 1
10 334873
ATF FLUID DELIVERY PIPE 		$404.92 1
11 262813
ATF FLUID RETURN PIPE 		$430.22 1
12 334874
GL-5 OIL RETURN PIPE 		$227.76 1
13 334875
GL-5 OIL DELIVERY PIPE 		$253.07 1
14 254644
O-RING
IN STOCK 		$0.35 (30% off) 8
15 262827
FORK 		$18.97 4
16 231619
SCREW
M6 X 18
IN STOCK 		$0.29 4
17 261824
FORK 		$29.09 1
18 248471
SCREW 		$0.93 1
19 253463
FORK WITH CAPTIVE SCREW 		$50.60 1
20 84317700
SCREW 8 X 30
M8 X 25
IN STOCK 		$21.79 1
21 313202
BRACKET 		$32.89 1
22 265771
BRACKET 		$1.94 1
23 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
24 61712500
BRACKET WITH SHEATH
IN STOCK 		$1.53 1
25 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
26 313182
REAR WATER DELIVERY PIPE 		$759.24 1
27 322932
BRACKET 		$36.69 1
28 313181
REAR WATER RETURN PIPE 		$506.16 1
29 248334
SCREW
M6 X 12
IN STOCK 		$0.58 2
30 281462
COMPL. WATER RETURN PIPE 		$354.30 1
31 142060
BRACKET 		$5.98 1
32 262111
SCREW CLAMP 		$1.39 7
33 291225
P clip Bracket With Sheath
IN STOCK 		$4.82 1
34 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
35 248454
BRACKET WITH SHEATH 		$6.75 4
36 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
37 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
38 266783
BRACKET 		$14.79 2
39 14059290
FLANGED NUT M6
IN STOCK 		$1.31 4
40 336732
ENGINE COMPARTMENT WATER DELIVERY PIPE 		$392.27 1
41 264447
TOROID RING 		$0.26 1
42 231619
SCREW
M6 X 22
IN STOCK 		$0.29 2
43 327733
FRONT WATER RETURN HOSE 		$123.99 1
44 291225
P clip Bracket With Sheath
IN STOCK 		$4.82 1
45 86574700
SCREW
M6 X 16 		$0.61 1
46 273830
BRACKET 		$37.95 1
47 231619
SCREW
M6 X 18
IN STOCK 		$0.29 1
48 10442190
BRACKET WITH SHEATH
IN STOCK 		$0.67 (70.2% off) 1
49 248334
SCREW
M6 X 12
IN STOCK 		$0.58 1
50 14498801
WASHER
IN STOCK 		$0.11 (45% off) 4
51 281461
COMPL. WATER DELIVERY PIPE 		$287.04 1
