Ferrari GTC4Lusso T - COOLING - RADIATORS AND AIR DUCTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
323222 WATER RADIATOR $1,054.22 IN STOCK
Photo Part No Description Price (each) Stock
240589 Air Conditioning Condenser $1,047.43 To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $28.33 IN STOCK
Photo Part No Description Price (each) Stock
333888 LOWER RH BRACKET $75.55 To Order
Photo Part No Description Price (each) Stock
333889 LOWER LH BRACKET $75.55 To Order
Photo Part No Description Price (each) Stock
299048 COMPL. ELECTRIC FAN COWL $1,791.07 To Order
Photo Part No Description Price (each) Stock
15699804 SCREW $0.17 IN STOCK
Photo Part No Description Price (each) Stock
323233 POWER STEERING FLUID COOLING COIL $327.47 To Order
Photo Part No Description Price (each) Stock
323388 CLIP $2.60 To Order
Photo Part No Description Price (each) Stock
310623 UPPER RH CONDENSER BRACKET $20.14 To Order
Photo Part No Description Price (each) Stock
294680 UPPER LH CONDENSER BRACKET $25.17 To Order
Photo Part No Description Price (each) Stock
310624 LOWER RH CONDENSER BRACKET $31.47 To Order
Photo Part No Description Price (each) Stock
310626 LOWER LH CONDENSER BRACKET $31.47 To Order
Photo Part No Description Price (each) Stock
829172 SCREW $1.34 To Order
Photo Part No Description Price (each) Stock
235734 RUBBER SHIM $11.45 To Order
Photo Part No Description Price (each) Stock
14304287 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
16285227 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
307674 RADIATOR MOUNTING BUSH $7.53 IN STOCK
Photo Part No Description Price (each) Stock
305196 MOUNTING $57.92 IN STOCK
Photo Part No Description Price (each) Stock
315206 RH UPPER RADIATOR MOUNTING BRACKET $64.22 To Order
315207 LH UPPER RADIATOR MOUNTING BRACKET $45.33 To Order
Photo Part No Description Price (each) Stock
82271400 SCREW $1.12 IN STOCK
Photo Part No Description Price (each) Stock
319231 WATER DELIVERY HOSE ON ENGINE $70.53 To Order
Photo Part No Description Price (each) Stock
319232 WATER RETURN HOSE ON ENGINE $66.74 To Order
Photo Part No Description Price (each) Stock
337707 WATER DELIVERY/RETURN METAL UNION $466.02 To Order
Photo Part No Description Price (each) Stock
319234 WATER DELIVERY HOSE ON RADIATOR $55.40 To Order
Photo Part No Description Price (each) Stock
337708 WATER RETURN HOSE ON RADIATOR $56.66 To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR $0.70 IN STOCK
Photo Part No Description Price (each) Stock
262114 HOSE CLAMP $1.05 IN STOCK
Photo Part No Description Price (each) Stock
296781 PIPE CLAMP 30-45MM $7.72 IN STOCK
Photo Part No Description Price (each) Stock
304373 WATER THERMOSTAT HOUSING $415.63 To Order
Photo Part No Description Price (each) Stock
262913 THERMOSTAT/PRESSURE SWITCH $247.27 ARRIVING SOON
Photo Part No Description Price (each) Stock
336037 COMPL. PIPE FROM ENGINE TO PUMP $163.73 To Order
Photo Part No Description Price (each) Stock
295159 GASKET $11.29 IN STOCK
Photo Part No Description Price (each) Stock
332668 RUBBER SHIM $1.09 To Order
Photo Part No Description Price (each) Stock
829544 WASHER $0.21 To Order
View All

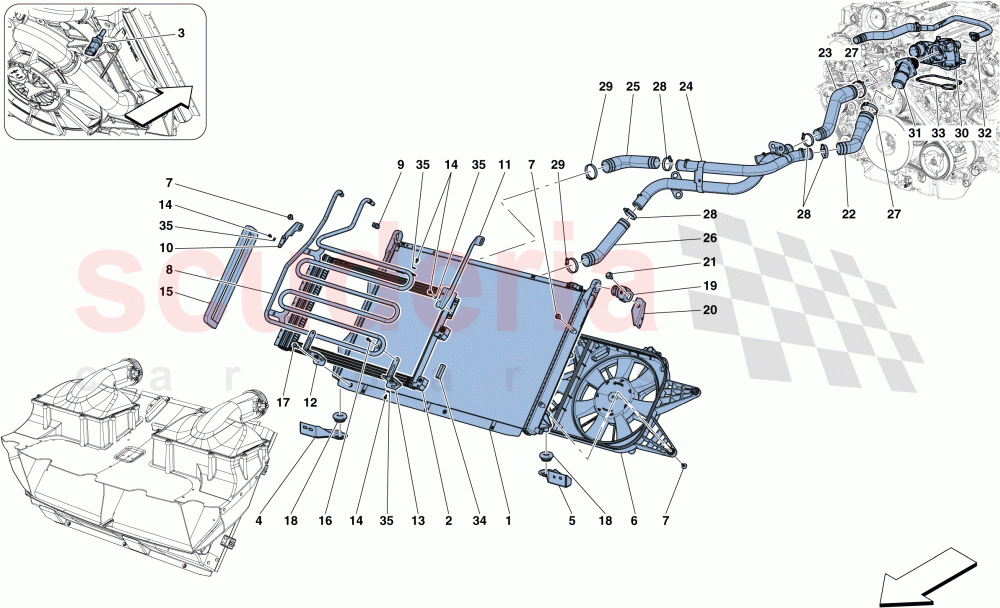

COOLING - RADIATORS AND AIR DUCTS of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 323222
WATER RADIATOR
IN STOCK 		$1,054.22 1
2 240589
Air Conditioning Condenser 		$1,047.43 (35.2% off) 1
3 180137
TEMPERATURE SENSOR
IN STOCK 		$28.33 (14.1% off) 2
4 333888
LOWER RH BRACKET 		$75.55 1
5 333889
LOWER LH BRACKET 		$75.55 1
6 299048
COMPL. ELECTRIC FAN COWL 		$1,791.07 1
7 15699804
SCREW
IN STOCK 		$0.17 5
8 323233
POWER STEERING FLUID COOLING COIL 		$327.47 1
9 323388
CLIP 		$2.60 2
10 310623
UPPER RH CONDENSER BRACKET 		$20.14 1
11 294680
UPPER LH CONDENSER BRACKET 		$25.17 1
12 310624
LOWER RH CONDENSER BRACKET 		$31.47 1
13 310626
LOWER LH CONDENSER BRACKET 		$31.47 1
14 829172
SCREW 		$1.34 10
15 235734
RUBBER SHIM 		$11.45 1
16 14304287
SCREW
M5 X 16
IN STOCK 		$0.32 2
17 16285227
SCREW
M5 X 20
IN STOCK 		$0.30 2
18 307674
RADIATOR MOUNTING BUSH
IN STOCK 		$7.53 2
19 305196
MOUNTING
IN STOCK 		$57.92 2
20 315206
RH UPPER RADIATOR MOUNTING BRACKET 		$64.22 1
20 315207
LH UPPER RADIATOR MOUNTING BRACKET 		$45.33 1
21 82271400
SCREW
M8 X 25
IN STOCK 		$1.12 2
22 319231
WATER DELIVERY HOSE ON ENGINE 		$70.53 1
23 319232
WATER RETURN HOSE ON ENGINE 		$66.74 1
24 337707
WATER DELIVERY/RETURN METAL UNION 		$466.02 1
25 319234
WATER DELIVERY HOSE ON RADIATOR 		$55.40 1
26 337708
WATER RETURN HOSE ON RADIATOR 		$56.66 1
27 13000790
SCREW COLLAR
IN STOCK 		$0.70 (68.9% off) 2
28 262114
HOSE CLAMP
IN STOCK 		$1.05 4
29 296781
PIPE CLAMP 30-45MM
IN STOCK 		$7.72 2
30 304373
WATER THERMOSTAT HOUSING 		$415.63 1
31 262913
THERMOSTAT/PRESSURE SWITCH
ARRIVING SOON 		$247.27 (31.4% off) 1
32 336037
COMPL. PIPE FROM ENGINE TO PUMP 		$163.73 1
33 295159
GASKET
Also comes with engine gasket set
IN STOCK 		$11.29 1
34 332668
RUBBER SHIM 		$1.09 2
35 829544
WASHER 		$0.21 10
