Ferrari F50 - LUBRICATION SYSTEM - RADIATOR, BLOW-BY SYSTEM AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
167898 AIR OIL DISAREATOR $3,003.19 To Order
Photo Part No Description Price (each) Stock
165171 COMPLETE OIL LEVEL ROD $267.97 IN STOCK
Photo Part No Description Price (each) Stock
167052 OIL LEVEL ROD $302.19 To Order
Photo Part No Description Price (each) Stock
100862 NUT $4.01 To Order
Photo Part No Description Price (each) Stock
12603874 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
180585 Oil Tank Cap Gasket $89.14 IN STOCK
Photo Part No Description Price (each) Stock
153928 OIL PLUG $148.07 To Order
Photo Part No Description Price (each) Stock
231629 SCREW $0.61 IN STOCK
Photo Part No Description Price (each) Stock
167171 SCREW $30.30 To Order
Photo Part No Description Price (each) Stock
12034574 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
161619 GASKET $15.69 To Order
Photo Part No Description Price (each) Stock
128016 CONNECTOR $10.53 To Order
Photo Part No Description Price (each) Stock
165557 RUBBER HOSE $32.63 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.39 IN STOCK
Photo Part No Description Price (each) Stock
163067 PIPE FROM R.H. AIRCHAMBERS $313.65 To Order
Photo Part No Description Price (each) Stock
898271 GASKET $33.99 IN STOCK
Photo Part No Description Price (each) Stock
162767 UNION $39.27 To Order
Photo Part No Description Price (each) Stock
162799 HOSE FROM RADIATOR TO SEPARETOR $1,775.51 To Order
Photo Part No Description Price (each) Stock
159976 OIL RADIATOR $1,885.76 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.53 To Order
Photo Part No Description Price (each) Stock
64164400 SMALL BLOCK $0.27 To Order
Photo Part No Description Price (each) Stock
64164500 SPACER $0.12 To Order
Photo Part No Description Price (each) Stock
12648925 WASHER $0.35 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
161726 COMPLETE ELECTROFAN $423.07 To Order
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
11635721 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
167475 TEMPERATURE SWITCH 110ร‚ยฐ - 100ร‚ยฐ C $31.06 To Order
Photo Part No Description Price (each) Stock
162824 TUBE TO RIADIATOR $1,618.94 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
12639704 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
162827 PIPE FROM TANK TO PUMP $2,082.25 To Order
Photo Part No Description Price (each) Stock
16100921 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
12604474 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
163631 OIL RETURN TUBE $949.20 To Order
Photo Part No Description Price (each) Stock
163630 OIL DELIVERY TUBE $997.27 To Order
Photo Part No Description Price (each) Stock
134988 UNION $423.07 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.32 IN STOCK
Photo Part No Description Price (each) Stock
166939 PIPE $35.56 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.72 IN STOCK
Photo Part No Description Price (each) Stock
163069 3 WAY VENT PIPE $145.04 To Order
Photo Part No Description Price (each) Stock
166940 SLEEVE $69.00 To Order
Photo Part No Description Price (each) Stock
168456 RUBBER HOSE $3.22 To Order
Photo Part No Description Price (each) Stock
64690300 RADIATOR PROTECTION NET $209.53 To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
62765800 ANTI-VIBRATIONS $1.45 To Order
Photo Part No Description Price (each) Stock
167405 GASKET $3.01 To Order
Photo Part No Description Price (each) Stock
862084 GASKET $4.91 To Order
Photo Part No Description Price (each) Stock
140071 O-RING 3 X 3 X 1 $0.56 IN STOCK
View All

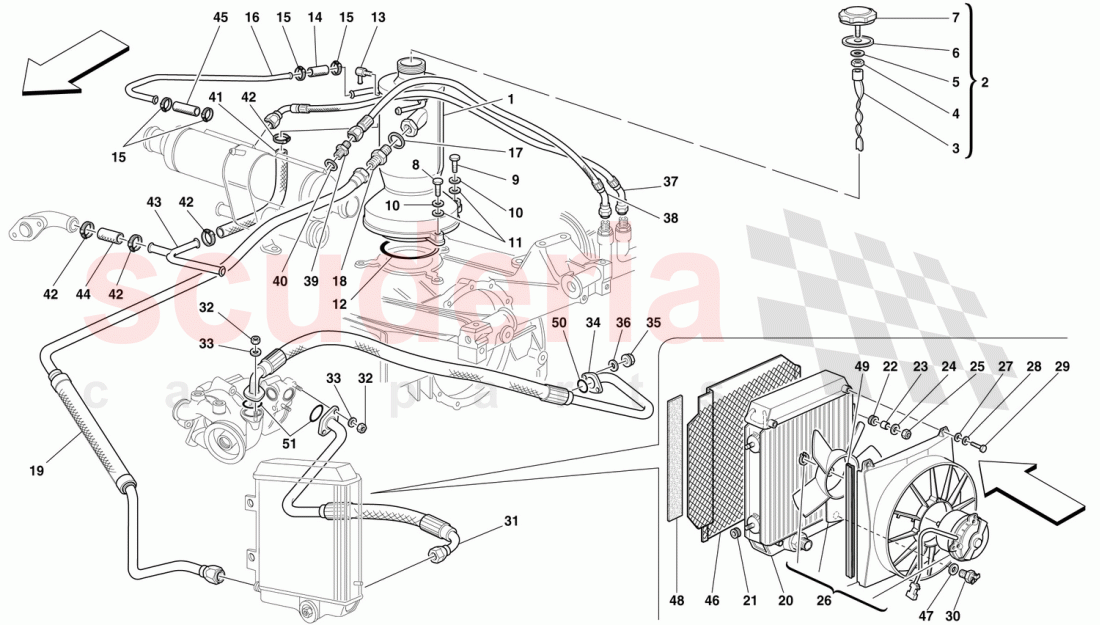

LUBRICATION SYSTEM - RADIATOR, BLOW-BY SYSTEM AND PIPES of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 145471
PIPE FROM L.H. AIRCHAMBERS 		$347.52 1
1 167898
AIR OIL DISAREATOR 		$3,003.19 1
2 165171
COMPLETE OIL LEVEL ROD
IN STOCK 		$267.97 1
3 167052
OIL LEVEL ROD 		$302.19 1
4 100862
NUT 		$4.01 (51.3% off) 1
5 12603874
WASHER 		$0.06 1
6 180585
Oil Tank Cap Gasket
IN STOCK 		$89.14 (21.5% off) 1
7 153928
OIL PLUG 		$148.07 1
8 231629
SCREW
IN STOCK 		$0.61 (35.8% off) 2
9 167171
SCREW 		$30.30 1
10 12034574
WASHER 		$0.03 3
11 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 3
12 161619
GASKET 		$15.69 1
13 128016
CONNECTOR 		$10.53 1
14 165557
RUBBER HOSE 		$32.63 (56.2% off) 2
15 262111
JUBILEE CLAMP
IN STOCK 		$1.39 6
16 163067
PIPE FROM R.H. AIRCHAMBERS 		$313.65 1
17 898271
GASKET
IN STOCK 		$33.99 1
18 162767
UNION 		$39.27 1
19 162799
HOSE FROM RADIATOR TO SEPARETOR
SEPARETOR 		$1,775.51 1
20 159976
OIL RADIATOR 		$1,885.76 1
21 812273
CABLE GROMMET 		$1.53 2
22 64164400
SMALL BLOCK 		$0.27 2
23 64164500
SPACER 		$0.12 2
24 12648925
WASHER
IN STOCK 		$0.35 2
25 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
26 161726
COMPLETE ELECTROFAN 		$423.07 1
27 12639724
WASHER
IN STOCK 		$0.05 (90% off) 4
28 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 4
29 11635721
SCREW 		$0.35 4
30 167475
TEMPERATURE SWITCH 110ร‚ยฐ - 100ร‚ยฐ C 		$31.06 1
31 162824
TUBE TO RIADIATOR 		$1,618.94 1
32 14059290
FLANGED NUT M6
IN STOCK 		$1.31 4
33 12639704
WASHER 		- 4 Enquire
34 162827
PIPE FROM TANK TO PUMP 		$2,082.25 1
35 16100921
NUT 		$0.41 2
36 12604474
WASHER
IN STOCK 		$0.06 (40% off) 2
37 163631
OIL RETURN TUBE 		$949.20 1
38 163630
OIL DELIVERY TUBE 		$997.27 1
39 134988
UNION 		$423.07 2
40 10261460
COPPER WASHER 16 X 24 X 1.5
IN STOCK 		$0.32 (68% off) 2
41 166939
PIPE 		$35.56 1
42 13000490
Screw Collar
IN STOCK 		$0.72 (62.1% off) 6
43 163069
3 WAY VENT PIPE 		$145.04 1
44 166940
SLEEVE 		$69.00 2
45 168456
RUBBER HOSE 		$3.22 2
46 64690300
RADIATOR PROTECTION NET 		$209.53 1
47 10280060
WASHER COPPER D14. 20 X 1.5
IN STOCK 		$0.20 (80% off) 1
48 62765800
ANTI-VIBRATIONS 		$1.45 (60.8% off) 2
49 167405
GASKET 		$3.01 2
50 862084
GASKET 		$4.91 1
51 140071
O-RING 3 X 3 X 1
IN STOCK 		$0.56 (81% off) 2
