Ferrari F50 - TIMING - CONTROLS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
165976 CONTROL TIMING GEAR $221.26 To Order
Photo Part No Description Price (each) Stock
165919 GEAR ASSEMBLY $396.78 To Order
Photo Part No Description Price (each) Stock
154171 TOOTHED WHEEL $732.44 To Order
Photo Part No Description Price (each) Stock
159835 KEY $6.61 To Order
Photo Part No Description Price (each) Stock
163016 ROLLER CAGE $7.23 To Order
Photo Part No Description Price (each) Stock
165788 ROLLER CASING $31.59 To Order
Photo Part No Description Price (each) Stock
106203 CENTERING DOWEL $6.70 To Order
Photo Part No Description Price (each) Stock
146540 SCREW $4.60 To Order
Photo Part No Description Price (each) Stock
117274 WASHER $3.34 To Order
Photo Part No Description Price (each) Stock
114808 O-Ring $4.08 IN STOCK
Photo Part No Description Price (each) Stock
162887 PIN $134.45 To Order
Photo Part No Description Price (each) Stock
111000 O.R. GASKET $1.22 To Order
Photo Part No Description Price (each) Stock
11059776 Seeger Ring $0.29 To Order
Photo Part No Description Price (each) Stock
166446 SPACER WASHER $10.63 To Order
Photo Part No Description Price (each) Stock
158173 GUIDE SHOE ASSEMBLY $1,038.25 To Order
Photo Part No Description Price (each) Stock
152502 CHAIN TENSIONER $434.44 To Order
Photo Part No Description Price (each) Stock
10261860 GASKET $0.43 IN STOCK
Photo Part No Description Price (each) Stock
151784 TIMING CONTROL CHAIN $39.19 To Order
Photo Part No Description Price (each) Stock
158175 UPPER GUIDE SHOE BASE Enquire To Order
Photo Part No Description Price (each) Stock
158176 UPPER SLIDE GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
152640 PIN FOR FIXED GUIDE SHOE $54.26 To Order
Photo Part No Description Price (each) Stock
154172 COMPENSATOR RING $5.41 To Order
Photo Part No Description Price (each) Stock
152639 PIN FOR MOBILE GUIDE SHOE $46.72 To Order
Photo Part No Description Price (each) Stock
11057576 SEEGER RING $0.05 To Order
Photo Part No Description Price (each) Stock
137192 O-RING $0.34 IN STOCK
Photo Part No Description Price (each) Stock
158077 MOBILE GUIDE SHOE BASE $460.42 To Order
Photo Part No Description Price (each) Stock
158078 MOBILE GUIDE SHOE $156.65 To Order
Photo Part No Description Price (each) Stock
169203 SPACER WASHER $12.31 To Order
View All

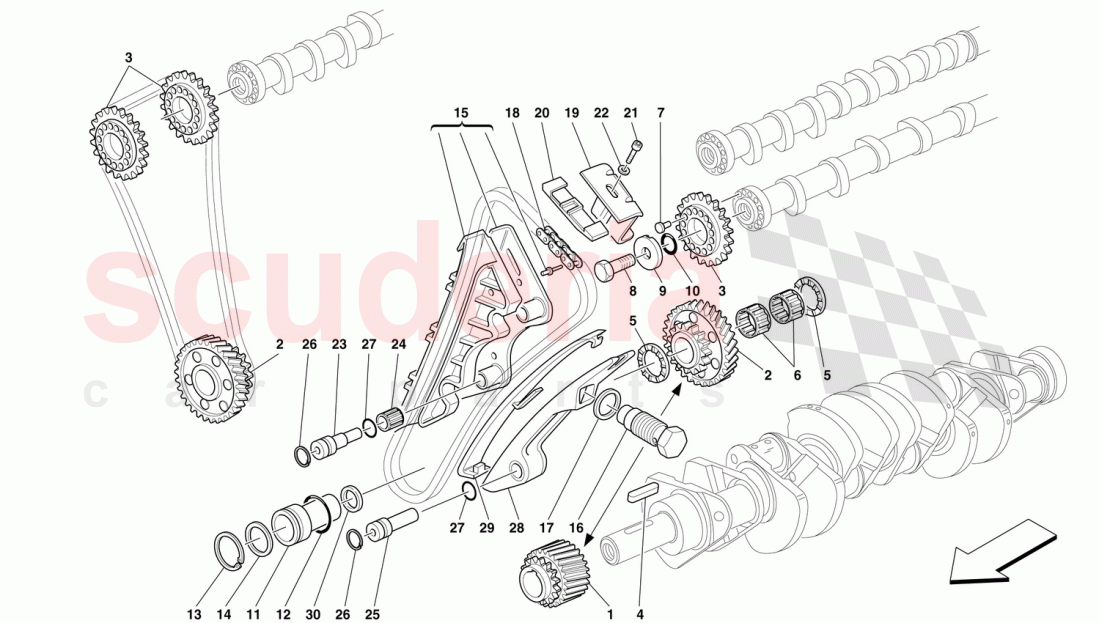

TIMING - CONTROLS of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 169207
SPACER WASHER
Th. mm. 1,50 		$6.37 2
- 169205
SPACER WASHER
Th. mm. 1,40 		$12.31 2
- 170801
SPACER WASHER
Th. mm. 1,425 		$36.95 2
- 169206
SPACER WASHER
Th. mm. 1,45 		$10.75 2
- 170802
SPACER WASHER
Th. mm. 1,475 		$36.95 2
- 170799
SPACER WASHER
Th. mm. 1,325 		$36.95 2
- 169204
SPACER WASHER
Th. mm. 1,35 		$10.75 2
- 170800
SPACER WASHER
Th. mm. 1,375 		$36.95 2
- 164348
SPACER WASHER
Th. mm. 0,60 		$5.73 2
- 164297
SPACER WASHER
Th. mm. 0,50 		$7.05 2
- 164347
SPACER WASHER
Th. mm. 0,55 		$10.63 2
1 165976
CONTROL TIMING GEAR 		$221.26 1
2 165919
GEAR ASSEMBLY 		$396.78 2
3 154171
TOOTHED WHEEL 		$732.44 4
4 159835
KEY 		$6.61 1
5 163016
ROLLER CAGE 		$7.23 4
6 165788
ROLLER CASING 		$31.59 4
7 106203
CENTERING DOWEL 		$6.70 (36.2% off) 4
8 146540
SCREW 		$4.60 (60% off) 4
9 117274
WASHER 		$3.34 4
10 114808
O-Ring
IN STOCK 		$4.08 (14.1% off) 4
11 162887
PIN 		$134.45 2
12 111000
O.R. GASKET 		$1.22 2
13 11059776
Seeger Ring 		$0.29 (73.6% off) 2
14 166446
SPACER WASHER
Th. mm. 0,45 		$10.63 2
15 158173
GUIDE SHOE ASSEMBLY 		$1,038.25 2
16 152502
CHAIN TENSIONER 		$434.44 2
17 10261860
GASKET
IN STOCK 		$0.43 (57% off) 2
18 151784
TIMING CONTROL CHAIN 		$39.19 2
19 158175
UPPER GUIDE SHOE BASE 		- 2 Enquire
20 158176
UPPER SLIDE GUIDE 		- 2 Enquire
21 14304124
SCREW 		$0.14 (81.3% off) 4
22 12601174
WASHER 		$0.06 (82.9% off) 4
23 152640
PIN FOR FIXED GUIDE SHOE 		$54.26 4
24 154172
COMPENSATOR RING 		$5.41 4
25 152639
PIN FOR MOBILE GUIDE SHOE 		$46.72 2
26 11057576
SEEGER RING 		$0.05 6
27 137192
O-RING
IN STOCK 		$0.34 (32% off) 7
28 158077
MOBILE GUIDE SHOE BASE 		$460.42 2
29 158078
MOBILE GUIDE SHOE 		$156.65 2
30 169203
SPACER WASHER
Th. mm. 1,30 		$12.31 2
